SFI SYSTEM

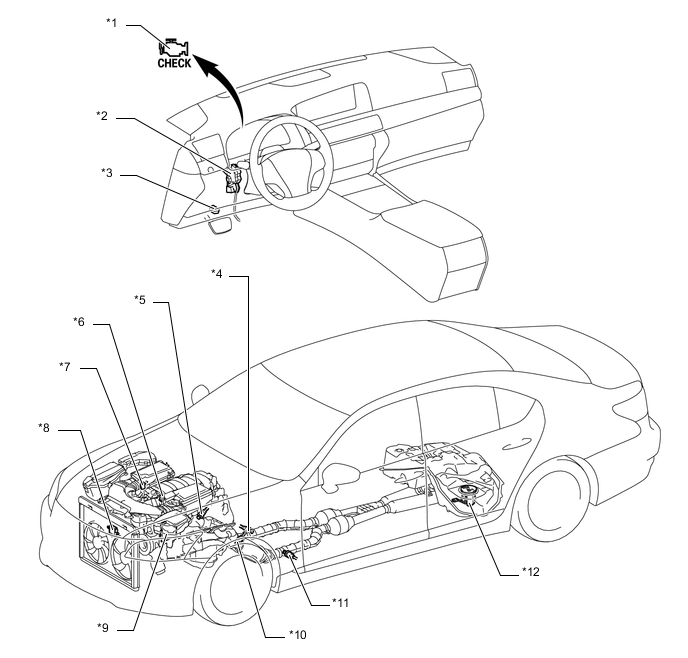

| *1 | MIL | *2 | Accelerator Pedal Sensor Assembly |
| *3 | DLC3 | *4 | Oxygen Sensor (Bank 2, Sensor 2) |
| *5 | Air Fuel Ratio Sensor (Bank 2, Sensor 1) | *6 | Intake Mass Air Flow Meter Sub-assembly (Bank 1) - Intake Air Temperature Sensor |
| *7 | Intake Mass Air Flow Meter Sub-assembly (Bank 2) - Intake Air Temperature Sensor |
*8 | Cooling Fan ECU |
| *9 | ECM | *10 | Air Fuel Ratio Sensor (Bank 1, Sensor 1) |
| *11 | Oxygen Sensor (Bank 1, Sensor 2) | *12 | Fuel Pump (for Low Pressure) |

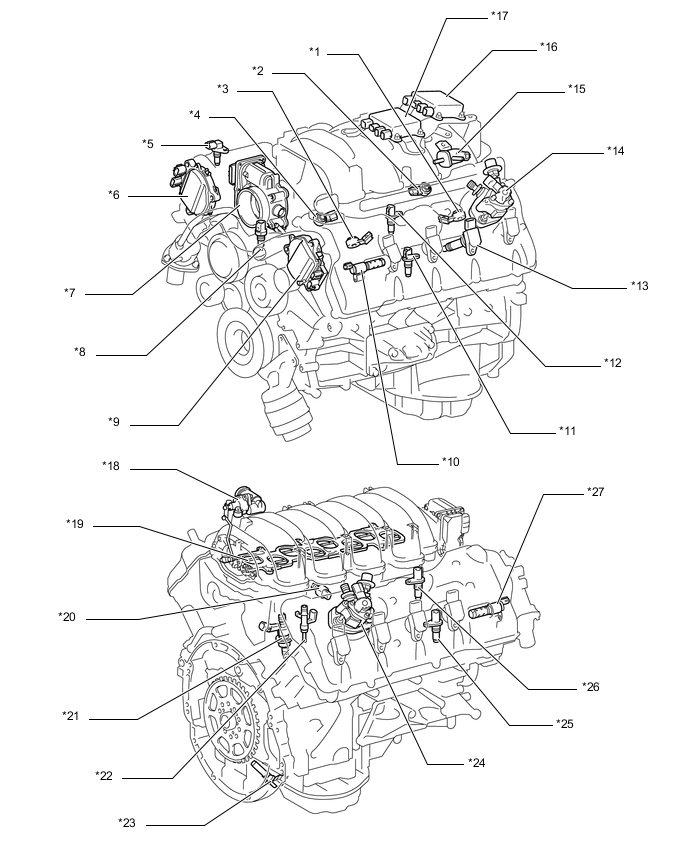

| *1 | Knock Control Sensor (Bank 1, Sensor 2) | *2 | Knock Control Sensor (Bank 2, Sensor 2) |
| *3 | Knock Control Sensor (Bank 1, Sensor 1) | *4 | Knock Control Sensor (Bank 2, Sensor 1) |
| *5 | Camshaft Position Sensor | *6 | Camshaft Control Motor (Bank 2) |
| *7 | Throttle Body - Throttle Position Sensor - Throttle Control Motor |
*8 | Engine Coolant Temperature Sensor |
| *9 | Camshaft Control Motor (Bank 1) | *10 | Camshaft Timing Oil Control Valve Bank 1 |
| *11 | Exhaust VVT Sensor (Bank 1) | *12 | Intake VVT Sensor (Bank 1) |
| *13 | Ignition Coil with Igniter | *14 | Fuel Pump (Bank 1) (for High Pressure) |
| *15 | Purge VSV | *16 | No. 2 Injector Driver (EDU) |
| *17 | No. 1 Injector Driver (EDU) | *18 | ACIS Actuator |
| *19 | Intake Air Control Valve | *20 | Fuel Pressure Sensor |
| *21 | Fuel Injector Assembly (for Direct Injection) | *22 | Fuel Injector Assembly (for Port Injection) |
| *23 | Crankshaft Position Sensor | *24 | Fuel Pump (Bank 2) (for High Pressure) |
| *25 | Exhaust VVT Sensor (Bank 2) | *26 | Intake VVT Sensor (Bank 2) |
| *27 | Camshaft Timing Oil Control Valve (Bank 2) | - | - |
