GARAGE DOOR OPENER SYSTEM GENERAL


  1. OUTLINE


    1. The garage door opener system enables a garage door or similar device to be opened or closed from inside the vehicle by operating one of the garage door opener switches that is provided in the roof console box assembly.

    2. Up to 3 transmitter codes can be registered in the garage door opener system.

    3. An LED is provided to enable the operator to verify the operation mode of the garage door opener system.

    4. Transmitter code based systems that use a rolling code are supported. An opener with the rolling code function changes the transmitter code each time the garage door opener switch is pressed. For details, refer to the Repair Manual.

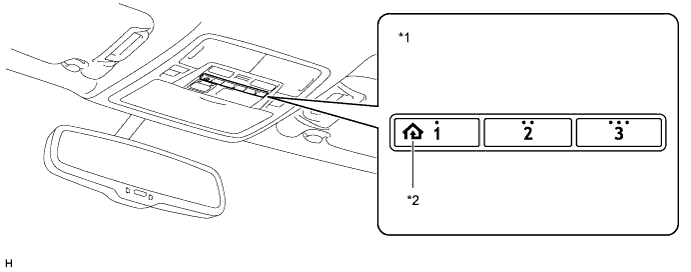

      A01HXCKE01
      Text in Illustration
      *1 Garage Door Opener Switch *2 LED Indicator Light
