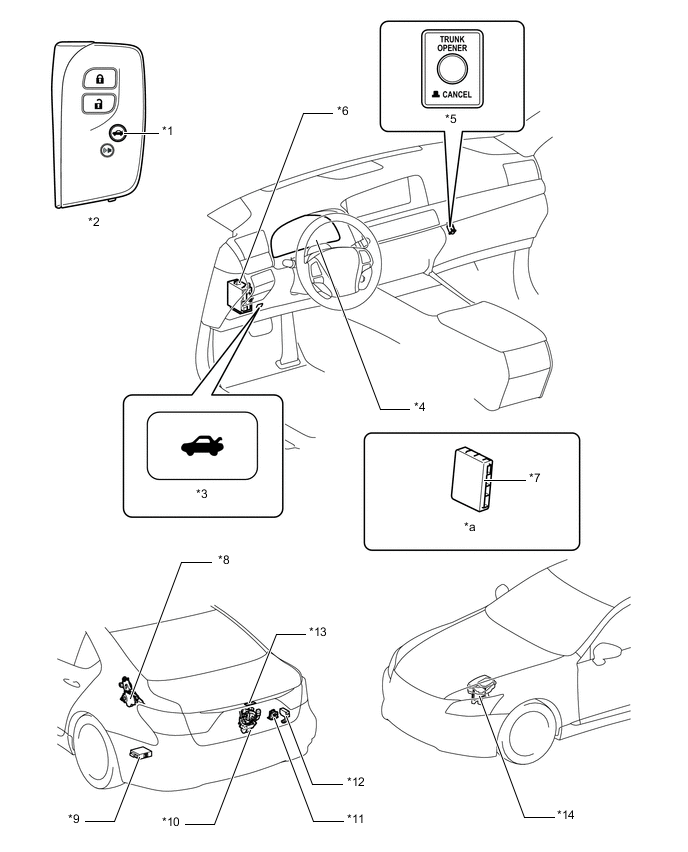

POWER TRUNK LID SYSTEM
| *1 | Luggage Compartment Door Opener Button | *2 | Electrical Key Transmitter Sub-assembly |
| *3 | Luggage Door Opening Switch | *4 | Combination Meter Assembly |
| *5 | Luggage Door Opening Cancel Switch | *6 | Main Body ECU (Driver Side Junction Block) |
| *7 | Certification ECU (Smart Key ECU Assembly) | *8 | Luggage Closer Motor Assembly - Power Trunk Lid ECU |
| *9 | Parking Brake ECU Assembly | *10 | Luggage Door Closer Assembly |
| *11 | Luggage Door Closer Switch | *12 | Door Control Receiver |
| *13 | Luggage Electrical Key Switch | *14 | ECM |
| *a | Refer to the Service Bulletin for the installation of the part. | - | - |
