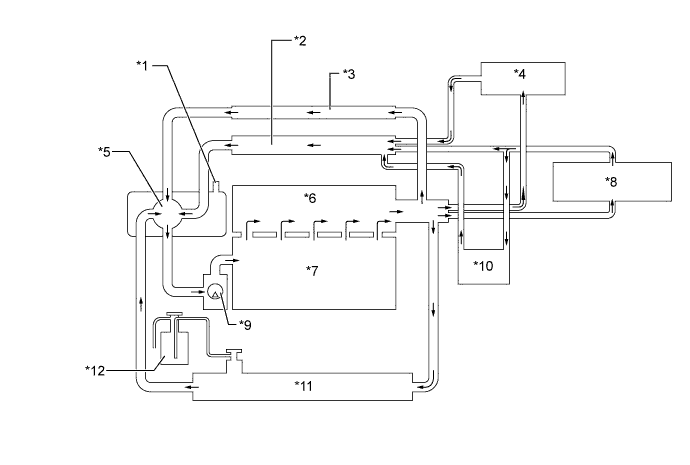

COOLING SYSTEM SYSTEM DIAGRAM
| *1 | Drain Cock Assembly (Air Bleed Valve) | *2 | Heater Return Pipe |
| *3 | By-pass Pipe | *4 | Throttle Body with Motor Assembly |
| *5 | Thermostat | *6 | Cylinder Head Sub-assembly |
| *7 | Cylinder Block Sub-assembly | *8 | Heater Radiator Unit Sub-assembly |
| *9 | Engine Water Pump Assembly | *10 | Transmission Oil Cooler |
| *11 | Radiator Assembly | *12 | Radiator Reserve Tank Assembly |
