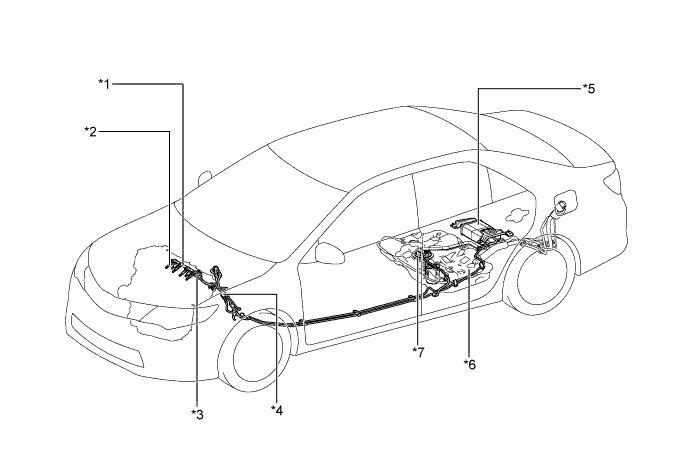

FUEL SYSTEM PARTS LOCATION
| *1 | Fuel Delivery Pipe Sub-assembly | *2 | Fuel Injector Assembly |
| *3 | Fuel Pressure Pulsation Damper Assembly | *4 | Quick Connector |
| *5 | Charcoal Canister Assembly | *6 | Fuel Tank Assembly |
| *7 | Fuel Suction Tube with Pump and Gauge Assembly - Fuel Filter Assembly - Fuel Pressure Regulator Assembly - Fuel Sender Gauge Assembly - Fuel Pump |
- | - |
