NEW FEATURES


  1. DESCRIPTION


    1. The 13CY model G-BOOK is used.

    2. G-BOOK is a telematics service that links the vehicle and G-BOOK network (provides information from the G-BOOK center or content providers).

    3. The user must follow the instructions displayed on the multi-display of the multi-media module receiver assembly to start using the telematics system service after applying for the service at a dealership.

      A01W65VE01

    4. The main features of the G-BOOK are as follows:

      Contents Outline
      Operator Service Destination Setting If requested by the user, a G-BOOK operator can search for information to set a destination.
      POI Guidance Provides POI information for facilities in the area around the present location or facilities around the destination.
      News and Weather Forecast Information Delivers news and weather forecast information as requested by the user.
      Navigation System Link Function* G Route Search Predicts the occurrence of or changes in traffic congestion on the route to the destination and provides the most suitable route based on the latest traffic information and past statistical data.
      Partial Update of Map Database The map database can be updated by downloading information such as new roads from the G-BOOK center.
      Searching for POIs on the WEB POI information, which was searched for on the Mapbar site, can be transferred to the navigation system.
      G-memory Point POI information, which was searched for using the contents of G-BOOK.com or a website, can be stored as a memory point in the navigation system.
      Other Function* MY Request News or weather forecast information can be requested by a simple operation.

      Tech Tips

      The above chart is one example of possible services. Also, services may be added, discontinued or changed in other ways.

      *: Service available when using a Wi-Fi connection.

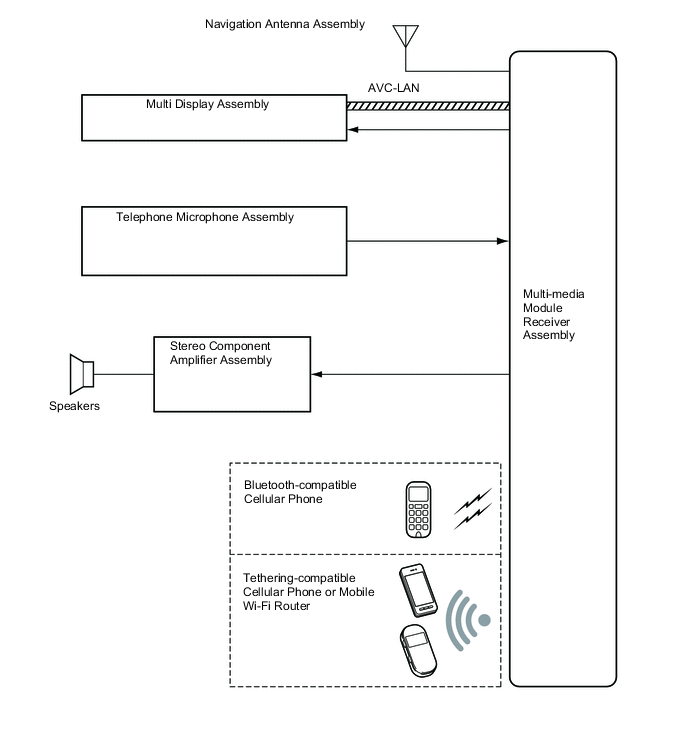

  2. SYSTEM DIAGRAM

    A01W6LFE01

  3. LAYOUT OF MAIN COMPONENTS

    A01W6ZLC01
    *1 Telephone Microphone Assembly *2 Stereo Component Amplifier Assembly
    *3 Telematics Transceiver (Data Communication Module) *4 Front No. 3 Speaker Assembly RH
    *5 Front No. 2 Speaker Assembly RH - -
    A01W71OC01
    *1 Multi-display Assembly *2 Multi-media Module Receiver Assembly
    *3 Navigation Antenna Assembly - -

  4. FUNCTION OF MAIN COMPONENTS

    Component Function
    Bluetooth-compatible Cellular Phone Sends and receives the data and voice signals used for the telematics system through a communication network using Bluetooth communication.
    Tethering-compatible Cellular Phone or Mobile Wi-Fi Router Sends and receives the data used for the telematics system through a communication network using Wi-Fi communication.
    Telephone Microphone Assembly Sends the microphone voice signal to the multi-media module receiver assembly.
    Navigation Antenna Assembly Receives GPS radio waves and sends them to the multi-media module receiver assembly.
    Multi-media Module Receiver Assembly

    • Uses a Bluetooth-compatible cellular phone to send and receive the data and voice signals used for the telematics system through a communication network.

    • Sends and receives telematics data used for the telematics system to and from the Bluetooth-compatible cellular phone using Bluetooth communication.


      • When the operator service is used: Sends the "sent voice signal" from the telephone microphone assembly to the Bluetooth-compatible cellular phone.

      • When the operator service is used: Sends the "received voice signal" from the Bluetooth-compatible cellular phone to the vehicle speakers.

    • Sends and receives telematics data used for the telematics system to and from the tethering-compatible cellular phone or mobile Wi-Fi router using Wi-Fi communication. (While Wi-Fi communication is used)
    Telematics Transceiver (Data Communication Module) Uses the telephone antenna assembly to send and receive the data and voice signals used for the G-BOOK system through a communication network.
    Multi-display assembly Displays signals received from the multi-media module receiver assembly and transmits the signals from various switches to the multi-media module receiver assembly.
    Stereo Component Amplifier Assembly Receives the "received voice signal" sent from the multi-media module receiver assembly as outputs it as sound from the vehicle speakers (when the operator service is used).

  5. FUNCTION


    1. Operator Service


      1. The operator service allows the user to directly call a G-BOOK center operator. The user can ask the operator to set a destination or send a POI facility search result or news and weather forecast information to the navigation system.

      2. The operator service uses the multi-media module receiver assembly to make calls via the following devices.


        • Cellular phone It is necessary to register the phone using the Bluetooth hands-free function.

          Function Outline
          Destination Setting Displays the specified destination location on the navigation system screen.
          Weather Forecast* Displays and reads out weather forecast information for the vehicle's location, destination or a specified area.
          News* Displays and reads out news updates, society, sports and entertainment news.

          Tech Tips

          *: Using the browser content display function built into the navigation system, the following contents can be displayed. If news content is displayed, headlines are read out to assist the user in checking the content easily even while driving.

  6. NAVIGATION SYSTEM LINK FUNCTION


    1. The navigation system link function provides the navigation system with real-time information obtained from the G-BOOK center, offering more effective use of the navigation system for the user.

    2. The navigation system link function has the following functions:

      Function Outline
      G Route Search Searches for the most suitable route to the destination based on information about wide-area traffic congestion prediction.
      Partial Update of Map Database Partially updates map data in the navigation system by obtaining new road data or main POI data surrounding the current position or destinations from the G-BOOK center.
      Searching for POIs on the WEB Transfers POI information, which was searched for on the Mapbar site, to the navigation system. A found POI can be set as a destination or registered as a G-memory point.
      G-memory Point

      • When a POI is searched for using the contents of G-BOOK.com or a website, it can be registered as G-memory point of the memory points in the navigation system.

      • By registering POIs as a G-memory points, a list of G-memory points can be displayed without connecting to the G-BOOK center.

  7. OTHER FUNCTION


    1. The telematics system provides another function in consideration of improving usability.

    2. The other function is as follows:

      Function Outline
      MY Request Content which is frequently searched for, such as news or weather forecast information, can be registered. After registration, information can be obtained through a simple operation.

  8. DIAGNOSIS


    1. For details on the procedure required to enter the service menu screen, refer to the Repair Manual.
