NEW FEATURES


  1. DESCRIPTION


    1. Rear Seat Entertainment (RSE) system is used.

    2. A 11.6-inch Full HD (FHD) monitor is used for the television system.

    3. A rear VTR adapter that provides an HDMI adapter, VTR jack, headphone jacks and headphone volume control knobs is used on the console end panel.

      Tech Tips

      HDMI:

      A01W6YV HDMI (High-Definition Multimedia Interface) and HDMI marks are a trademark owned by HDMI Licensing LLC, registered in the U.S. and other countries, a nonprofit industry association.

  2. SYSTEM DIAGRAM

    A01W6XVE01

  3. LAYOUT OF MAIN COMPONENTS

    A01W5VSC01
    *1 RSE ECU *2 Multi-display Assembly
    *3 Multi-media Module Receiver Assembly *4 Television Display Assembly LH
    *5 Rear VTR Adapter *6 Television Display Assembly RH
    *7 Rear Switch and Volume Assembly *8

    • VTR Jack

    • HDMI Adapter
    *9 H/P Jack LH *10 H/P Jack RH
    A01W6I7C01
    *1 Front No. 4 Speaker Assembly *2 Front No. 3 Speaker Assembly LH
    *3 Front No. 2 Speaker Assembly LH *4 Front No. 1 Speaker Assembly LH
    *5 Rear No. 3 Speaker Assembly LH *6 Rear Speaker Set LH
    *7 Stereo Component Amplifier Assembly *8 Rear Header Speaker Assembly LH
    *9 Rear Header Speaker Assembly RH *10 No. 1 with Box Speaker Assembly
    *11 Rear Speaker Set RH *12 Rear No. 3 Speaker Assembly RH
    *13 Front No. 1 Speaker Assembly RH *14 Front No. 3 Speaker Assembly RH
    *15 Front No. 2 Speaker Assembly RH - -

  4. FUNCTION


    1. Operation from Front Seats

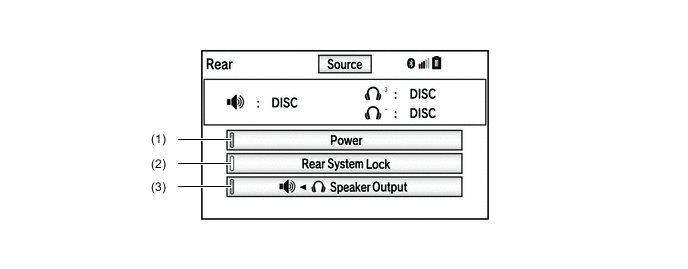

      1. The rear seat display can be operated from the "Rear" screen

        A01W6V5E01
        (1) Turns the rear screen on or off.
        (2) Locks the system so passengers in the rear seats cannot operate the rear entertainment system.
        (3) When the "Speaker Output" is turned on, the rear seat entertainment system can be operated in link with the front audio/visual system.

    2. Independent Rear Seat Operation


      1. If "Speaker Output" is turned off, different contents from the front seat navigation system can be selected.

      2. When different contents from the front seat are selected, only headphones can be used to listen to the rear seat audio.

      3. When a VTR/HDMI device is connected, different contents can be selected on the left and right side displays.

        Note

        When the same source is used for the front seat navigation system and rear seat display, the front seat navigation system and rear seat display cannot be operated independently.

  5. CONSTRUCTION


    1. Television Display

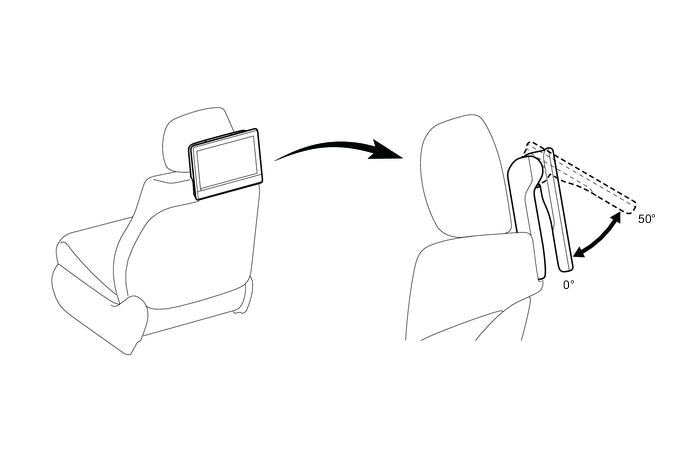

      1. The angle of the television display assembly can be adjusted when it is difficult to see the screen, etc. Also, the maximum adjustment angle of the television display assembly is 50 degrees.

        A01W6WNE01

    2. Rear VTR Adapter


      1. An HDMI adapter, VTR jack, headphone jacks and headphone volume control knobs are provided on the rear VTR adapter.

      2. Video is displayed when a VTR/HDMI device is connected to the VTR jack or HDMI adapter

        A01W6M9C01
        *1 Headphone Volume Control Knob LH *2 Headphone Volume Control Knob RH
        *3 H/P Jack LH *4

        • VTR Jack

        • HDMI Adapter
        *5 H/P Jack RH - -
