WIPER AND WASHER SYSTEM


  1. STOPPED VEHICLE INTERMITTENT WIPER FUNCTION


    1. When the wiper switch is changed to the LO position while the vehicle is stopped, the wiper operates three times in LO. It then switches automatically to an intermittent operation with an interval time of approximately 2.5 seconds.

    2. When the automatic control adjuster is in the FAST position, the wiper operates in LO when the vehicle is stopped.

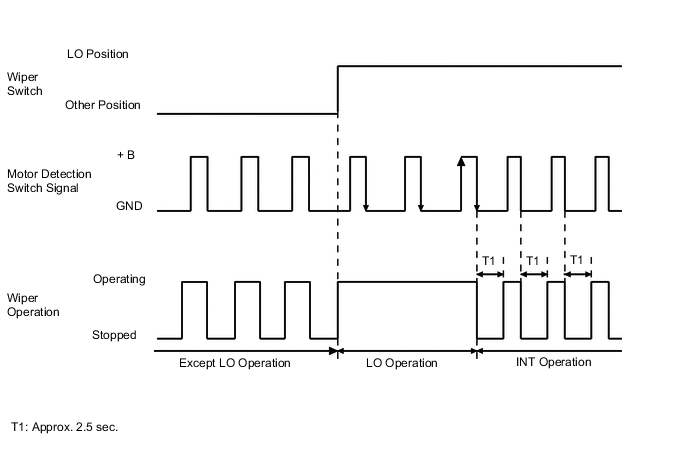

      Figure 1. Timing Chart

      A01W5Z4E01
