NEW FEATURES

DESCRIPTION

Google Sync Function (Models for Europe)

1. The Google sync function is supported, enabling the user to view and operate the following Google-provided web services on the navigation system. It is required to access the internet from a tethering-compatible cellular phone or mobile Wi-Fi router, which is connected to the multi-media module receiver assembly via Bluetooth or Wi-Fi communication.

2. Google street view shows panoramic images along streets. The street view of the desired location can be downloaded to the multi-media module receiver assembly and displayed on the multi-display assembly.

3. Panoramio Photo sharing site (photos are provided with location information and comments). The panoramio photos of the desired location can be downloaded to the multimedia module receiver assembly and displayed on the multi-display assembly. Due to location information contained in the photos, it is possible to set a certain point in the displayed photo as a destination.

Wi-Fi Communication (Models for Europe and China)

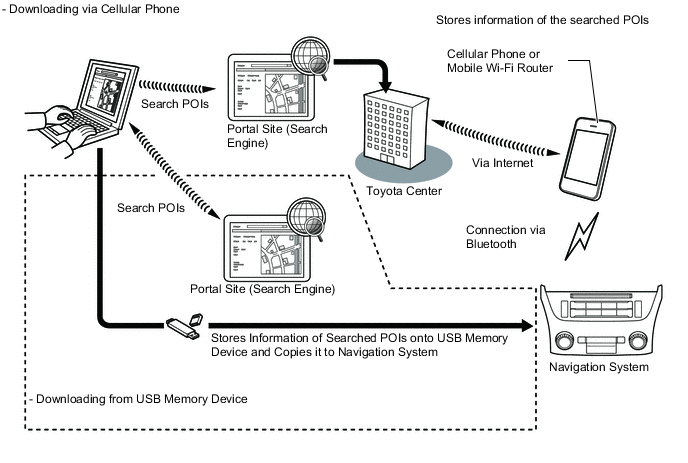

Connected Services (Models for Europe)

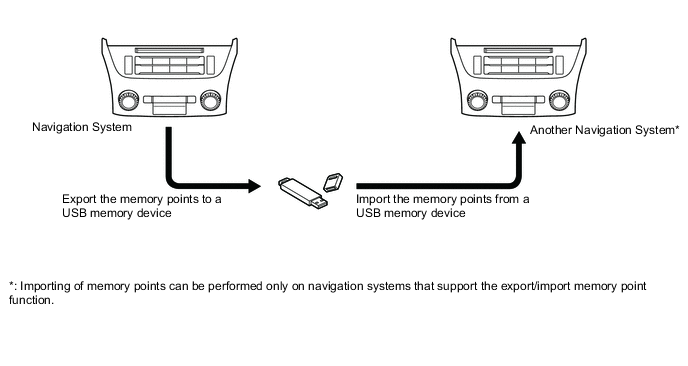

Export/Import Memory Point Function

Voice Recognition System

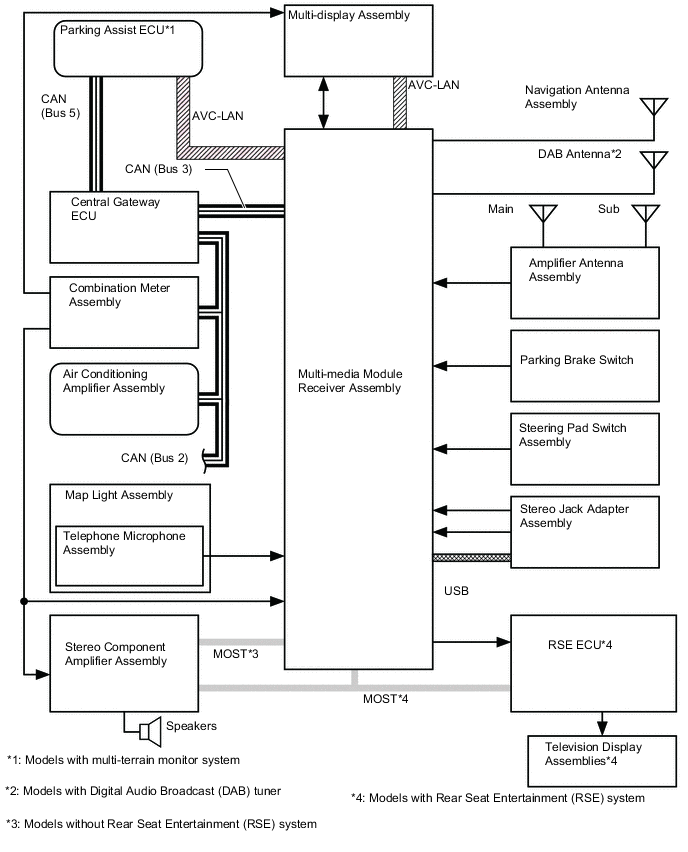

SYSTEM DIAGRAM

*1: Models with multi-terrain monitor system

*2: Models with Digital Audio Broadcast (DAB) Tuner

*3: Models without Rear Seat Entertainment (RSE) system

*4: Models with Rear Seat Entertainment (RSE) system

LAYOUT OF MAIN COMPONENTS

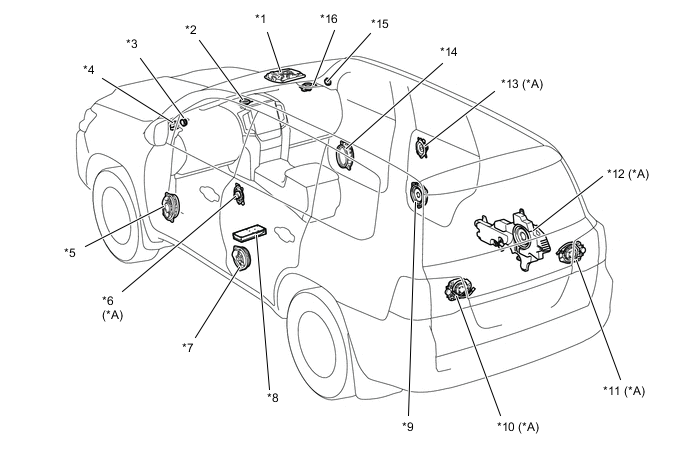

*A	Models with 14-speaker System	-	-
*1	Map Light Assembly Telephone Microphone Assembly	*2	Front No. 4 Speaker Assembly
*3	Front No. 3 Speaker Assembly LH	*4	Front No. 2 Speaker Assembly LH
*5	Front No. 1 Speaker Assembly LH	*6	Rear No. 3 Speaker Assembly LH
*7	Rear Speaker Set LH	*8	Stereo Component Amplifier Assembly
*9	Rear Speaker Set RH	*10	Rear Header Speaker Assembly LH
*11	Rear Header Speaker Assembly RH	*12	No. 1 with Box Speaker Assembly
*13	Rear No. 3 Speaker Assembly RH	*14	Front No. 1 Speaker Assembly RH
*15	Front No. 3 Speaker Assembly RH	*16	Front No. 2 Speaker Assembly RH

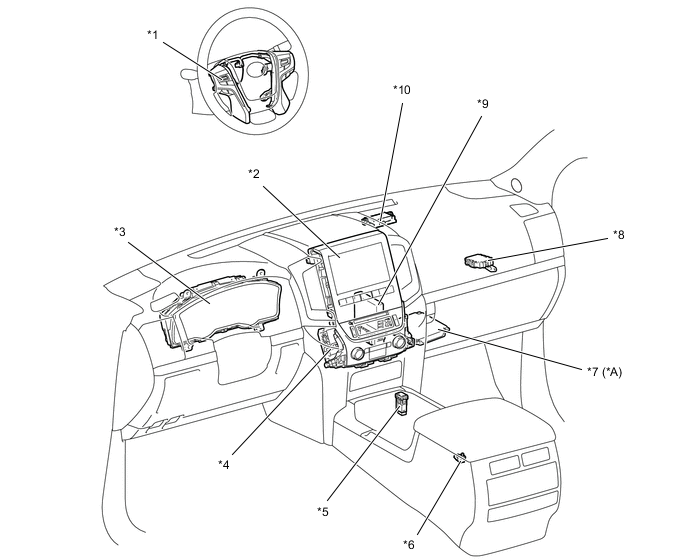

*A	Models with Multi-terrain Monitor System	-	-

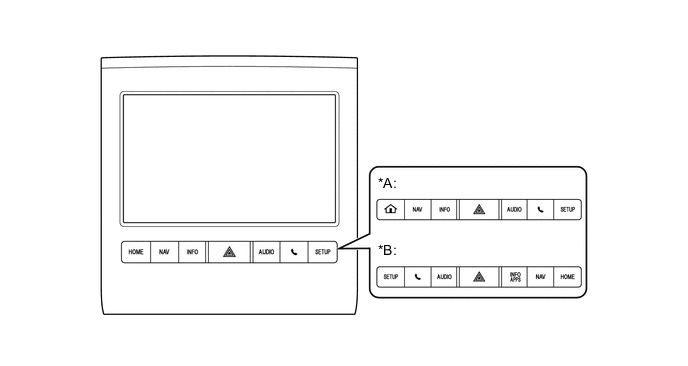

*1	Steering Pad Switch Assembly	*2	Multi-display Assembly
*3	Combination Meter Assembly	*4	Multi-media Module Receiver Assembly
*5	Stereo Jack Adapter Assembly	*6	Parking Brake Switch
*7	Parking Assist ECU	*8	Central Gateway ECU
*9	Air Conditioning Amplifier Assembly	*10	Navigation Antenna Assembly

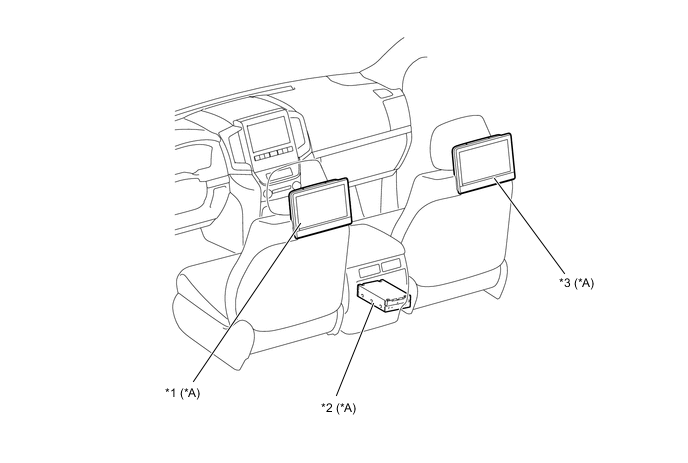

*A	Models with Rear Seat Entertainment (RSE) System	-	-
*1	Television Display Assembly LH	*2	RSE ECU
*3	Television Display Assembly RH	-	-

FUNCTION

Navigation Screen

1. The navigation computer calculates the present position and direction of travel, then determines a route and calculates the driving distance based on the following information sources:

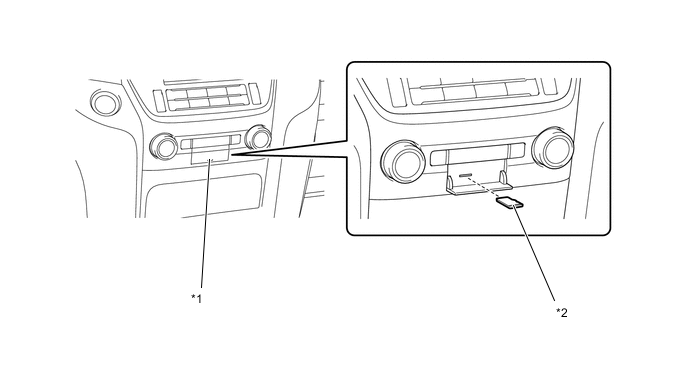

   1. Map data in the microSD card (disc player disc)

   2. Global Positioning System (GPS) satellites

   3. Built-in gyro sensor

   4. Vehicle speed signal

   5. Reverse signal

   6. Parking brake signal

   7. Radio Data System Traffic Message Channel (RDS-TMC) and Transport Protocol Experts Group (TPEG) signal (Models for Europe)

   8. Radio Data System Traffic Message Channel (RDS-TMC) signal (Except models for Europe and China)

   9. Real-time Traffic Information of China (RTIC) signal (Models for China)

      Item		Function
      Map Display	Taillight-interlocked Map Color Change	Changes the color of the map screen that is displayed when the taillights are turned on.
      	North Up/Heading Up	If North Up is selected, regardless of the direction of vehicle travel, north is always up. If Heading Up is selected, the direction of vehicle travel is always up.
      	3D Display	Displays a 3-dimensional (3D) view of the map.
      	2D and 3D City Map*1, *3, *5	Displays some areas of major cities with a 3-dimensional (2D and 3D) city map when the map scale is set to 50 m or less. Always displayed in Heading Up mode.
      	3D City Model Map*2, *4	Displays some areas of major cities with a 3-dimensional (3D) city model map when the map scale is set to 100 m or less. Always displayed in Heading Up mode.
      	Multi-step Scale Display	Changes the map scale in 14 steps.*1, *3, *5
      		Changes the map scale in 13 steps.*2, *4
      	Direct Scale Change	Directly touch and displays the map scale.
      	Street Name Indication on Scrolled Map	Displays the street name and city name even when the map screen is being scrolled.
      	Footprint Map*4	Displays a major city in a scale of 25 m.
      	Stepless Scale Display	Changes the scale of the map from the basic 14 steps to an even finer range of scales.*1, *3, *4, *5
      		Changes the scale of the map from the basic 13 steps to an even finer range of scales.*2
      	Road Number Sign Board	Displays the road number on the map.
      	Point of Interest Display	Displays selected types of points of interest as marks on the map.
      	Multiple Display Function	Displays different screens on a screen that is split into 3 views or 2 views.
      	Compass Mode Screen*1, *3, *4, *5	Displays the direction of travel and detailed data of the present location.
      	Route Guidance Demonstration	Demonstrates the route guidance to the destination.
      	Route Trace*4	Stores up to the last 200 km (124 miles) of a traveled route and retraces the route on the display. Available when the map scale is set to 30 miles (50 km) or less.
      	Route Trace Registration*1, *3, *5	A traveled route (up to 200 km (124 miles)) can be stored with a name by setting a start point and end point. The stored traveled route can be displayed on the map screen. Available when the map scale is set to 50 km (30 miles) or less.
      	RDS-TMC and TPEG Service Information Display*1	Displays the traffic icons, arrows and indicators when RDS-TMC or TPEG service information is being received.
      	RDS-TMC Display*3, *5	Displays RDS-TMC icons, arrows, popup messages and indicators when RDS-TMC service is being received.
      	RTIC Traffic Information Display*2	Displays RTIC icons, arrows and indicators when RTIC service is being received.
      Destination Search	Preset Destination Memory Search	Sets a pre-registered point as a destination point while driving.
      	Name Search*2	The name of a destination can be entered with the screen keyboard and searched for. Then a destination is selected using the area or POI category.
      	Address Search	Information can be entered in the order of: area, town name, street name and house number.*1, *3, *5
      		A destination can be set in 2 ways:*4 Information can be entered in the order of: house number, street name and city name. Information can be entered in the order of: city name, street name and house number.
      		Information can be entered in the order of: province, town name, street name and block number.
      	Address / Intersection Search*2	Information can be entered in the order of: province, city name, street name, house number and intersection.
      	Point of Interest Search	Searches for a point of interest by selecting the area from the category.*2
      		A destination can be set in 3 ways:*4 The name of a POI can be entered and then searched for from City or Category or on the web search using the apps. A POI category can be selected and a point of interest searched for near the present location, along the current route, near the city center or near the destination. The phone number of a point of interest can be entered to search for it.
      	Hybrid Point of Interest*1, *3, *5	Narrows the search by names of the point of interest, category and areas.

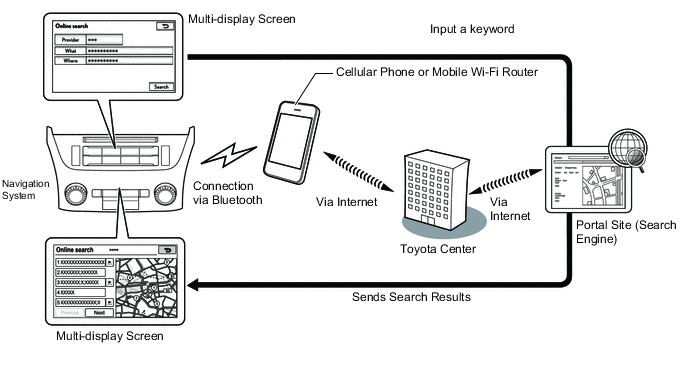

      	Online Search	Allows use of an internet search engine to set a destination using the most up to date information.
      	Previous Destination Search	Stores the coordinates, names, and dates of up to 100 locations that have been set as destinations in the past.
      	QR Code Search*1, *3, *5	POI information is displayed as a QR code. By scanning this code with a cellular phone, destination information can be obtained.
      	Map Search	A destination can be set by using the cursor on the map screen.
      	Memory Point Search*1, *2, *3, *5	Sets a destination from an item in the registered memory point.
      	Intersection Search*1, *3, *5	By specifying 2 streets, the point at which they intersect is set as the destination point.
      	Motorway Entrance or Exit Search*1, *3, *5	Searches for the destination by the name of the street that connects to a motorway entrance or exit.
      	Intersection or Freeway Entrance/Exit Search*4	A destination can be set in 2 ways: By specifying 2 streets, the point at which they intersect is set as the destination point. Searching for the destination by the name of a street that connects to a freeway entrance or exit.
      	Coordinate Search*1, *3, *5	A destination can be input by entering its coordinates.
      	Phone Number Search*1, *3, *5	A destination can be input by entering its phone number.
      	Postal Code Search*1, *3, *5	A destination can be input by entering its postal code.
      	Point of Interest Near Cursor Search*1, *2, *3, *5	A destination can be set by selecting the search point and point of interest category.
      	MAP CODE Search*2	A destination can be set using a MAP CODE.
      	Address Book (Memory Point) Search*4	Sets a destination from an item in the Address Book (Memory Point).
      	Panoramio Search*1	A destination can be set using location information applied to photos searched for in Panoramio.
      	G Search*2	A destination can be set using information from the web site (G-memory point).
      	POI Smartphone Search*2	The POI searched for using a smartphone can be obtained and set as a destination.
      	Voice Recognition Search*1	A destination can be set by voice command input.
      Route Search	Multiple Destination Setting	Sets multiple destinations. Can also rearrange sequence of destinations.
      	Multiple Route Search	Searches for multiple routes.
      	G Route Search*2	Searches for a route based on expected congestion information provided via the G-BOOK service.
      	Search Condition Designation	Searches for the quick, eco, and short routes.*1
      		Searches for the quick 1, quick 2, and short routes.*3, *4, *5
      		Searches for the recommended route, the shortest route, a route that prioritizes the use of motorways, a route that prioritizes the use of general roads, and other route.*2
      	Reordering Destinations	Changes the order of destinations when more than one destination is selected.
      	Detour Search	Changes the route to detour around a section of the route.
      	Regulated Road Consideration	Performs searches which consider regulated roads.
      	Avoidance Area	Searches for a route that avoids a designated area.
      	Adjacent Road Search*2, *4	Searches for a route that avoids a designated area.
      	Auto Avoid Traffic Search	Automatically changes route the heavy congestion.
      Guidance	Voice Guidance	Provides voice guidance about the distance and the direction of travel to a destination point based on road conditions and vehicle speed.
      	Next Turn Guidance	Provides guidance about the distance to the next turn and indicates the direction of the turn using an arrow.
      	Motorway (Freeway, Highway) Mode Display	Displays the distance to the next junction and exit, or POIs in the vicinity of the motorway exit.
      	Motorway (Freeway, Highway) Exit or Junction Display	When the vehicle approaches an exit or junction, the motorway guidance screen will be displayed.
      	Motorway (Freeway, Highway) Direction of Travel Display	Displays the direction of travel to take on the motorway.
      	Real Freeway (Highway) Junction Display*2	Displays the junction and signage in 3D in the vicinity of a major junction while driving.
      	Intersection Zoom-in Display	Zooms in the map display when approaching an intersection.
      	Turn List Display*1, *3, *4, *5	Displays a turn list on the right side of the 2-screen display.
      	Arrow (Turn-by-Turn) Display*1, *3, *4, *5	Displays the direction of the next turn and the distance to the turn on the right side of the 2-screen display.
      	Lane List Display*2	Display a lane list on the right side of the 2-screen display.
      	Distance-to-destination Display	Displays the distance from the present location to the destination.
      	Direction Sign Display*2	Displays direction signs, similar to overhead highway signs, with route guidance information overlaid.
      	Large Roundabout Guidance*2	Displays detailed guidance for large roundabouts.
      	Large Intersection Guidance*2	Displays detailed guidance for large intersections.
      	Importing Stored Route Guidance*1	Starts the guidance for the route set using the route information that is stored at the Toyota centre and imported.
      	Driver Support Information icon Display	Displays warning icons when the vehicle approaches the area, such as a school zone, railway crossing or high accident zone.
      	Route Information Bar Display	Displays the following information: Street name of the current location. Distance and travel time to the destination. Distance to the destination and estimated time of arrival. Distance to the destination and an arrow facing the destination (when off the route during guidance).
      	Traffic Bar Display*1, *5	Displays traffic information of congestions or accidents on the route using the traffic bar.
      Others	Voice Recognition*1, *2, *5	Recognizes pre-programmed system commands spoken to operate the navigation system.
      	Map Coverage Information Display	Displays the map area that is stored on the microSD card.

      *1: Models for Europe

      *2: Models for China

      *3: Models for G.C.C. Countries

      *4: Models for Australia

      *5: Models for General Countries

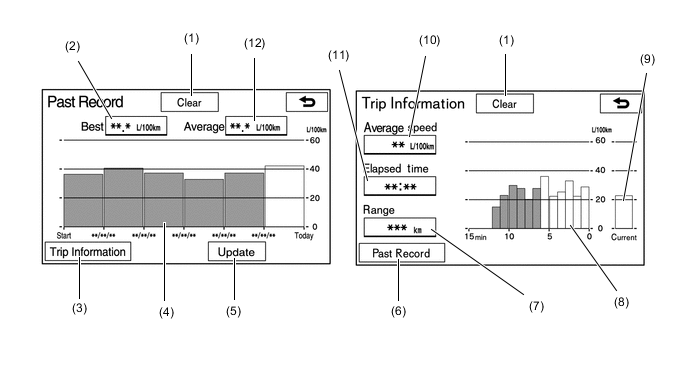

Information Screen

Setup Screen

1. The settings for the functions of the multi-display are available from the setup screen.

   Item	Outline
   General Settings	Time zones and the on/off setting of daylight saving time and automatic adjustment of the clock can be changed. *1, *2, *3 The language can be selected. *1, *3, *4 The voice recognition language can be selected.*1 The unit of measurement for fuel consumption can be changed. *1, *2, *3, *4The unit of measurement for fuel consumption can be changed. *1, *2, *3, *4 The startup/screen off images can be customized: Images can be copied from a USB device Images can be deleted An image can be set as the startup or screen off image Automatic return from the audio or air conditioning screen to the home screen after audio or air conditioning operation can be changed. The color of the screen buttons can be changed.*1, *2, *3 Beep sound can be set. Registered information (personal data) can be cleared. Navigation system program can be updated. Third party software information used in the navigation system, such as notices, can be enlisted. Gracenote database can be updated.*1
   Voice Settings	The voice guidance volume can be adjusted or switched off. Voice recognition prompts can be set.*1, *2 Voice guidance while using the audio and visual system or air conditioning can be set. Voice guidance during route guidance can be set.*1, *2, *3 Desired guidance tone can be set.*3
   Bluetooth Settings	Bluetooth device registration settings can be changed: Register a Bluetooth device Delete the Bluetooth device Select the Bluetooth device Edit the Bluetooth device Bluetooth system settings can be changed: Automatic connection to a Bluetooth device Bluetooth device name Bluetooth device PIN-code Display of Bluetooth device connection status Bluetooth device profile Bluetooth internet connection can be set up.*1
   Wi-Fi Settings*1*4	The Wi-Fi function can be switched on/off. Available networks that can be connected can be displayed. Available networks that can be connected can be searched for. A Wi-Fi Protected Setup compatible Wi-Fi device can be connected quickly. Wi-Fi settings can be changed: The networks list can be edited An automatic connection message can be set
   Audio Settings	Sound quality can be adjusted.*1 Radio setting can be changed: *1, *2, *3 The listing order of the station list can be set Automatically seek an FM station that regularly broadcasts traffic information and the station broadcasts An FM station providing good reception is automatically selected if current reception worsens Switching over to a broadcasting station within the same local program network The FM radio text feature can be set DAB setting can be changed:*1, *2 L-band in the tune range can be set Automatically seek a DAB station that regularly broadcasts traffic information and the station broadcasts A DAB station providing good reception is automatically selected if current reception worsens The DAB text feature can be set An input terminal for iPod video sound signals can be selected. An input video signal format can be selected. Cover art settings can be changed:*1, *2 Cover art display in DISC mode*1 Cover art display in USB mode Priority setting of the Gracenote database cover art in USB mode Cover art display in iPod mode Priority setting of the Gracenote database cover art in iPod mode Data recorded to the sound library can be edited:*4 Edit an album Delete an album Confirm the hard drive information DVD settings can be changed: Audio language Subtitle language DVD video menu language Multi-angle mark display during multi-angle compatible disc playback Viewer restriction level Auto start playback Volume difference adjustment between the lowest and highest volume
   Navigation Settings*3	The Navigation Settings can be used to: Set detailed navigation settings such as average cruising speed. Set detailed navigation settings such as displayed POI icon categories. Set detailed navigation settings such as display of 3D landmarks. Displaying the speed limit of the road currently being used can be set. The function that magnifies the map scale as the vehicle guidance point can be set. Set the display of pop-up information. Manual adjustment of the current vehicle position mark. Display the coverage areas and legal information.
   Navigation Settings*1	The Navigation Settings can be used to: Set detailed online search settings such as: Synchronized settings of the online search portal site and navigation system Automatic accumulated data downloading settings from the portal site Roaming warning message settings Memorization settings of the user name and password used when connecting to the portal site Search engine settings of the online search Deletion of the online search history Change of the user name and password used when connecting to the portal site Deletion of the user name and password used when connecting to the portal site Set detailed navigation settings such as average cruising speed. Set detailed navigation settings such as displayed POI icon categories. Set detailed navigation settings such as display of 3D landmarks. Set the speed limit of the road currently being used. Set the function that magnifies the map scale as the vehicle approaches a guidance point. Set the cautionary message display shown when a regulated street is included in the route. Set the display of pop-up information. Manually adjust the current vehicle position mark. Display the coverage areas and legal information.
   Navigation Settings*2	The Navigation Settings can be used to: Set and edit the home. Set special memory points. Set memory points. Set and edit areas to avoid. Delete previous destinations. Set detailed navigation settings such as: The visual city map display Display of 3D landmarks The daytime map color The nighttime map color The character size on the map The display of the scale switching messages The merging lane guidance The warning point guidance The cross-border guidance The usage of the G-information mark synchronized service The display of the 3D intersection zoomed map The automatic zooming function The average cruising speed Animation of some screen displays The displayed POI icon categories The display of the 3D city map The viewing angle of the 3D map User's customize settings Manual adjustment of the current vehicle position mark
   Navigation Settings*4	The Navigation Settings can be used to: Set and edit the home. Set preset destinations. Set memory points. Delete previous destinations. Set detailed navigation settings such as: The visual city map display Display of 3D landmarks The daytime map color The nighttime map color The character size on the map The display of the scale switching messages The merging lane guidance The warning point guidance The cross-border guidance The display of the 3D intersection zoomed map The automatic zooming function The average cruising speed The displayed POI icon categories The display of the 3D city map The viewing angle of the 3D map Manual adjustment of the current vehicle position mark Transfer memory points stored in a USB memory device or disc to the system. Copy memory points to a USB memory device or disc for backup.
   Telephone Settings	A Bluetooth phone can be registered or connected. Phone sound settings can be changed: Ring tone Ring tone volume Message readout volume*1, *2 SMS/MMS incoming tone*1, *2 SMS/MMS incoming tone volume*1, *2 E-mail incoming tone*1, *2 E-mail incoming tone volume*1, *2 In-call volume Contact settings can be changed:*1, *3 Contacts can be transferred from the connected cellular phone to the system, or added, edited, and deleted*5 Favorites list registration Contacts deletion from the call history*3 Contact/Call history settings can be changed:*2, *4 Automatic contact/history transfer function settings when a PBAP compatible Bluetooth phone is connected Contacts update Favorites list registration Contacts deletion from the favorites list Contact image display Call history deletion*6 New contact addition to the contact list*6 Contact list editing*6 Contact deletion from the contact list*6 Message function settings can be changed:*1, *2 Message forwarding from cellular phones Automatic message readout SMS/MMS notification popup E-mail notification popup Vehicle signature on outgoing messages Message read status on phone update Incoming SMS/ MMS display when an SMS/MMS message is received "Full Screen": The incoming SMS/MMS display screen is displayed and can be operated on the screen. "Drop-Down": A message is displayed on the upper side of the screen and can be operated only via the steering wheel switches. Incoming e-mail display when an e-mail is received "Full Screen": The incoming e-mail display screen is displayed and can be operated on the screen. "Drop-Down": A message is displayed on the upper side of the screen and can be operated only via the steering wheel switches. Display of messaging account names on the inbox tab Telephone display settings can be changed: *1, *2 Incoming call display Display of the automatic contact/history transfer completion message Automatic contact/history transfer (only available with Bluetooth phones that support PBAP) *1 Contact list sorting*1 Contact image display*1 Phone display settings can be changed:*3 Incoming call display Display of the automatic contact/history transfer completion message Display of the automatic phonebook/history transfer completion message Automatic phonebook/history transfer (only available with Bluetooth phones that support PBAP)*3 Contact list sorting*3 Contact image display*3
   Traffic and Parking Settings*1	The voice guidance for traffic information can be switched off. Display of the traffic information icon can be set. The detour route function can be selected. When searching for a route, a detoured route search that avoids traffic jams and so forth can be set. The selection of traffic stations can be set to auto/manual. The selected station can be displayed. TPEG traffic information receive settings can be used to: Automatically update more frequently Automatically update less frequently Update manually Cancel TPEG traffic information reception via Wi-Fi or a Bluetooth device The roaming function of TPEG traffic information can be set. Traffic information can be set to be received automatically, or to receive RDS-TMC traffic information only. Display of parking icons can be displayed on the map can be set. Parking lot information reception can be set. The roaming function of parking lot information can be set.
   Traffic Information Settings*7	The FM station currently providing traffic information can be displayed.*2 The voice guidance for traffic information can be switched off.*3 Display of the traffic information icon can be set. The detour route function can be selected.*2 The usage of traffic information for estimating arrival time can be set.*2 The display of an arrow for free flowing traffic can be set.*2 The traffic incident voice warning can be set.*2 The avoid traffic function can be set to auto/manual.*3 The selection of traffic stations can be set to auto/manual.*3 The selected station can be displayed.*3
   RTIC/Traffic Information Settings*4	The display of traffic information can be set. Voice guidance for RTIC/traffic information can be set. Traffic congestion consideration search can be set. When using a Bluetooth device for data communication, a G-route search point can be set. Driving record uploading can be set. FM station selection for RTIC can be set.
   G-BOOK settings*4	The G-BOOK settings can be used to: Set detailed functions: Canceling the Contract Setting the system to read the contents of the browser aloud automatically Editing the My Request Editing fixed form sentence of the software keyboard Set privacy setting: Communication lock Changing the PIN number Displaying the PIN number
   Vehicle Settings	Settings can be changed for the following maintenance items: ENGINE OIL OIL FILTER ROTATION TYRE/Tires BATTERY BRAKE PAD WIPERS LLC/Coolant BRAKE OIL ATF/Trans. fluid SERVICE AIR FILTER PERSONAL Reminder Delete all Reset all Set dealer Customizable vehicle settings can be changed. Toyota Parking Assist-sensor system adjustment.*8 Blind spot monitor system adjustment.*9

   *1: Models for Europe

   *2: Models for Australia

   *3: Models for G.C.C. Countries

   *4: Models for China

   *5: For PBAP compatible models

   *6: PBAP non-compatible phone, or PBAP compatible phone with the automatic telephone number transfer function set to off

   *7: Except models for Europe and China

   *8: Models with Toyota parking assist-sensor system

   *9: Models with blind spot monitor system

   Tech Tips

   Gracenote.:

   Gracenote, CDDB, MusicID, Playlist Plus, MediaVOCS, the Gracenote logo and logotype, and the "powerd by Gracenote" logo are either registered trademarks or trademarks of Gracenote, Inc. in the United States and/or other countries.

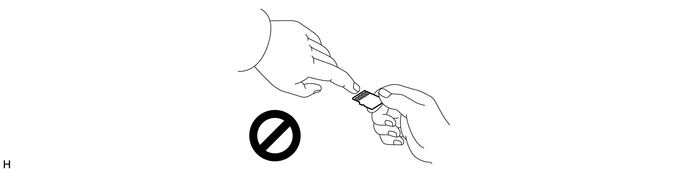

PRECAUTION

DIAGNOSIS

1. For details on the procedure required to enter the Service Menu screen, refer to the Repair Manual.
