WIPER AND WASHER SYSTEM

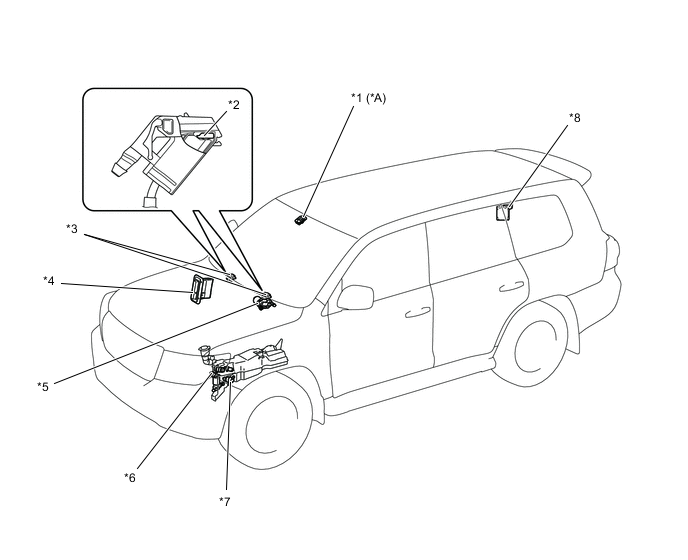

| *A | With rain sensing function | - | - |
| *1 | Rain Sensor | *2 | PTC Heater |
| *3 | Washer Nozzle | *4 | Washer Nozzle |
| *5 | Windshield Wiper Motor Assembly | *6 | Windshield Washer Fluid Level Switch |
| *7 | Windshield Washer Motor and Pump Assembly | *8 | No. 2 Main Body ECU |

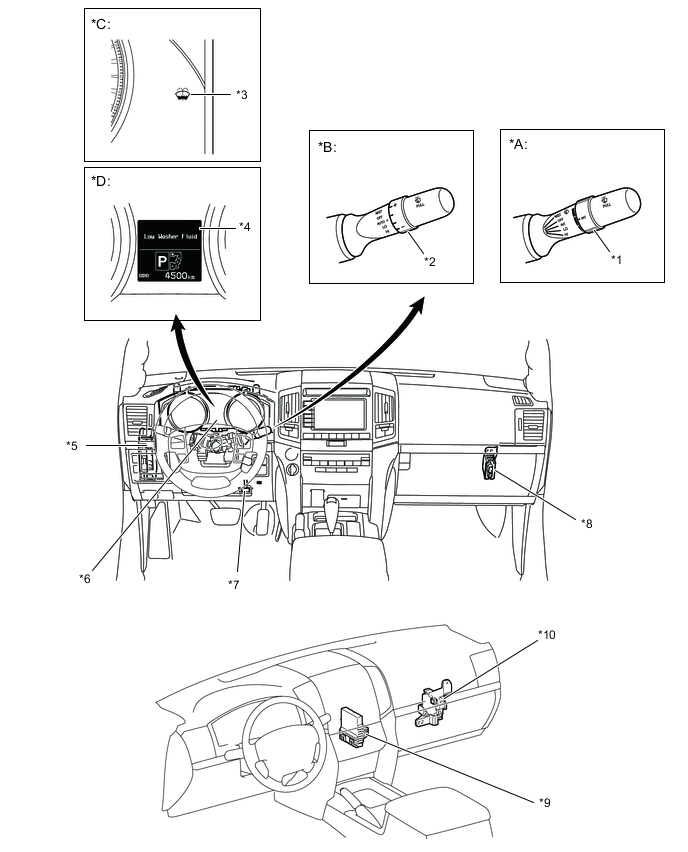

| *A | Models without rain sensing function | *B | Models with rain sensing function |
| *C | Models with analog type combination meter | *D | Models with optitron type combination meter |
| *1 | Windshield Wiper Switch Assembly - Wiper Switch - Interval Adjuster - Washer Switch |
*2 | Windshield Wiper Switch Assembly - Wiper Switch - Automatic Control Adjuster - Washer Switch |
| *3 | Washer Fluid Level Warning Light | *4 | Multi-information Display |
| *5 | Main Body ECU (Cowl Side Junction Block LH) | *6 | Combination Meter |
| *7 | DLC3 | *8 | Windshield Wiper ECU |
| *9 | Air Conditioning Amplifier Assembly | *10 | Cowl Side Junction Block RH - Washer Nozzle Heater Relay |
