NEW FEATURES


  1. DESCRIPTION


    1. The design of the refreshing seat switch has been changed.

    2. A LIN communication compatible refreshing seat switch has been adopted.

    3. The automatic control function for the heated* and ventilated seat system has been adopted.


      • *: Models with heated seat system

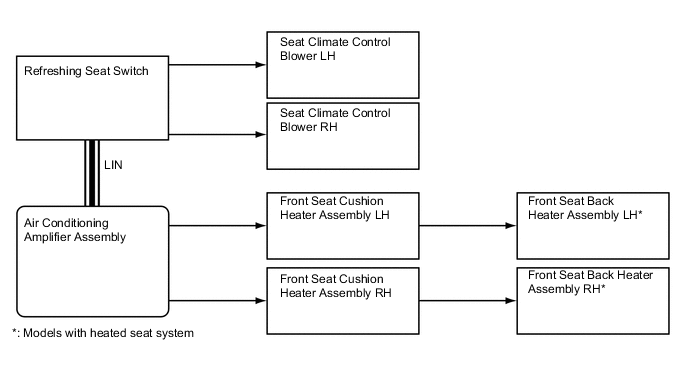

  2. SYSTEM DIAGRAM

    Figure 1. Front Heated and Ventirated Seat System

    A01W6M6E02

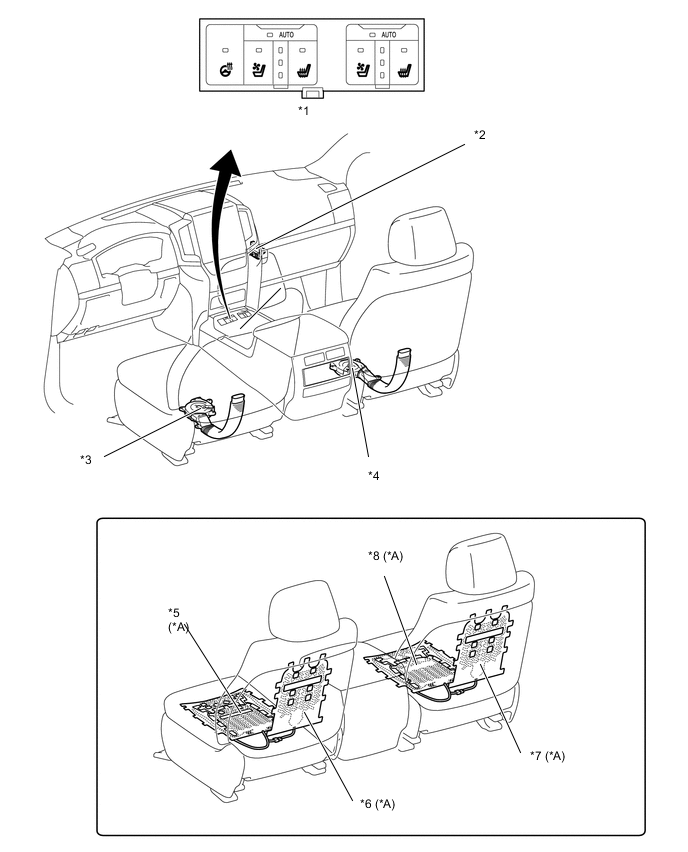

  3. LAYOUT OF MAIN COMPONENTS

    Figure 2. Front Heated and Ventirated Seat System

    A01W67FC02
    *A Models with Heated Seat System - -
    *1 Refreshing Seat Switch *2 Air Conditioning Amplifier Assembly
    *3 Seat Climate Control Blower LH *4 Seat Climate Control Blower RH
    *5 Front Seat Cushion Heater Assembly LH *6 Front Seat Back Heater Assembly LH
    *7 Front Seat Back Heater Assembly RH *8 Front Seat Cushion Heater Assembly RH

  4. SYSTEM CONTROL


    1. Automatic Control Function for Seat Heater Control (Front Seat)


      • By switching the heated seat system to the automatic control function, automatic controlfunction allows the heated seat system to automatically operate in conjunction with the airconditioning system and ventilated seat system.


      • When the automatic control function is controlling the heated seat system, the temperature ofthe front seat heater is automatically adjusted in 4 stages (off, Lo, Mid, and Hi) according to theoutside temperature and front air conditioning target airflow temperature.

    2. Automatic Control Function for Seat Ventilation Control (Front Seat)


      • By switching the ventilated seat system to the automatic control function, automatic controlfunction allows the ventilated seat system to automatically operate in conjunction with the airconditioning system and heated seat system.
