NEW FEATURES


  1. FRONT HEATER CONTROL PANEL


    1. The illumination color in the night time for the air conditioner control assembly for the vehicles not equipped with the entry and start system has been changed from greenish white to clear blue.

    2. A newly shaped air conditioner control assembly has been adopted for the vehicles equipped with the air conditioner control assembly for entry and start system.

    3. The LCD of the vehicles equipped with the air conditioner control assembly for entry and start system has been adopted negative type display.

    4. The decoration panel of air conditioner control assembly for entry and start system has been adopted and provided depending on the specifications.

    5. The illumination color in the night time for the air conditioner control assembly for entry and start system has been adopted clear blue.

      Figure 1. Models with Air Conditioner Control Assembly for Entry and Start System

      A01W5W6C01
      *1 Air Conditioner Control Assembly - -

  2. REAR HEATER CONTROL PANEL


    1. A new pattern has been adopted for the decoration panel of the vehicles equipped with the No. 2 air conditioning control assembly.

    2. The LCD of a No. 2 air conditioning control assembly has been changed from positive type display to negative type display.

    3. The illumination color in the night time for the No. 2 air conditioning control assembly has been changed from greenish white to clear blue.

  3. BLOWER CUSTOMIZED CONTROL

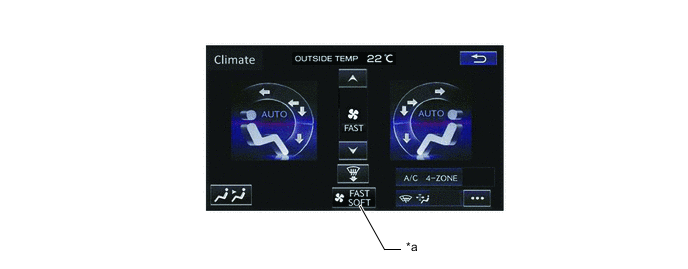

    1. A blower customizing control has been adopted for Europe models with the navigation system, allowing the users to select the desired flow rate in the AUTO mode. A dedicated switch is provided for intuitive operations.

      A01W6WZC01
      *a Dedicated Switch - -

    2. The blower customizing control allows the users to select the flow rate in the AUTO mode in 3 steps.

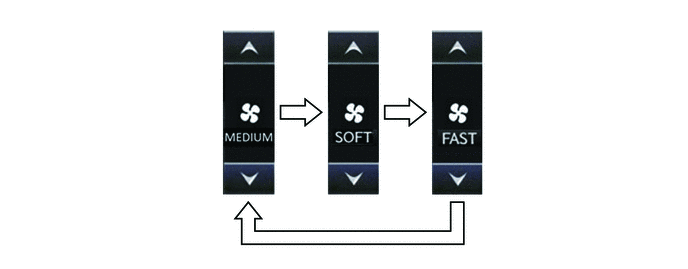

    3. Pressing the dedicated switch on the screen allows the user to switch the flow rate in the order of MEDIUM→SOFT→FAST→MEDIUM.

    4. Use FAST to stabilize the temperature quickly or when there is a passenger on the rear seat.

    5. Use SOFT to reduce the flow rate.

      A01W6GN
