NEW FEATURES


  1. BRAKE CONTROL SYSTEM


    1. Multi-terrain Select


      1. Multi-terrain Select Control


        • Some operating conditions have been changed for the multi-terrain select so that it can be used while the CRAWL control is activated. The CRAWL control is activated when the accelerator pedal is released and the multi-terrain select is activated in the "AUTO" mode when the accelerator pedal is depressed.

        • When the CRAWL control is deactivated, one of the 5 road modes of "MUD & SAND" "LOOSE ROCK" "MOGUL" "ROCK & DIRT" and "ROCK" can be selected with the mode selector switch.

        • The "AUTO" mode will be selected automatically when the CRAWL control is activated.

          Multi-terrain Select Road Mode Transfer Drive Mode Control
          A-TRC Control Results
          Mud and Sand L4 The wheels are allowed to slip more than usual. Outputs a large amount of drive force and suppresses deceleration feeling by assuming that the vehicle is driving on a soft, slippery road surface.
          Loose Rock L4 The wheels are allowed to slip more than usual. Outputs a large amount of drive force and suppresses deceleration feeling by assuming that the vehicle is driving on slippery or loose-graveled uphill slopes.
          Mogul L4 The wheels are made to grip more than usual. Suppresses deceleration feeling to achieve smooth driving on hills while improving LSD function by assuming that the vehicle is driving on a highly bumpy road surface.
          Rock and Dirt L4 The wheels are made to grip more than usual. Gives the wheels grip and improves the LSD function by assuming that the vehicle is driving on a highly bumpy road surface.
          Rock L4 The wheels are made to grip more than usual. Gives the wheels grip and improves the LSD function by assuming that the vehicle is driving on a highly bumpy road surface.
          Auto L4 The control is optimized in response to the vehicle speeds set in the CRAWL control. An optimum Active TRC will automatically be selected by further depressing the accelerator pedal to add more traction force while running with the CRAWL control activated.

      2. Multi-terrain Operation Condition


        • By selecting the road mode through the mode select switch operation when all of the following conditions are met, the control status will become READY and the multi-terrain select indicator light will turn on. In addition, if all of the following conditions cannot be met, the multi-terrain select indicator light will turn off to finish control.

        • When A-TRC operates in this condition, the slip indicator light will flash.

          Multi-terrain Select Operate Condition

          • Transfer drive mode is in L4.

          • The VSC OFF switch is off.

          • The brake control system is normal.

    2. Console Switch


      1. The designs of the CRAWL ON/OFF switch, turn assist ON/OFF switch, CRAWL speed/MTS mode select switch, and VSC OFF switch have been altered and they are built into the integration control and panel assembly (console module switch), integrating them on the console and allowing the driver to keep his/her driving posture when using those traction and drive related switches.

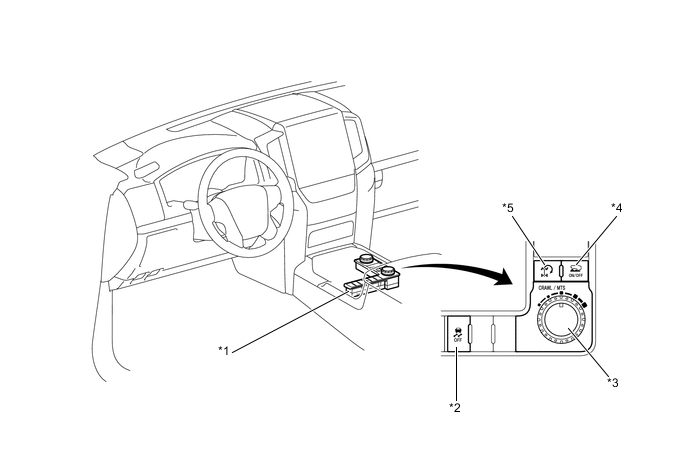

        A01W5WHC01
        *1 Integration Control and Panel Assembly *2 VSC OFF Switch
        *3 CRAWL Speed/MTS Mode Select Switch *4 CRAWL ON/OFF Switch
        *5 Turn Assist ON/OFF Switch - -

    3. Indicator Light and Multi-information Display


      1. Each indicator lights and multi-information display operate as follows:

        Indicator Light
        Condition Indicator Light
        Multi-terrain Indicator Light CRAWL Indicator Light Turn Assist Indicator Light Slip Indicator Light
        Multi-terrain Select Operates ○ - - -
        A-TRC Operates ○ - - ▲
        CRAWL is activated and the accelerator pedal is depressed. ○ ○ - ▲
        CRAWL is activated and the accelerator pedal is released. ○ ○ - ▲
        System Malfunctions X - - ○
        CRAWL Operates (Only CRAWL) - ○ - ▲
        Operates (CRAWL and Turn Assist Function) - ○ ○ ▲
        Operates → Control Releases - ▲ → X X X
        Operates → Control Releases(Only Turn Assist Function) - ○ X ▲
        Stops Control Temporarily - ▲ ▲* X
        System Malfunctions - - - ○
        Operates → System Malfunctions - ▲ → X X ○

        ○: Illuminates

        ▲: Blinks

        X: Turns off

        *: When turn assist function does not operate, indicator light turns off.

        Multi-information Display
        Condition Multi-information Display Master Warning Indicator Light
        Multi-terrain Select Operates Displays The Road Mode Being Selected. -
        A-TRC Operates Displays The Road Mode Being Selected. -
        CRAWL is activated and the accelerator pedal is depressed. Multi-terrain Select "AUTO" -
        CRAWL is activated and the accelerator pedal is released. CRAWL Operates -
        System Malfunctions - -
        CRAWL Operates (Only CRAWL) CRAWL Operates -
        Operates (CRAWL and Turn Assist Function) CRAWL Operates -
        Operates → Control Releases CRAWL Has Been Deactivated -
        Operates → Control Releases (Only Turn Assist Function) Turn Assist Function Has Been Deactivated -
        Stops Control Temporarily - -
        System Malfunctions Check VSC ○
        Operates → System Malfunctions

        • CRAWL Not Available Select L4 and Shift to [D] or [R] Position

        • CRAWL Not Available Check System Operation Conditions

        • Turn Assist Function Not Available Activate CRAWL Control

        • Turn Assist Function Not Available Check System Operation Conditions

        		 -
