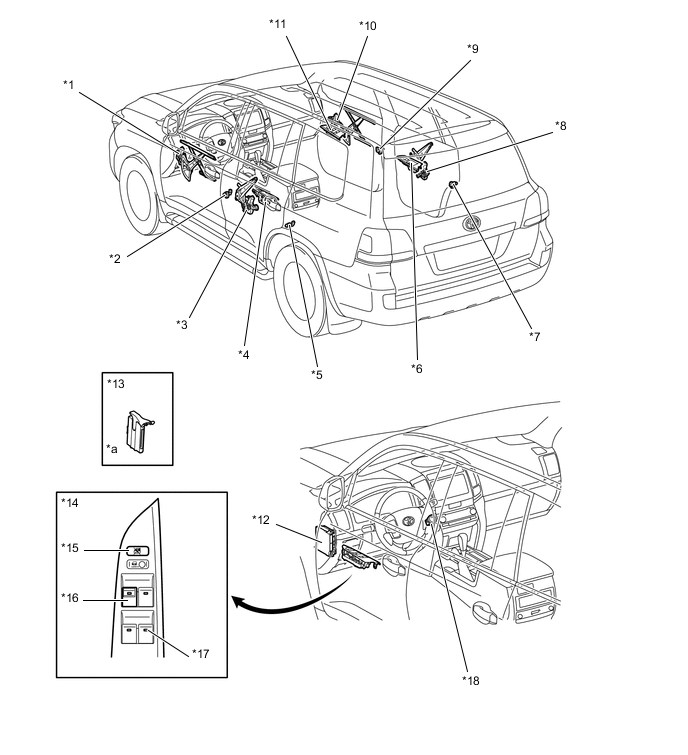

| *1 |
Power Window Regulator Motor Assembly LH |
*2 |
Front Door Courtesy Light Switch LH |
| *3 |
Rear Power Window Regulator Motor Assembly LH (No.1 Rear Power Window Regulator Motor Assembly LH) |
*4 |
Rear Power Window Regulator Switch Assembly (LH) |
| *5 |
Rear Door Courtesy Light Switch LH |
*6 |
Rear Power Window Regulator Switch Assembly (RH) |
| *7 |
Rear Door Courtesy Light Switch RH |
*8 |
Rear Power Window Regulator Motor Assembly RH |
| *9 |
Front Door Courtesy Light Switch RH |
*10 |
Power Window Regulator Motor Assembly RH |
| *11 |
Power Window Regulator Switch Assembly (Passenger) |
*12 |
Main Body ECU (Driver Side Junction Block) |
| *13 |
Certification ECU |
*14 |
Multiplex Network Master Switch Assembly |
| *15 |
Window Lock Switch |
*16 |
Power Window Regulator Switch Assembly (Driver) |
| *17 |
Power Window Regulator Switch Illumination |
*18 |
Engine Switch |
| *a |
Refer to the Service Bulletin for the installation position of the part. |
- |
- |
