METER


  1. DESCRIPTION


    1. An analog display type combination meter assembly or an Optitron display type combination meter assembly is provided depending on the models.

    2. A TFT type multi-information display is mounted in the center of the Optitron display type combination meter.

    3. A meter ECU and buzzer are enclosed in the combination meter. This ECU maintains communication with other ECUs through the CAN.

    4. Illumination control, which turns on the combination meter illumination at different time intervals when the power source is switched to IG-ON, has been provided.

    5. A speed warning system has been provided as standard on models for G. C. C. Countries. When the vehicle speed exceeds 120km/h, the system warns the driver by sounding the buzzer and flashing the warning lights.

    6. On dual fuel tank models, the meter ECU determines the remaining fuel amount in the fuel tank from the signals received from the sender gauges on both the fuel tank and fuel sub tanks.

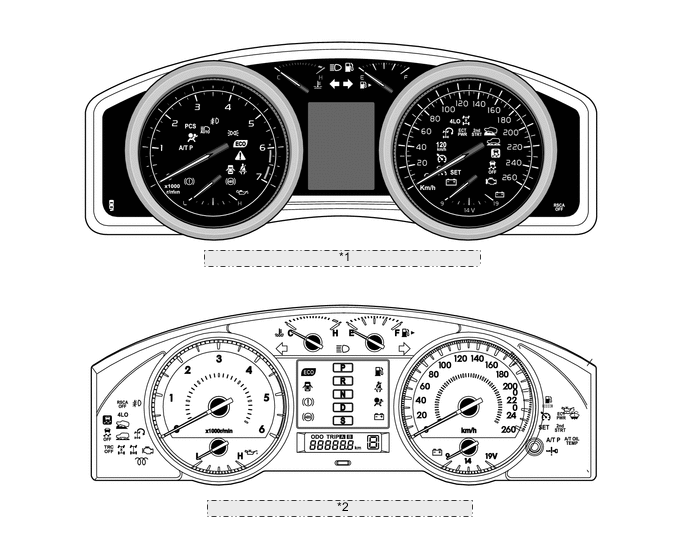

      A01W6BAE01
      *1 Optitron Display Type Combination Meter Assembly
      *2 Analog Display Type Combination Meter Assembly
