LIGHTING


  1. General


    1. The headlight cleaner system sprays washer fluid on the headlight lenses to clean them.

    2. The headlight cleaner relay controls this system.

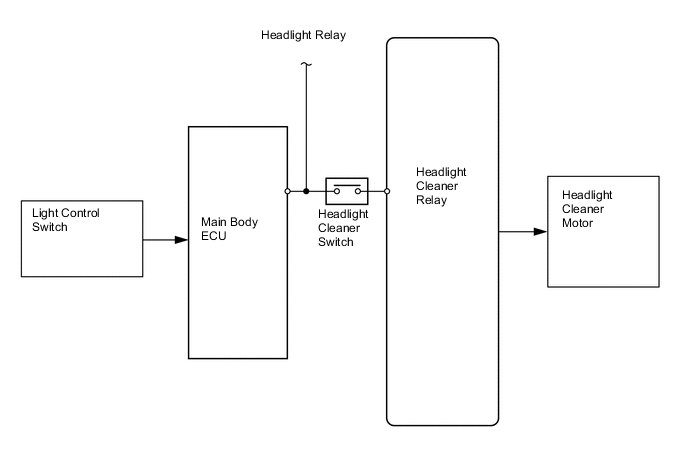

  2. System Diagram

    A01W6WRE02

  3. Layout of Main Components

    A01W6ROC01

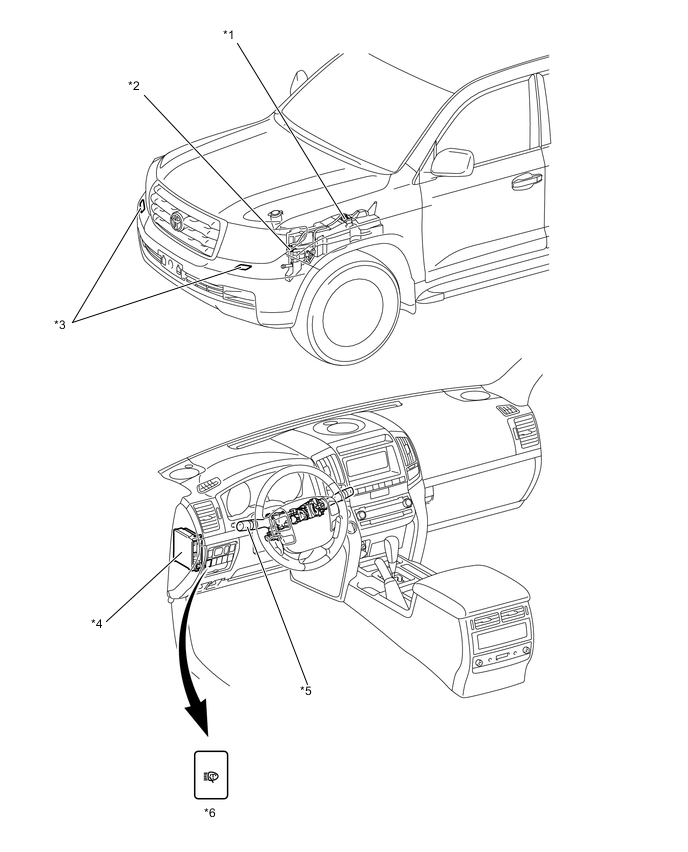

    *1 Headlight Cleaner Relay *2 Headlight Cleaner Motor and Pump Assembly
    *3 Headlight Cleaner Nozzles *4 Main Body ECU
    *5

    Headlight Dimmer Switch Assembly


    • Light Control Switch

    		 *6 Headlight Cleaner Switch
