STEERING


  1. General


    1. A heated steering wheel system is provided depending on the model.

    2. This system consists of a heater wire that is placed inside the steering wheel.

    3. This system is activated by operating the steering heater switch and is controlled by the steering wheel heater control assembly.

    4. The steering wheel heater control assembly uses the thermistor provided in the steering wheel to maintain the surface temperature of the steering wheel at approximately 37°C (99°F).

    5. The steering wheel heater control assembly contains a timer function that automatically turns off the heated steering wheel system after approximately 30 minutes even if the driver does not turn off the steering heater switch.

    6. When the steering wheel heater control assembly detects the following malfunctions, the indicator light of the steering heater switch blinks.


      • An open or short in the thermistor has continued for 2 seconds or more.

      • The steering heater switch has been kept pressed for 10 seconds or more.

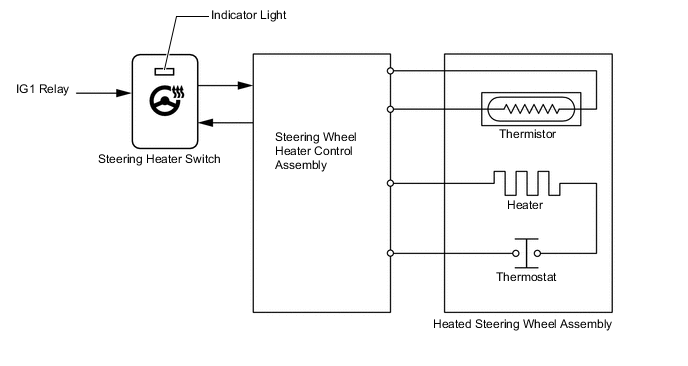

  2. System Diagram

    A01W6NOE01

  3. Layout of Main Components

    A01W6LWC01

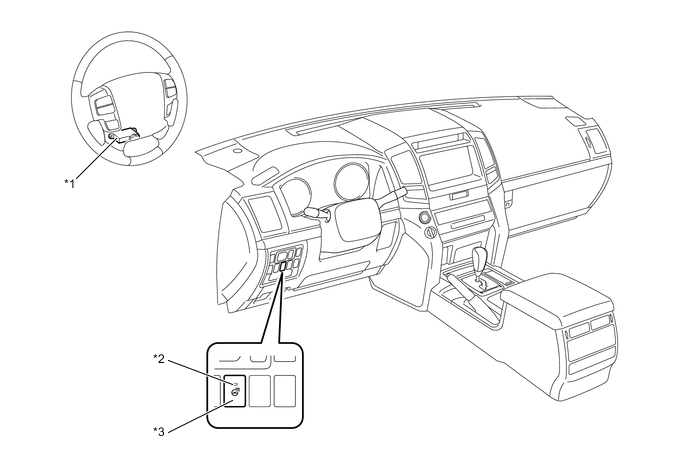

    *1 Steering Wheel Heater Control Assembly *2 Indicator Light
    *3 Steering Heater Switch - -

    Figure 1. Heated Steering Wheel Assembly

    A01W6PLC01

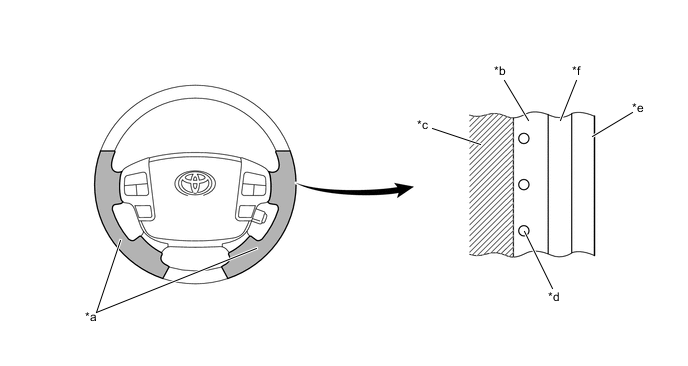

    *a Heated Portion *b Non-woven Fabric
    *c Urethane *d Heater Wire
    *e Leather *f Neoprene
