BRAKE


  1. Offset Type Parking Brake Lever


    1. An offset type parking brake lever is used to ensure a space on the console box. In consideration of serviceability, the double nuts for parking brake cable adjustment have been discontinued and replaced by an adjustment nut.

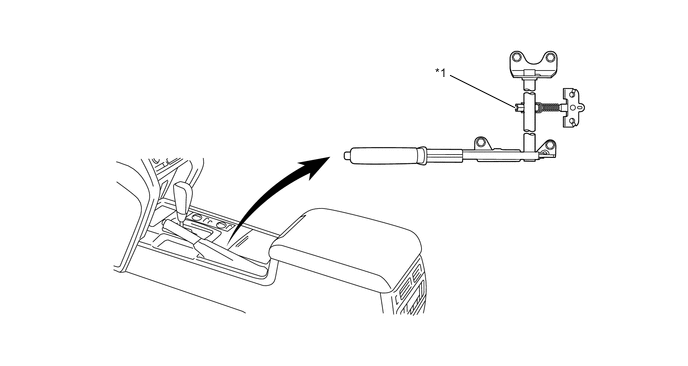

      A01W65TC01
      *1 Adjustment Nut - -

  2. Toggle Lever Type Parking Brake


    1. A toggle lever type duo-servo brake mechanism is used for the parking brake to simplify the constituent parts and to achieve weight reduction.

    2. This parking brake mainly consists of parking brake shoe lever sub-assembly, parking brake shoe anchor block, shoe. When the parking brake is operated, it pulls on the cable, and this causes the parking brake shoe lever to expand the shoes via fulcrums "A" and "B".

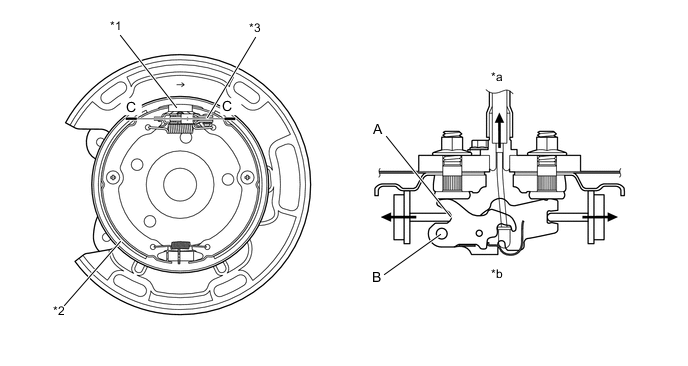

      A01W5SBC01
      *1 Parking Brake Shoe Anchor Block *2 Shoe
      *3 Parking Brake Shoe Lever Sub-assembly - -
      *a During Operation *b C-C Cross Section
