SUSPENSION AND AXLE


  1. General


    1. The coil spring type double-wishbone independent suspension is used for the front, and the 4-link coil spring with lateral rod type suspension is used for the rear.

    2. A Kinetic Dynamic Suspension System (KDSS) is provided depending on the model.

    3. A 4-wheel Active Height Control suspension (4-wheel AHC) and Adaptive Variable Suspension (AVS) is provided depending on the model.

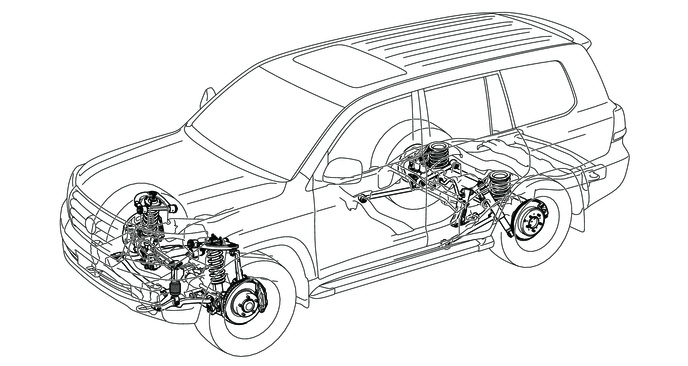

      Figure 1. Models with Kinetic Dynamic Suspension System (KDSS)

      A01W6WG

  2. Front Suspension


    1. Through the optimal allocation of components, the front suspension realizes excellent riding comfort, controllability, and off-road drivability.

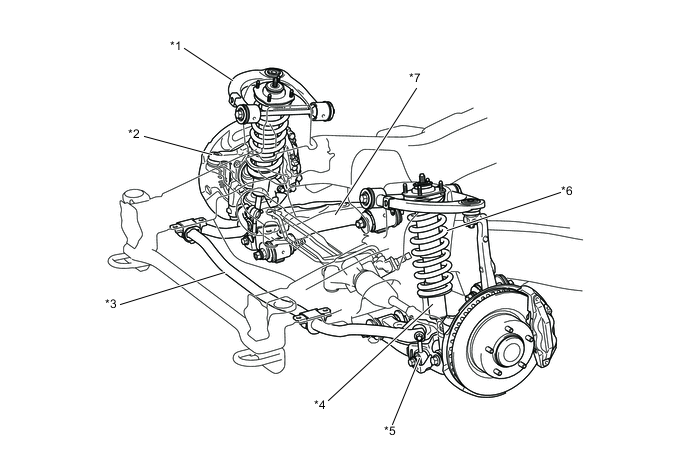

      Figure 2. Models with 4-wheel Active Height Control Suspension (4-wheel AHC) and Adaptive Variable Suspension (AVS)

      A01W69TC01
      *1

      Front Upper Suspension Arm Assembly


      • High mount type is used

      		 *2

      Steering Knuckle


      • Made of forged steel
      *3

      Front Stabilizer Bar


      • Hollow stabilizer bar is used

      		 *4 Front Shock Absorber Assembly
      *5 Front Stabilizer Link Assembly *6

      Front Coil Spring


      • Optimized spring rate
      *7

      Front Lower No.1 Suspension Arm Assembly


      • Optimized characteristics

      		 - -

      Figure 3. Models with Kinetic Dynamic Suspension System (KDSS)

      A01W6YIC01
      *1

      Front Upper Suspension Arm Assembly


      • High mount type is used

      		 *2

      Steering Knuckle


      • Made of forged steel
      *3

      Front Stabilizer Bar


      • Hollow stabilizer bar is used

      		 *4 Front Stabilizer Control Cylinder
      *5 Front Stabilizer Control Arm Assembly *6 Front Stabilizer Link Assembly
      *7

      Front Shock Absorber Assembly


      • Low-pressure (N2) gas sealed

      		 *8

      Front Coil Spring


      • Optimized spring rate
      *9

      Front Lower No.1 Suspension Arm Assembly


      • Optimized characteristics

      		 - -

      Tech Tips


      • To prevent hazardous conditions, make sure to empty the gas from the front shock absorber assembly before discarding a low-pressure (N2) gas sealed front shock absorber assembly.

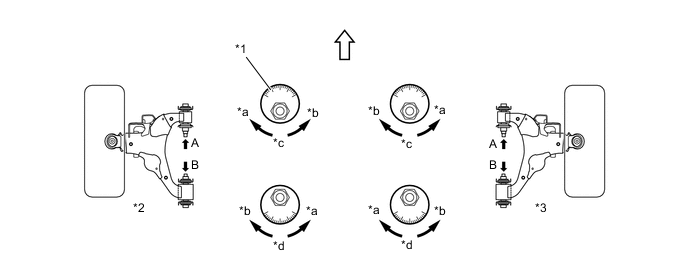

      • The camber and caster of the front suspension can be adjusted using the adjustment cams of the lower arms.

      • For details, refer to the Repair Manual.

        A01W6FKC01
        *1 Adjustment Cam *2 Front Axle LH
        *3 Front Axle RH - -
        *a Longer (+) *b Shorter (-)
        *c A View *d B View

  3. Rear Suspension


    1. Through the optimal allocation of components, the rear suspension realizes excellent riding comfort, controllability, and off-road drivability.

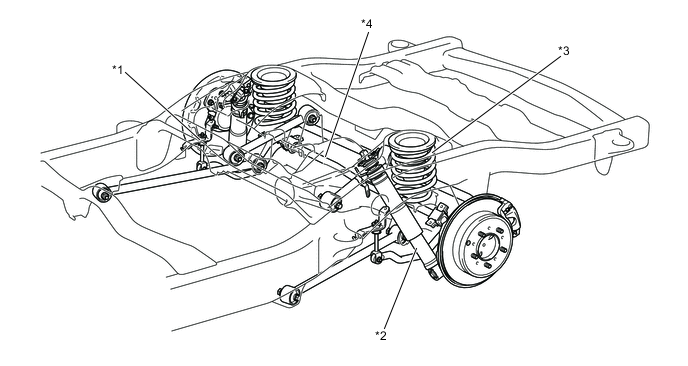

      Figure 4. Models with 4-wheel Active Height Control Suspension (4-wheel AHC) and Adaptive Variable Suspension (AVS)

      A01W6TVC01
      *1 Stabilizer Link Sub-assembly *2 Rear Shock Absorber Assembly
      *3

      Rear Coil Spring


      • Optimized spring rate

      		 *4

      Rear Stabilizer Bar Sub-assembly


      • Hollow stabilizer bar is used

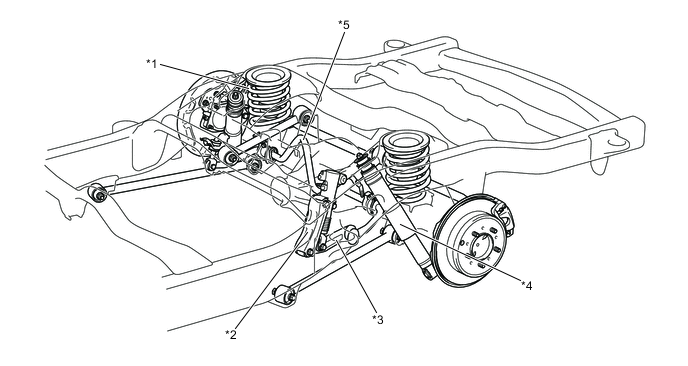

      Figure 5. Models with KDSS

      A01W6AOC01
      *1

      Rear Coil Spring


      • Optimized spring rate

      		 *2 Rear Stabilizer Control Cylinder
      *3 Stabilizer Control Arm *4

      Rear Shock Absorber Assembly


      • Low-pressure (N2) gas sealed
      *5

      Rear Stabilizer Bar Sub-assembly


      • Solid stabilizer bar is used

      		 - -

      Tech Tips

      To prevent hazardous conditions, make sure to empty the gas from the shock absorber before discarding a low-pressure (N2) gas sealed shock absorber. For details, refer to the Repair Manual.
