PROPELLER SHAFT AND DRIVE SHAFT


  1. DESCRIPTION


    1. The front drive shafts assemblies use the double offset type CVJ (Constant-Velocity Joint) on the differential side, and Rzeppa type CVJ on the wheel side.

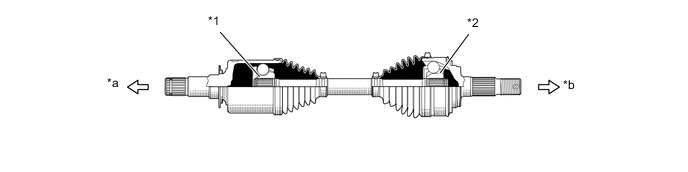

      A01W6IQC01
      *1 Double Offset Type CVJ *2 Rzeppa Type CVJ
      *a Differential Side *b Wheel Side
