PROPELLER SHAFT AND DRIVE SHAFT


  1. DESCRIPTION


    1. 2-joint type shafts are used for the front and rear propeller shaft assemblies.

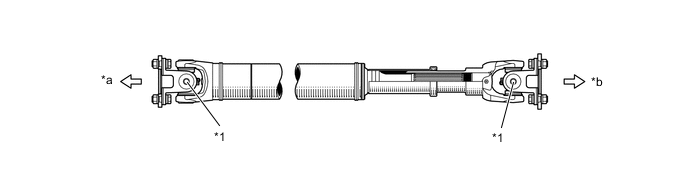

      Figure 1. Front Propeller Shaft Assembly

      A01W607C01
      *1 Hooke's Joint - -
      *a Front Differential (On 1VD-FTV engine models, the front and rear ends of the front propeller shaft are reversed.) *b Transfer (On 1VD-FTV engine models, the front and rear ends of the front propeller shaft are reversed.)

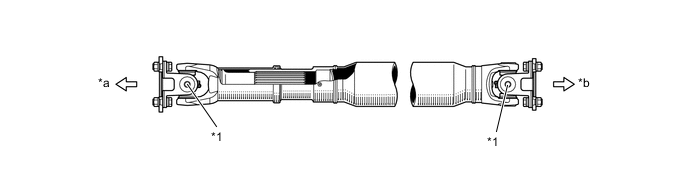

      Figure 2. Rear Propeller Shaft Assembly

      A01W5WGC01
      *1 Hooke's Joint - -
      *a Transfer *b Rear Differential
