TRANSFER


  1. GENERAL


    1. The JF2A transfer has been developed. This transfer is a compact and lightweight full-time 2-speed transfer.

    2. The center differential uses a TORSEN LSD (Limited Slip Differential).

    3. A planetary gear train is used in the reduction mechanism and a silent chain is used to reduce noise for the front drive.

    4. This transfer switches the transfer gear ratio and center differential lock using two motor actuators. A dial type transfer position switch is used to change the transfer gear ratio, and a push button type center differential lock switch is used to change the center differential free-lock.

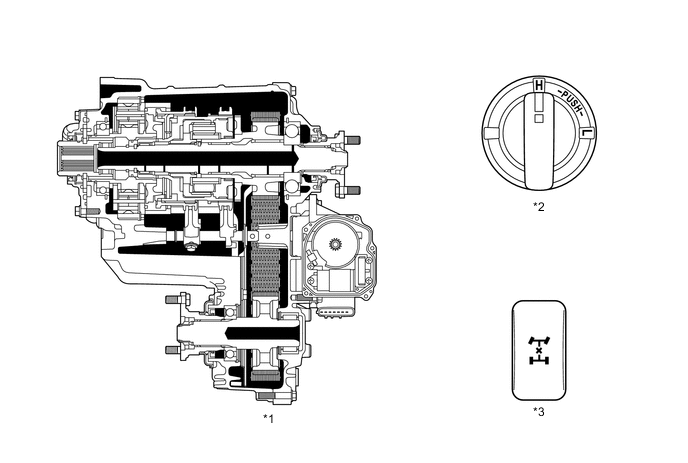

      A01W70AC01
      *1 JF2A Transfer *2 Transfer Position Switch
      *3 Center Differential Lock Switch - -
      Specifications
      Transfer Type JF2A
      Drive Type Full-time
      Gear Ratio H4 1.000
      L4 2.618
      Reduction Gear Type Single Pinion Planetary
      Center Differential Gear Type TORSEN LSD
      Oil Capacity Liters Liters (US qts, Imp.qts) 1.45 (1.53, 1.28)
      Oil Viscosity SAE 75W
      Oil Type Toyota Genuine Transfer Gear Oil LF
      Weight (Reference)* kg (lb) 50 (110.2)

      *: Weight shows the figure with the fluid fully filled.
