LIGHTING


  1. Front Exterior Light

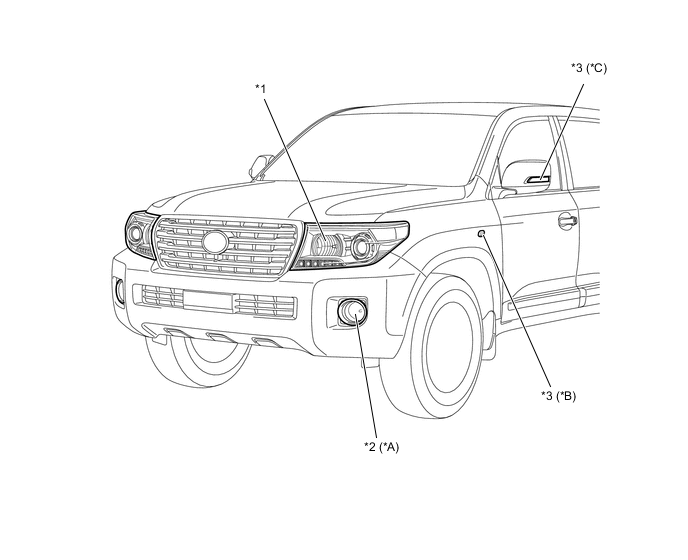

    A01W6YCC01
    *A Models with Front Fog Light *B Models with Fender Type Side Turn Signal Light
    *C Models with Outer Rear View Mirror Assembly with Side Turn Signal Light - -
    *1 Headlight Assembly *2 Front Fog Light
    *3 Side Turn Signal Light - -

    Figure 1. Models with Halogen Headlight

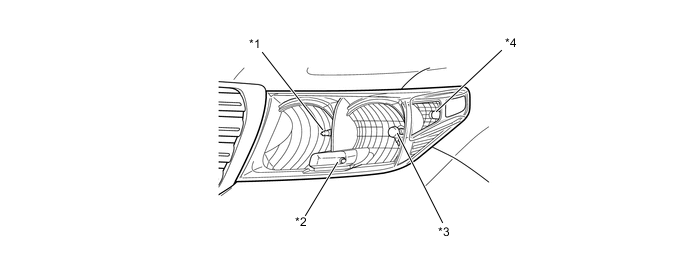

    A01W68EC01
    *1 High Beam Headlight *2 Clearance Light
    *3 Low Beam Headlight *4 Front Turn Signal Light

    Figure 2. Models with HID Headlight

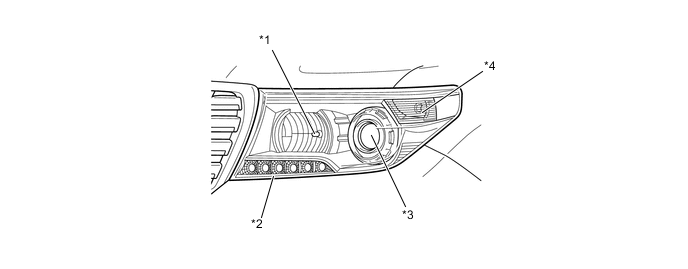

    A01W6PWC01
    *1 High Beam Headlight *2 Clearance Light
    *3 Low Beam Headlight *4 Front Turn Signal Light

    Figure 3. Models with LED Headlight

    A01W6PWC01
    *1 High Beam Headlight *2 Daytime Running Light / Front Position Light
    *3 Low Beam Headlight *4 Front Turn Signal Light
    Specifications
    Light Type Wattage
    Headlight Assembly (Models with Halogen Headlight) Low Beam Headlight Halogen Bulb 55W
    High Beam Headlight Halogen Bulb 60W
    Clearance Light Bulb 5W
    Front Turn Signal Light Bulb 21W
    Headlight Assembly (Models with HID Headlight) Low Beam Headlight Discharge Bulb 35W
    High Beam Headlight Halogen Bulb 60W
    Clearance Light LED 0.4W
    Front Turn Signal Light Bulb 21W
    Headlight Assembly (Models with LED Headlight) Low Beam Headlight LED 19W
    High Beam Headlight Halogen Bulb 60W
    Front Position Light LED 0.4W
    Daytime Running Light 8.0W
    Front Turn Signal Light Bulb 21W
    Front Fog Light (Models with Front Fog Light) Bulb 19W
    Side Turn Signal Light (Models with Outer Rear View Mirror Assembly with Side Turn Signal Light) LED 0.4W
    Side Turn Signal Light (Models with Fender Type Side Turn Signal Light) Bulb 5W

  2. Rear Exterior Light


    1. Models with Lift-up Type Back Door

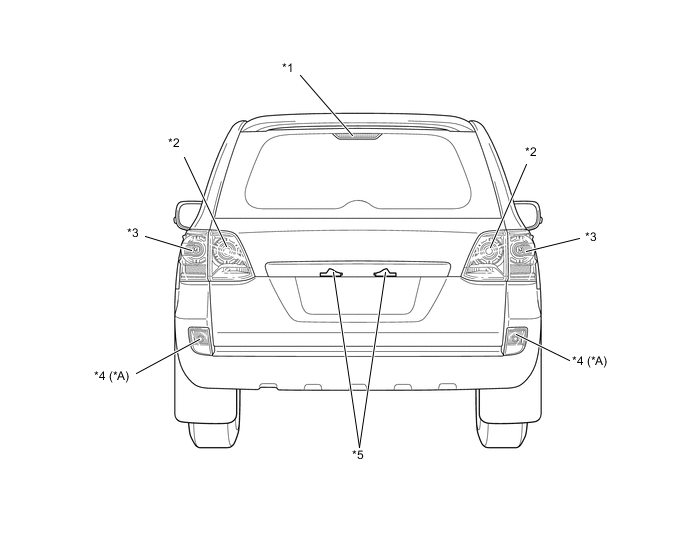

      A01W6SOC01
      *A Models with Rear Fog Light - -
      *1 Center Stop Light *2 Rear Combination Light Assembly
      *3 Rear Light Assembly *4 Rear Fog Light
      *5 License Plate Light - -

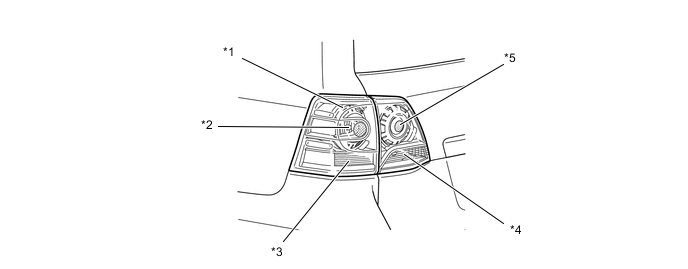

      A01W6LNC01
      *1 Taillight / Stop Light *2 Rear Turn Signal Light
      *3 Stop Light *4 Back-up Light
      *5 Taillight - -
      Specifications
      Light Type Wattage
      Rear Combination Light Assembly Taillight / Stop Light LED 0.4W / 5.8W
      Stop Light LED 5.8W
      Rear Turn Signal Light Bulb 16W
      Rear Light Assembly Taillight LED 0.5W
      Back-up Light Bulb 16W
      Center Stop Light LED 2.2W
      License Plate Light Bulb 5W
      Rear Fog Light (Models with Rear Fog Light) Bulb 21W

    2. Models with Swing Type Back Door

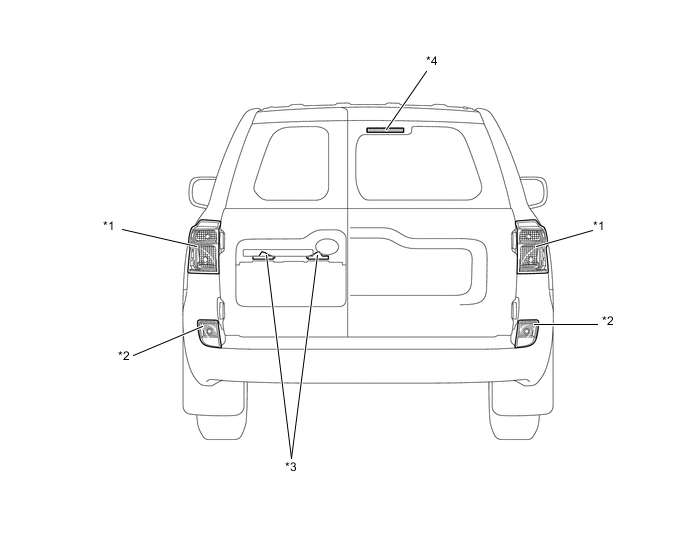

      A01W5UXC01
      *1 Rear Combination Light Assembly *2 Back-up Light
      *3 License Plate Light *4 Center Stop Light

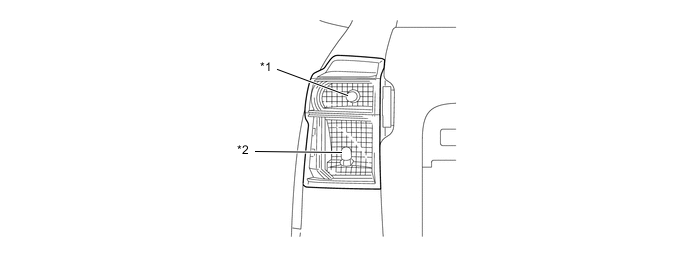

      A01W5XYC01
      *1 Rear Turn Signal Light *2 Taillight / Stop Light
      Specifications
      Light Type Wattage
      Rear Combination Light Assembly Taillight / Stop Light Bulb 5W / 21W
      Rear Turn Signal Light Bulb 21W
      Center Stop Light LED 1.0W
      License Plate Light Bulb 5W
      Back-up Light Bulb 16W

  3. PRECAUTION


    1. Ignition Switch Expressions


      1. The type of ignition switch used on this model differs depending on the specifications of the vehicle. The expressions listed in the table below are used in this section.

        Expression Ignition Switch (Position) Engine Switch (Condition)
        Ignition Switch off LOCK Off (Lock)
        Ignition Switch ACC ACC On (ACC)
        Ignition Switch ON ON On (IG)
        Engine Start START On (Start)
