1VD-FTV ENGINE


  1. General


    1. Planetary reduction type starter is used.

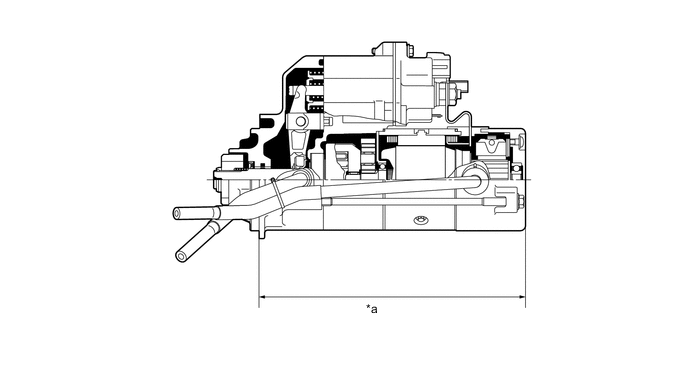

      A01W66OC01
      *a Length - -
      Type PA90S
      Planetary Reduction Type
      Rating Output 2.7 kW
      Rating Voltage 12 V
      Length*1 237.5 mm (9.35 in.)
      Weight 7500 g (16.5 lb)
      Rotating Direction*2 Clockwise

      *1: Length from the mounted area to the rear end of the starter

      *2: Viewed from pinion side
