1GR-FE ENGINE


  1. DESCRIPTION

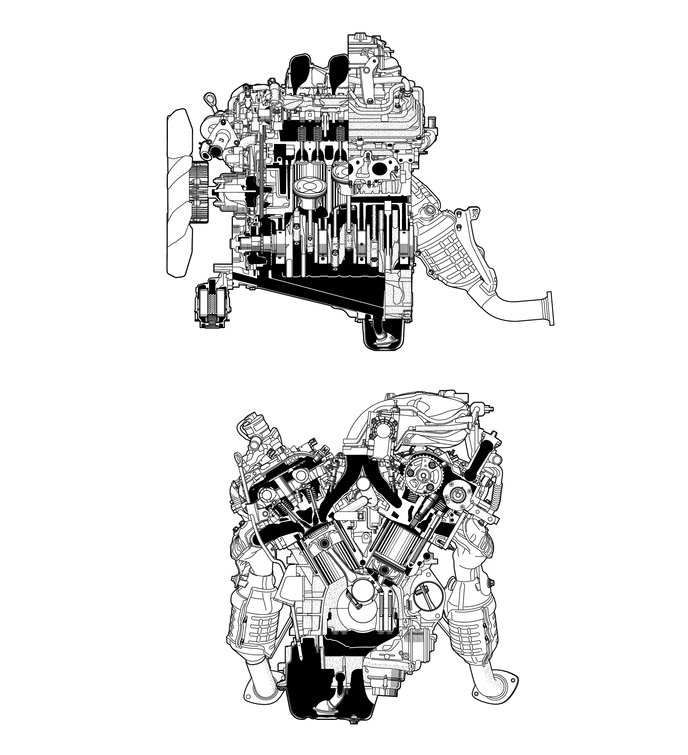

    1. The 1GR-FE engine is a 4.0-liter, 24-valve DOHC V6 engine. This engine uses the Dual Variable Valve Timing-intelligent (VVT-i) system, Direct Ignition System (DIS), Electronic Throttle Control System-intelligent (ETCS-i), and air injection control*. These control functions achieve improved engine performance, fuel economy, and clean emissions.


      • *: Models with air injection control

    2. The 1GR-FE engine is compatible with gasoline/ethanol mixed fuel which contains up to 20% ethanol (E20). Unleaded gasoline with research octane number 95 or higher can be used on this engine.

      A01W6TD
      Engine Specifications
      No. of Cyls. and Arrangement 6-cylinder, V Type
      Valve Mechanism 24-valve DOHC, Chain Drive (with Dual VVT-i)
      Combustion Chamber Pentroof Type
      Manifolds Cross-flow
      Fuel System EFI
      Ignition System DIS
      Displacement

      3956 cm3(241.4 cu. in.)
      Bore x Stroke 94.0 mm x 95.0 mm (3.70 in. x 3.74 in.)
      Compression Ratio 10.4 : 1
      Max. Output (ECC) 202 kW @ 5600 rpm
      Max. Torque (ECC) 385 N*m @ 4400 rpm

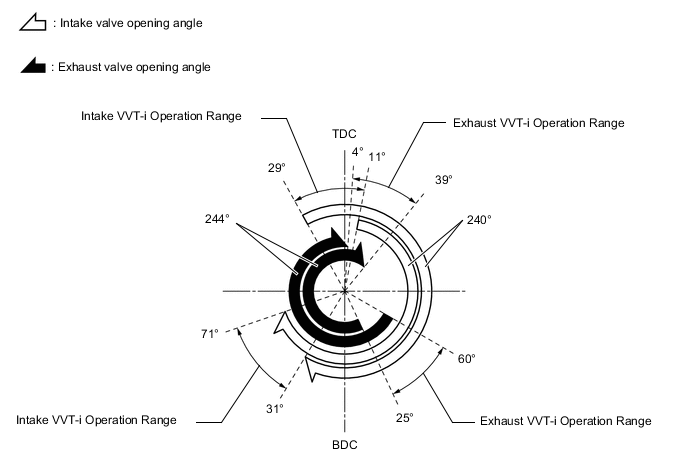

      Valve Timing Intake Open -11° to 29° BTDC
      Closed 71° to 31° ABDC
      Exhaust Open 60° to 25° BBDC
      Closed 4° to 39° ATDC
      Firing Order 1 - 2 - 3 - 4 - 5 - 6
      Fuel Gasoline or Alcohol Fuel*2
      Research Octane Number (RON) 95 or higher
      Emission Regulations EURO 2*3
      EURO 3*4
      EURO 4*5
      EURO 5*6
      Engine Service Mass*1 (Reference) 188 kg (435 lb)

      *1: The figure shown is the weight of the part without water and oil.

      *2: Mixed fuel from 0% ethanol (E0) to 20% ethanol (E20) is available.

      *3: Models for G.C.C. Countries

      *4: Models for General Countries

      *5: Models China

      *6: Optional equipment on models for China
