PRE-COLLISION SYSTEM


  1. FUNCTION OF MAIN COMPONENTS

    Component Function
    Pre-collision City Sensor

    • Acquires information about a preceding vehicle from a monocular camera sensor and laser sensor to perform pre-collision system control.

    • Sends the information display, PCS OFF warning light and skid control buzzer signals to the combination meter assembly based on pre-collision control information.
    PCS Switch

    • Turn the pre-collision system on/off.

    • Switches between the 3 warning timings (Far, Middle and Near) when pressed.
    Skid Control Buzzer Assembly Sounds according to signals from the pre-collision city sensor.
    VSC OFF Switch Switches the brake system to TRC OFF mode or VSC OFF mode when operated by the user, and also turns off the pre-collision brake assist and pre-collision brake functions (the warning function can still operate).
    Yawrate Sensor Detects the yaw rate and longitudinal and lateral acceleration speeds of the vehicle, and sends signals to the pre-collision city sensor via CAN communication.
    Speed Sensors Detects the wheel speed and sends signals to the skid control ECU.
    Stop Light Switch Assembly Detects when the brake pedal is depressed and sends signals to the pre-collision city sensor and skid control ECU.
    Steering Sensor Detects the steering angle and direction and sends signals to the pre-collision city sensor via CAN communication.
    ECM

    • Detects the shift position signal and accelerator pedal opening angle and sends that information to the pre-collision city sensor.

    • Performs engine output control based on information from the pre-collision city sensor.
    Main Body ECU (Instrument Panel Junction Block Assembly) Outputs vehicle specification information.

    Brake Actuator Assembly


    • Skid Control ECU

    • Receives a brake assist standby request signal from the pre-collision city sensor and switches the brake assist to standby mode. When a stop light switch signal is input, it activates the brake assist.

    • Receives a pre-collision brake request signal from the pre-collision city sensor, and then applies the brakes.

    • Transmits vehicle speed signals to the pre-collision city sensor.
    Combination Meter Assembly

    • Illuminates to warn the driver in accordance with signals from the pre-collision city sensor.

    • Flashes when the system is malfunctioning or temporarily disabled.

    • Illuminates when the pre-collision system is not available due to certain reasons or when pre-collision brake and pre-collision brake assist operation are disabled since the VSC system has been disabled.

    • Displays a warning message to inform or warn the driver of the system condition in accordance with signals from the pre-collision city sensor.

  2. FUNCTION

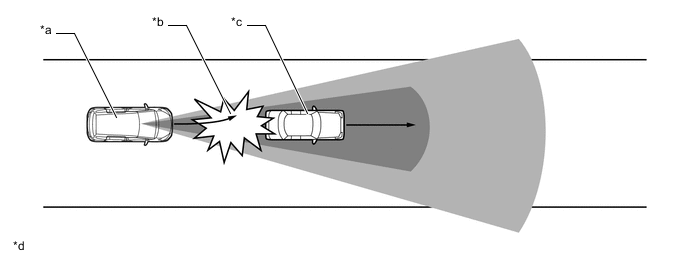

    1. The pre-collision system uses the monocular camera sensor and laser sensor inside the pre-collision city sensor to determine if there is a risk of this vehicle colliding with the preceding vehicle.

    2. When the probability of a collision is high, the pre-collision system sends a warning via the meter display and buzzer, and performs brake assist control. Additionally, when the probability of a collision is extremely high, the system performs brake control in order to reduce the impact force if a collision occurs.

    3. During brake control by the pre-collision system, the skid control ECU illuminates the stop light in order to inform any following vehicles that this vehicle is braking.

      A002K0IE02
      Text in Illustration
      *a This Vehicle *b Probability of collision extremely high
      *c Preceding Vehicle *d The illustrations shown are examples only.
      A002JOR Laser Sensor Detection Area A002K66 Monocular Camera Sensor Image Recognition Area

  3. OPERATING CONDITION


    1. The pre-collision system is enabled and determines that the possibility of a frontal collision with a vehicle is high.

      Pre-collision System Operating Conditions
      Pre-collision Warning

      • Vehicle speed is approximately 15 to 140 km/h (10 to 86 mph).

      • The relative speed between your vehicle and the vehicle ahead is greater than approximately 15 km/h (10 mph).
      Pre-collision Brake Assist

      • Vehicle speed is approximately 30 to 80 km/h (19 to 49 mph).

      • The relative speed between your vehicle and the vehicle ahead is greater than approximately 30 km/h (19 mph).

      • The brake pedal is being depressed.
      Pre-collision Braking

      • Vehicle speed is approximately 10 to 80 km/h (7 to 49 mph).

      • The relative speed between your vehicle and the vehicle ahead is greater than approximately 10 km/h (7 mph).

      Tech Tips

      In case of the following, the system will not operate:


      • Steering Sensor zero point calibration has not been completed

      • If VSC is disabled (only the pre-collision warning function will be operational)

      • If the PCS OFF warning light is flashing or illuminated

      • If the shift position is in R

    2. If either of the following situations occur while the pre-collision brake function is operating, it will be canceled:


      • The accelerator pedal is depressed strongly

      • The steering wheel is turned sharply or abruptly

    3. If the vehicle is stopped by the operation of the pre-collision brake function, the operation of the pre-collision brake function will be canceled after the vehicle has been stopped for approximately 2 seconds.

    4. When the driver is depressing the brake pedal, the system judges that the driver is preparing to avoid a collision, so the system may delay the pre-collision brake activation timing.

    5. During the following, the driver operations takes precedence and the system may not operate:


      • The accelerator pedal is depressed strongly

      • The steering wheel is turned sharply or abruptly

    6. In some situations such as the following, the system may determine that there is a possibility of a frontal collision and operate:

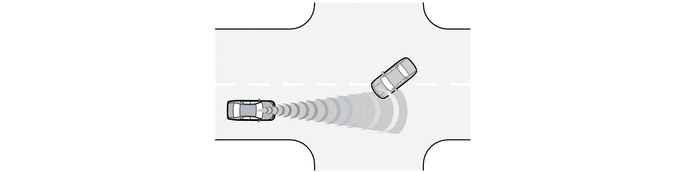

      • When passing a vehicle in an oncoming lane that is stopped to make a left/right turn

        A002K1E

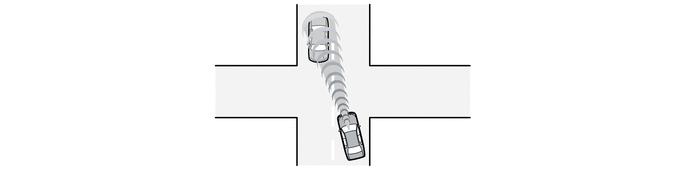

      • When passing an oncoming vehicle while making a left/right turn

        A002K91

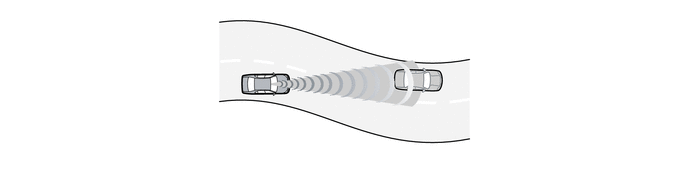

      • When driving on a road where relative location to vehicle ahead in an adjacent lane may change, such as on a winding road

        A002JUG

      • When rapidly closing on a preceding vehicle

        A002JQV

      • If the front of the vehicle is raised or lowered, such as when the road surface is uneven or undulating

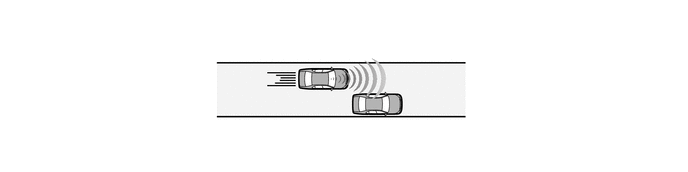

      • When passing extremely close to a vehicle or structural object

        A002K08

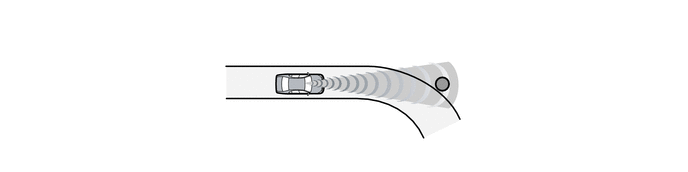

      • When there is a vehicle or object by the roadside at the entrance of a curve

        A002JV4

      • When driving on a narrow path surrounded by a structure, such as in a tunnel or on an iron bridge

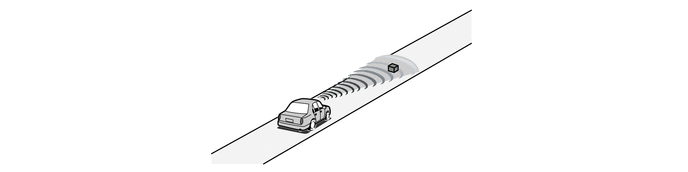

      • When there is a reflective object (manhole cover, steel plate, etc.), steps, dip, or a protrusion on the road surface or roadside

        A002JQP

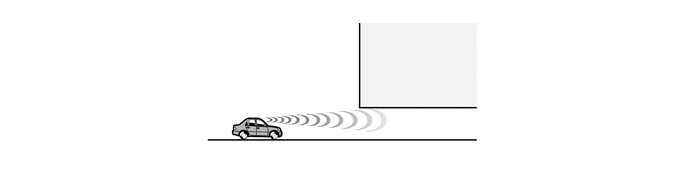

      • When passing through a place with a low structure above the road (low ceiling, traffic sign, etc.)

        A002JQN

      • When there is a structural object (overpass, traffic sign, billboard, street light, etc.) at the top of an uphill road

        A002K93

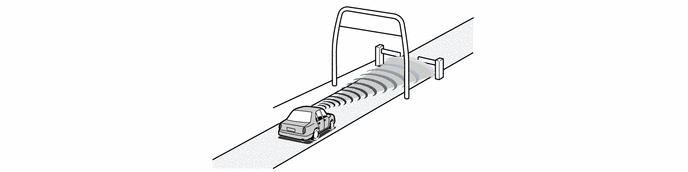

      • When rapidly closing on an electric toll gate barrier, parking area barrier, or other barrier that opens and closes

        A002K7L

      • When using an automatic car wash

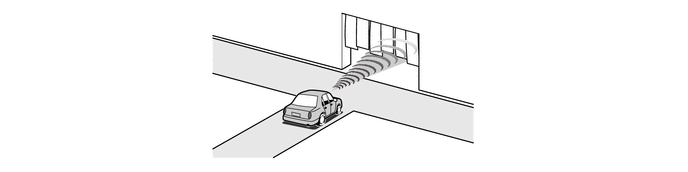

      • When approaching a low hanging object that may contact the vehicle, such as a banner, tree branches or thick grass

        A002K32

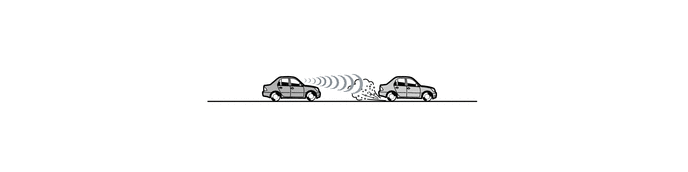

      • When the vehicle is hit by water, snow, dust, etc. from a vehicle ahead

        A002K3W

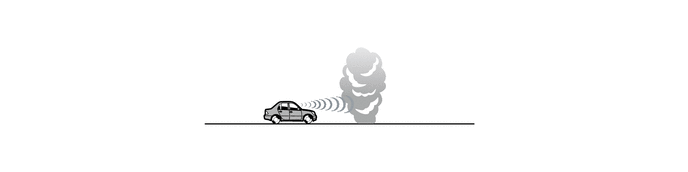

      • When driving through steam or smoke

        A002JT0

      • When there are patterns or paint on the road or a wall that may be mistaken for a vehicle

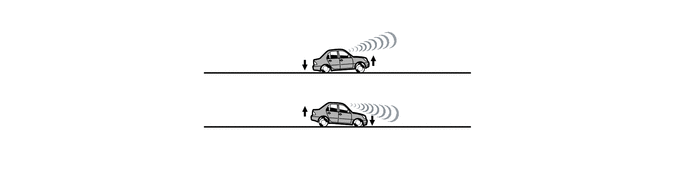

      • When the front part of the vehicle is raised or lowered

        A002K8Q

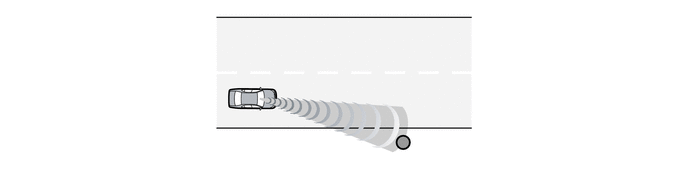

      • When the pre-collision city sensor is misaligned due to a strong impact being applied to the pre-collision city sensor, etc.

        A002K59

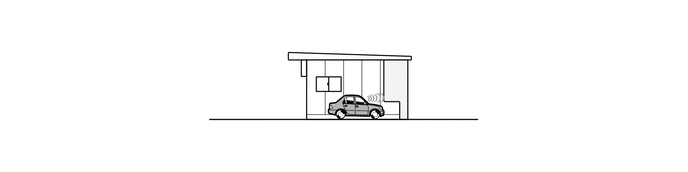

      • When the vehicle is being parked in a place where there is a low hanging object at the height of the pre-collision city sensor

        A002JP6

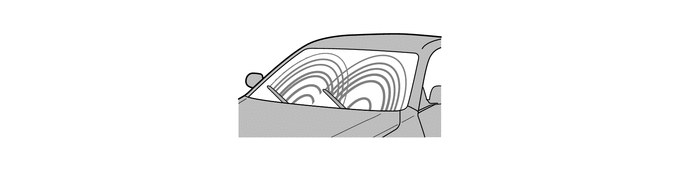

      • When the windshield glass is covered with raindrops, etc.

        A002JYU

    7. In some situations such as the following, a vehicle may not be detected by the pre-collision city sensor, preventing the system from operating properly:


      • If an oncoming vehicle is approaching your vehicle

      • When approaching the side or front of a vehicle

      • If a preceding vehicle has a small rear end, such as an unloaded truck

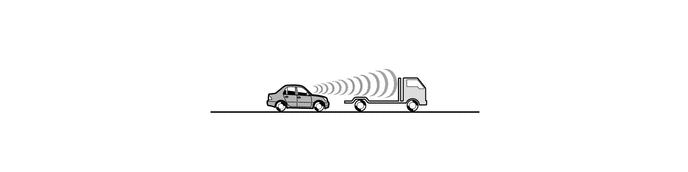

      • If a preceding vehicle has a low rear end, such as a low bed trailer

        A002JPJ

      • If a vehicle ahead is carrying a load which protrudes past its rear bumper

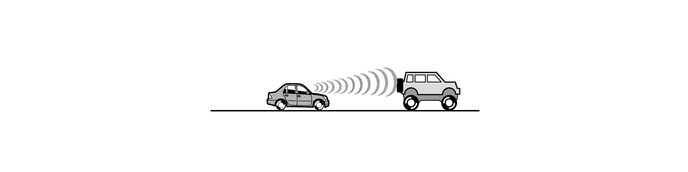

      • If a vehicle ahead has extremely high ground clearance

        A002K4S

      • If a vehicle ahead is irregularly shaped, such as a tractor or side car

      • If the sun or other light is shining directly on a vehicle ahead

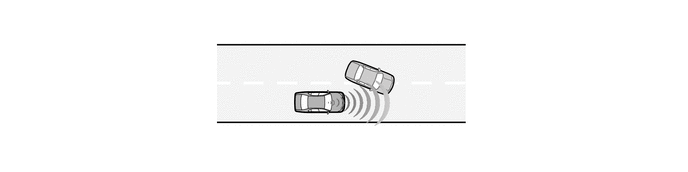

      • If a vehicle cuts in front of your vehicle or emerges from beside a vehicle

        A002JTT

      • If a vehicle ahead makes an abrupt maneuver (such as sudden swerving, acceleration or deceleration)

      • When suddenly cutting behind a preceding vehicle

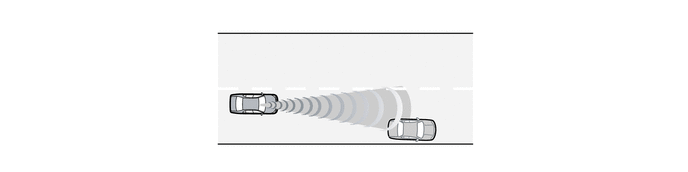

      • When a vehicle ahead is not directly in front of your vehicle

        A002K8H

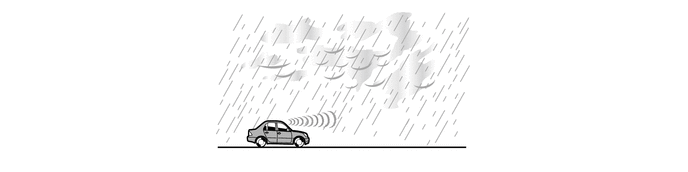

      • When driving in inclement weather such as heavy rain, fog, snow or a sand storm

        A002K6Z

      • When the vehicle is hit by water, snow, dust, etc. from a vehicle ahead

      • When driving through steam or smoke that may obscure vehicles ahead

      • When driving in a place where the surrounding brightness changes suddenly, such as at the entrance or exit of a tunnel

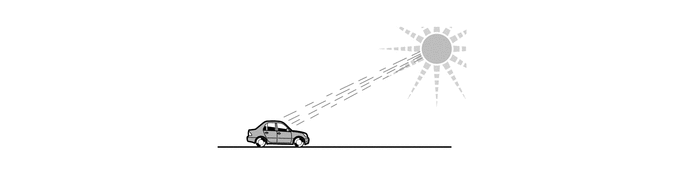

      • When a very bright light, such as the sun or the headlights of oncoming traffic, shines directly into the pre-collision city sensor

        A002K7I

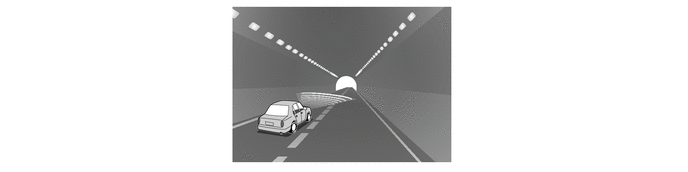

      • When the surrounding area is dim, such as at dawn or dusk, or while at night or in a tunnel

        A002JPB

      • While driving on a curve and for a certain amount of time after driving on a curve

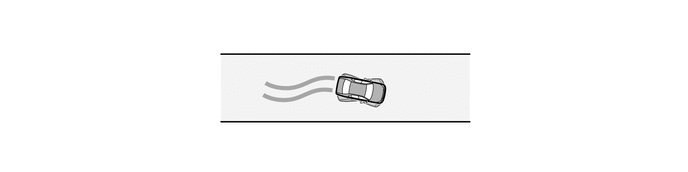

      • If your vehicle is skidding

        A002JTU

      • When the front part of the vehicle is raised or lowered

        A002K8Q

      • If the wheels are misaligned

      • If a wiper blade is blocking the pre-collision city sensor

      • The vehicle is wobbling

      • The vehicle is being driven at extremely high speeds

      • When driving on roads with sharp bends or uneven surfaces

      • When a preceding vehicle is a poor reflector of laser

      • When the pre-collision city sensor is misaligned due to a strong impact being applied to the pre-collision city sensor, etc.

        A002K59

    8. In some situations such as the following, sufficient braking force may not be obtained, preventing the system from performing properly:


      • If the braking functions cannot operate to their full extent, such as when the brake parts are extremely cold, extremely hot, or wet

      • If the vehicle is not properly maintained (brakes or tires are excessively worn, improper tire inflation pressure, etc.)

      • When the vehicle is being driven on a gravel road or other slippery surface

    9. If the PCS OFF warning light flashes and a warning message is displayed on the multi-information display, the pre-collision system may be temporarily unavailable or there may be a malfunction in the system.


      1. In the following situations, the warning light will turn off, the message will disappear and the system will become operational when normal operating conditions return:


        • When the area around the pre-collision city sensor is hot, such as in the sun

        • When the windshield glass is fogged up, or covered with condensation or ice

        • When the pre-collision city sensor or the area around the sensor is cold, such as in an extremely cold environment

        • If the area in front of the pre-collision city sensor is obstructed, such as when the hood is open

      2. If the PCS OFF warning light continues to flash or the warning message does not disappear, the system may be malfunctioning.

    10. If VSC is disabled, the pre-collision brake assist and pre-collision brake functions are also disabled. However, the pre-collision warning function will still operate.

  4. CONSTRUCTION


    1. Pre-collision City Sensor

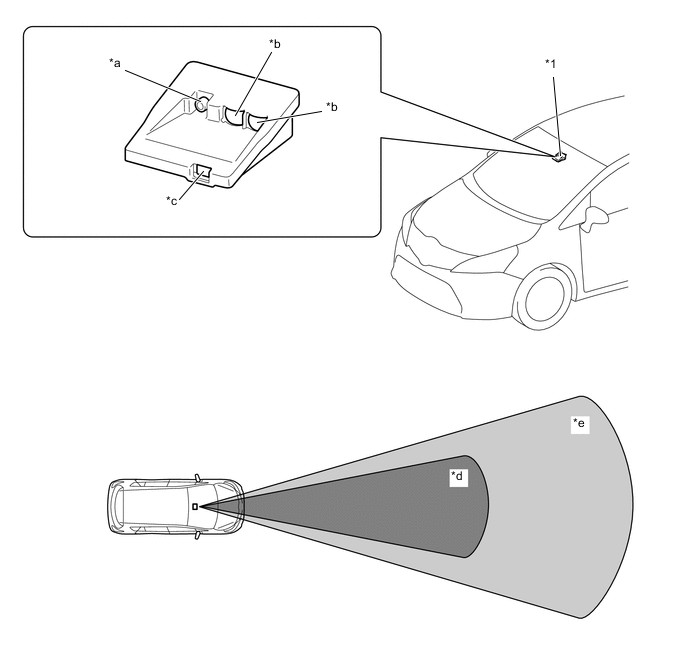

      1. The pre-collision city sensor consists of a laser sensor, monocular camera sensor and CSP ECU. 2 types of sensors such as the laser sensor and camera sensor are used to ensure accurate and reliable detection.

        A002JVWE02
        *1 Pre-collision City Sensor - -
        *a Monocular Camera Sensor *b Laser Sensor (Light Reception Area)
        *c Laser Sensor (Irradiation Area) *d Laser Sensor Recognition Range
        *e Monocular Camera Sensor Recognition Range - -

      2. Monocular Camera Sensor


        • The camera sensor detects three-dimensional objects on or near the road ahead while driving and determines whether it is necessary to avoid a collision with the object.

      3. Laser Sensors


        • The laser sensors detect vehicles or other objects on or near the road ahead while driving and determine whether a collision is imminent based on the location, speed and heading of the vehicle or object.

    2. Combination Meter Assembly


      1. The combination meter assembly uses the multi-information display, PCS OFF warning light and skid control buzzer assembly to provide the driver with pre-collision system warnings and indications.

      2. If the pre-collision city sensor determines that the possibility of a collision is high, it sends a signal to the combination meter assembly. Upon receiving this signal, the combination meter assembly indicates a warning using the multi-information display and skid control buzzer assembly. Details are indicated below.

        When there is a high possibility of a collision
        Multi-information Display Master Warning Light PCS Warning Light Buzzer
        BRAKE! - - Sounds Continuously

      3. When the system is not available, the following warning occurs to warn the driver.

        When a system malfunction is detected
        Displayed Status Possible Conditions Multi-information Display Master Warning Light PCS Warning Light Buzzer
        System Failure System Failure PRE-COLLISION SYSTEM MALFUNCTION VISIT YOUR DEALER Illuminates Flashes Sounds once
        System Voltage Abnormal Auxiliary battery voltage has decreased, etc. PRE-COLLISION SYSTEM UNAVAILABLE - -
        Pre-collision City Sensor Temperature Abnormal Operating temperature range of pre-collision city sensor exceeded FRONT CAMERA SYSTEMS UNAVAILABLE WAIT A MOMENT Illuminates Sounds once
        Pre-collision City Sensor Dirty Windshield glass is dirty, frosted or fogged up FRONT CAMERA SYSTEMS UNAVAILABLE CLEAN WINDSHIELD Illuminates Sounds once
        When the VSC OFF switch is pressed
        Multi-information Display Master Warning Light PCS Warning Light VSC OFF Indicator Light
        VSC TURNED OFF PRE-COLLISION BRAKE SYSTEM UNAVAILABLE - Illuminates Illuminates

    3. PCS Switch


      1. A PCS switch is provided to disable the system. When pressed and held for approximately 3 seconds, the pre-collision system will be disabled. A message will be displayed for 6 seconds and the pre-collision warning light will be illuminated. When the switch is pressed again while the system is disabled, the system will be reenabled.

      2. The switch is also used to change the warning timing in 3 levels: far, middle, near. The warning timing changes in the order below each time the switch is pressed.

        A002JX4E03

  5. DIAGNOSIS


    1. Initial Check


      1. The pre-collision city sensor performs an initial check on the system for approximately 3 seconds after the ignition switch has been turned to ON.

    2. Monitor Function


      1. After completing the initial check, the pre-collision system becomes ready to operate. During this time, the pre-collision city sensor periodically monitors the system for any malfunctions.

    3. Diagnostic Trouble Code (DTC)


      1. If the pre-collision city sensor detects a malfunction in the pre-collision system, it stores a 5 digit Diagnostic Trouble Code (DTC) in memory.
