CVT SYSTEM
| *1 | E.F.I. Engine Coolant Temperature Sensor | *2 | Throttle Body Assembly
|
| *3 | Crank Position Sensor | *4 | ECM |
| *5 | Park/Neutral Position Switch Assembly | *6 | CVT Fluid Warmer (Transmission Oil Cooler) |
| *7 | Transmission Revolution Sensor (NIN) | *8 | Oil Pressure Sensor |
| *9 | Transmission Revolution Sensor (NOUT) | *10 | Shift Solenoid Valve SLP |
| *11 | CVT Fluid Temperature Sensor | *12 | Shift Solenoid Valve SC |
| *13 | Shift Solenoid Valve SLS | *14 | Shift Solenoid Valve SLU |
| *15 | Shift Solenoid Valve SL | *16 | Transmission Revolution Sensor (NT) |

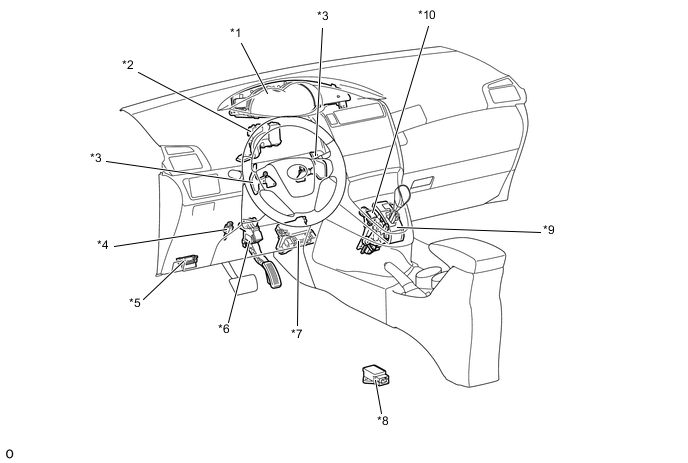

| *1 | Combination Meter Assembly | *2 | Central Gateway ECU |
| *3 | Shift Paddle Switch (Transmission Shift Switch Assembly) | *4 | Stop Light Switch Assembly |
| *5 | DLC3 | *6 | Accelerator Pedal Position Sensor |
| *7 | Air Conditioning Amplifier Assembly | *8 | Yaw Rate Sensor |
| *9 | Shift Lock Control Unit Assembly
|
*10 | SPORT Mode Switch (Pattern Select Switch Assembly) |
