LANE DEPARTURE ALERT SYSTEM

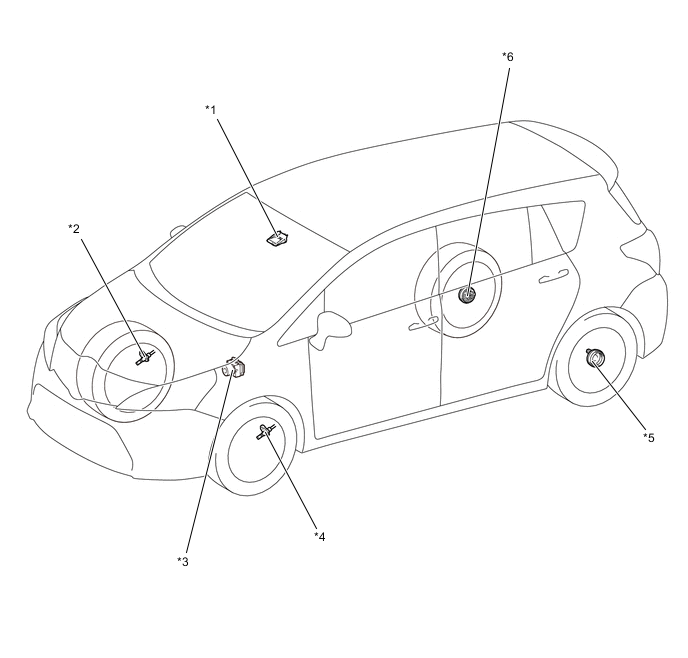

| *1 | Pre-collision City Sensor | *2 | Front Speed Sensor RH |
| *3 | Skid Control ECU | *4 | Front Speed Sensor LH |
| *5 | Rear Speed Sensor LH | *6 | Rear Speed Sensor RH |
| *1 | Combination Meter Assembly - Multi-information Display - Buzzer |
*2 | Headlight Dimmer Switch Assembly |
| *3 | Main Body ECU (Instrument Panel Junction Block Assembly) | *4 | Steering Angle Sensor |
| *5 | Yawrate Sensor | *6 | Steering Pad Switch Assembly - LDA Main Switch |
| *7 | LDA Indicator Light | - | - |
