AUDIO AND VISUAL SYSTEM

FUNCTION OF MAIN COMPONENTS

• *1: Models with base audio system

• *2: Models with display audio system or navigation system

• *3: Models with navigation ECU

• *4: Models with color type multi-information display

• *5: Models with No. 1 stereo jack adapter assembly

• *6: Models with parking assist monitor system

• *7: Models with 8-speaker system

FUNCTION

1. Bluetooth Audio System




   1. The functions of the Bluetooth audio system that can be used vary with the version of the Audio/Video Remote Control Profile (AVRCP) supported by the Bluetooth audio player that is being used.

   2. The available Bluetooth audio system functions differ in accordance with each Audio/Video Remote Control Profile (AVRCP) as follows:

      Function	Outline	Audio/Video Remote Control Profile (AVRCP)
      		Version 1.0	Version 1.3	Version 1.4 or higher
      Play	Starts playing the music.	○	○	○
      Stop	Stops playing the music.	○	○	○
      Pause	Pauses the music.	○	○	○
      Track Up/Down	Changes the track.	○	○	○
      Fast Up/Down	Fast-forwards or reverses the music.	○	○	○
      Album Up/Down	Changes the album.	-	○	○
      Repeat (Single Repeat)	Repeats the selected music.	-	○	○
      Random (All Track Random)	Plays all the music in the portable audio device at random.	-	○	○
      Music Information	Shows the track number, playtime, track name, artist name and album name.	-	○	○
      Remaining Battery Level	Shows the remaining battery level of the Bluetooth audio player.	-	○	○
      Music List	Shows the music list.	-	-	○

      Tech Tips

      ○: Available

      -: Not available

   3. The functions of the Bluetooth audio system are shown in the following table:

      Function		Outline
      Set Bluetooth Audio Player	Registering a Bluetooth Audio Player	In order to use the Bluetooth audio system with a Bluetooth audio player, it is necessary to register it with the audio head unit. Once a Bluetooth audio player is registered, the Bluetooth audio system connects automatically.
      	Deleting a Bluetooth Audio Player	The user can delete a Bluetooth audio player.
      	Connecting a Bluetooth Audio Player	The user can to select whether to connect to the Bluetooth audio player automatically or manually. If the Bluetooth audio player has been registered and automatic connection is enabled, the Bluetooth audio player will be connected automatically.
      Change Settings of Bluetooth Audio	Selecting a Bluetooth Audio Player	If the user has registered a second Bluetooth audio player, either one can be selected for connection.
      	Displaying a Bluetooth Audio Player	The user can view the information of the registered Bluetooth audio player on the system.
      	Changing the Connection Method	The user can select the connection method. With this function, the user can select whether to make a connection from the audio head unit to the Bluetooth audio player or from the Bluetooth audio player to the audio head unit.
      	Displaying the Bluetooth Audio Setting	The user can see the Bluetooth audio information settings on the system.
      	Changing the Device Name or Passcode	The user can change the device name or passcode.
      	Initializing the Bluetooth Audio Settings	The user can initialize the settings.

2. Bluetooth Hands-free System




   1. Bluetooth is a short-distance, high-speed wireless data communication standard that uses the 2.4 GHz frequency band prescribed by the Bluetooth Special Interest Group (SIG).

   2. This Bluetooth hands-free system enables drivers to place or receive phone calls without operating a cellular phone.

   3. The Bluetooth hands-free system is included in the audio head unit.

   4. The major hands-free functions are shown in the following table:

      Function					Audio System
      					Base Audio System	Display Audio System or Navigation System
      Calling with Bluetooth Phone	By Dialing				○	○
      	By Contacts				○*1 (1000 Items)	○*2 (1500 Items)
      	By Call History*3		Dialed Number		○ (10 Items)	○ (15 Items)
      			Received Call		○ (10 Items)	○ (15 Items)
      			Missed Call		○ (10 Items)	○ (15 Items)
      			All Call History		○	○
      	By Speed Dial*3				○	-
      	By Favorites*3				-	○
      	By Point Of Interest (POI) Call				-	○*4
      	By Short Message Service (SMS)/Multimedia Message Service (MMS)/e-mail		Reception Screen		-	○
      			Text Message		-	○
      	By Selecting SOS Screen Button				-	○*4
      	By Using the Toyota Assistance				-	○*4
      Receive and Reply Message with Bluetooth Phone	Receiving Call*3		Received Manually		○	○
      			Refused		-	○
      	Interrupt Call*3				○	○
      	Tone Sending		By Dial		○	○
      			By Registered Number		○	○
      	Receive Message				-	○
      	Replying (Quick Reply)				-	○
      Recognition/Connection	Registering Bluetooth Phone				○ (5 Bluetooth Phones)	○ (4 Bluetooth Phones)
      	Connecting Bluetooth Phone		Connected Automatically		○	○
      			Connected Manually		○	○
      Setting	Setting Automatic Connection				○	○

      Tech Tips

      ○: Equipped

      -: Not equipped

      *1: It is possible to have up to 1000 items per telephone (Bluetooth phone).

      *2: It is possible to have up to 1500 items per telephone (Bluetooth phone).

      *3: Can be performed while driving.

      *4: Models with navigation system

   5. The hands-free functions of the radio receiver assembly are shown in the following table. However, for safety, some functions may not be selectable when the vehicle is being driven.

      Function			Outline
      Calling with a Bluetooth Phone	By Dial		The user can make a call by inputting a telephone number.
      	By Contacts		The user can make a call by using the phonebook data that has been transferred from the user's cellular phone. The user can register up to 1000 items in the contact list.
      	By Call History*1	Dialed Number	The user can make a call by selecting a previously dialed number. The system remembers up to 10 dialed numbers. If more than 10 numbers have been dialed, the oldest number will no longer be remembered.
      		Received Call	The user can make a call by selecting the telephone number of a received call. When a call is received, the system will remember the last 10 numbers. If more than 10 calls have been received, the oldest number will no longer be remembered.
      		Missed Call	The user can make a call by selecting the telephone number of a missed call. The system remembers up to 10 missed call numbers. If more than 10 calls have been missed, the oldest number will no longer be remembered.
      		All Call History	The user can make a call by selecting a telephone number from the entire call history. However, the number of telephone numbers in the call history that the user can use is limited while driving.
      	By Speed Dial*1		The user can make a call by using registered telephone numbers selected from the contact list, dialed numbers or received calls.
      Receiving a Call using a Bluetooth Phone*1			When a call is received, the receive screen is displayed with a sound.
      Talking on a Bluetooth Phone*1			While the user is talking on the phone, the talking screen is displayed.
      Changing Bluetooth Phone Settings	Speed Dial Registration		The user can register a desired telephone number from the phonebook, dialed numbers or received calls. Up to 5 speed dial numbers can be registered.
      	Volume Settings		The user can set the volume.
      	Contacts Settings		Transferring a telephone number: The user can transfer telephone numbers from a Bluetooth phone to the system. Up to 1000 items (up to 3 numbers per entry) can be registered in the contact list.
      			Deleting data: The user can delete the data.*2
      			Deleting all the phone data: The user can delete all the phone data.*2
      			Deleting the call history data: The user can delete the call history data individually or all at once.*2
      Setting a Bluetooth Phone	Bluetooth Phone Registration		In order to use the hands-free function of a Bluetooth phone, it is necessary to register it to the audio head unit. Once a Bluetooth phone is registered, it connects automatically. The user can register up to 5 Bluetooth phones.*3
      	Bluetooth Phone Selection*1		When 2 or more registered Bluetooth phones are in the cabin, it is necessary to select which phone to use to prevent the lines from being crossed. Only the selected phone is available for use as a hands-free phone. The phone registered last is automatically selected.
      	Deleting a Bluetooth Phone		The user can delete a registered Bluetooth phone from the radio receiver assembly.

      Tech Tips

      *1: Can be operated while driving.

      *2: PBAP non-compatible phone, or PBAP compatible phone with the automatic telephone number transfer function set to off.

      *3: The maximum number of Bluetooth devices that can be registered (including Bluetooth phones and Bluetooth audio players)

   6. The hands-free functions of the Radio and display receiver assembly are shown in the following table. However, for safety, some functions may not be selectable when the vehicle is being driven.

      Function			Outline
      Calling with a Bluetooth Phone	By Dial		The user can call by inputting a telephone number.
      	By Contacts*1		The user can call by using the contacts data that has been transferred from the user's cellular phone. The user can register up to 1500 items in the contacts.
      	By Call History*1	Dialed Number	The user can call by selecting a previously dialed number. The system remembers up to 15 dialed numbers. If more than 15 numbers have been dialed, the oldest number will no longer be remembered.
      		Received Call	The user can call by selecting the telephone number of a received call. When a call is received, the system will remember the last 15 numbers. If more than 15 calls have been received, the oldest number will no longer be remembered.
      		Missed Call	The user can call by selecting the telephone number of a missed call. The system remembers up to 15 missed call numbers. If more than 15 calls have been missed, the oldest number will no longer be remembered.
      		All Call History	The user can call by selecting a telephone number from all call history. However, the number of telephone numbers available for the user to choose from is limited while driving.
      	By Favorites*1		The user can call by using registered telephone numbers selected from the contacts, dialed numbers or received calls.
      	By Short Message Service (SMS)/ Multimedia Messaging Service (MMS)/e-mail	Reception Screen*1	The user can call by operating a switch when "Call" is displayed on the incoming message screen.
      		Text Messages*1	The user can call by operating a switch when telephone numbers are displayed in blue in the text message.
      	By Point Of Interest (POI)*2		The user can call by operating a switch when "Call" is displayed on the navigation screen.
      	By Selecting SOS Screen Button*2		The user can make a 112 emergency call by operating a switch when "SOS" is displayed on the dial screen. This call can only be placed in a country where the 112 emergency call service is available.
      	By Using the Toyota Assistance*2		The user can make a call to Toyota Assistance service by operating a switch when "Call Assistance" is displayed on the Toyota Assistance screen.
      Receiving a Call Using a Bluetooth Phone*1			When a call is received, the receiving screen is displayed with a sound.
      Talking on a Bluetooth Phone*1			While the user is talking on the phone, the talking screen is displayed.
      Changing Bluetooth Phone Settings	Favorites Registration		The user can register a desired telephone number from the contacts, dialed numbers or received calls. Up to 15 favorite telephone numbers can be registered.
      	Volume Settings		The user can set the volume.
      	Contacts Settings		Transferring a telephone number: The user can transfer telephone numbers from the Bluetooth phone to the system. Up to 1500 data items (up to 4 numbers per entry) can be registered in the contacts.
      			Automatically transferring a telephone number: When a PBAP-compatible phone is connected, the contacts data of the phone can be automatically transferred.
      			Registering phone numbers: The user can register phone numbers in the contacts.*3
      			Adding data to the contacts: The user can add data to the contacts.*3
      			Editing data: The user can edit the registered data.*3
      			Deleting all the phone data: The user can delete all the phone data.*3
      			Deleting data: The user can delete the data.*3
      			Deleting the call history data: The user can delete the call history data all at once.*3
      	Screen Settings		Receiving call display: The user can select the method of the receiving call display.
      			Contacts data and call history data transfer condition: The user can select whether a message is displayed or not while transferring contacts data and call history data.
      			Bluetooth connection status at startup: When the ignition switch is turned to ACC or ON, the Bluetooth phone is automatically connected and the connection will be displayed.
      			Setting initializing: The user can initialize the settings.
      Registering and Selecting a Bluetooth Phone	Bluetooth Phone Registration		In order to use the hands-free function of a Bluetooth phone, it is necessary to register it with the radio receiver assembly. Once a phone is registered, the hands-free function connects automatically.
      	Bluetooth Phone Selection*1		When 2 or more registered Bluetooth phones are in the cabin, it is necessary to select which phone to use with the system to prevent the lines from being crossed. Only the selected phone is available for use as a hands-free phone. The phone registered last is automatically selected.
      	Bluetooth Information Confirmation and Editing		The user can set, change and initialize the information of the Bluetooth phone displayed on the screen.
      	Deleting a Bluetooth Phone		The user can delete a registered Bluetooth phone from the audio head unit.

      Tech Tips

      *1: Can be performed while driving.

      *2: Models with navigation system

      *3: PBAP non-compatible, or PBAP-compatible phone with the automatic telephone number transfer function set to off.

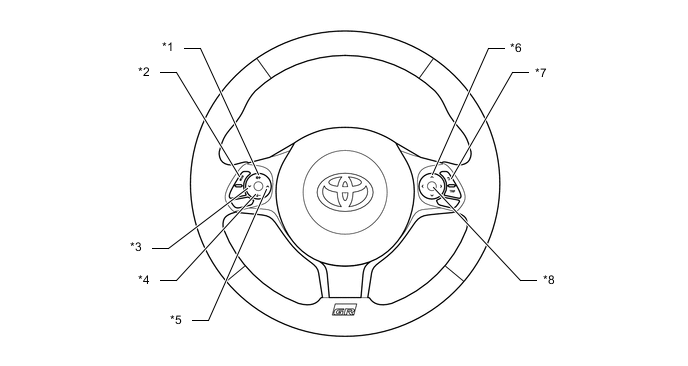

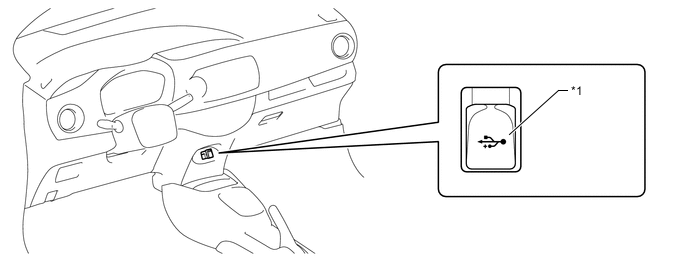

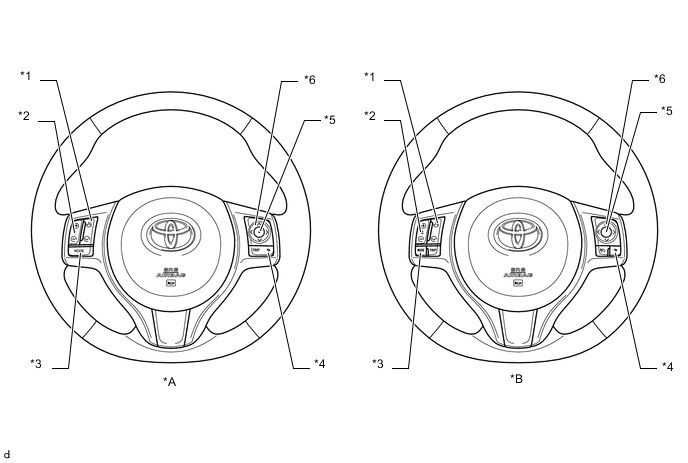

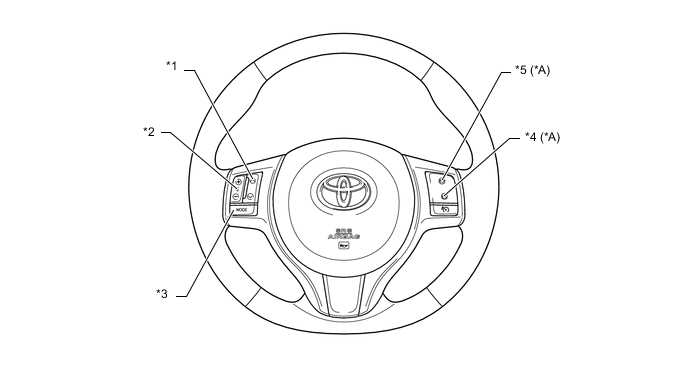

CONSTRUCTION
