AUDIO AND VISUAL SYSTEM

*A	Models with 8-speaker System	*B	Models with Pole Antenna
*C	Models with Parking Assist Monitor System	*D	Models with Shark Fin Antenna
*1	No. 2 Front Speaker Assembly LH	*2	No. 2 Front Speaker Assembly RH
*3	No. 3 Front Speaker Assembly LH	*4	No. 3 Front Speaker Assembly RH
*5	No. 1 Front Speaker Assembly RH	*6	Roof Antenna Pole Sub-assembly
*7	No. 1 Amplifier Antenna Assembly	*8	Rear Speaker Assembly RH
*9	Rear Television Camera Assembly	*10	Rear Speaker Assembly LH
*11	No. 1 Front Speaker Assembly LH	-	-
*a	The illustrations shown are examples only.	-	-

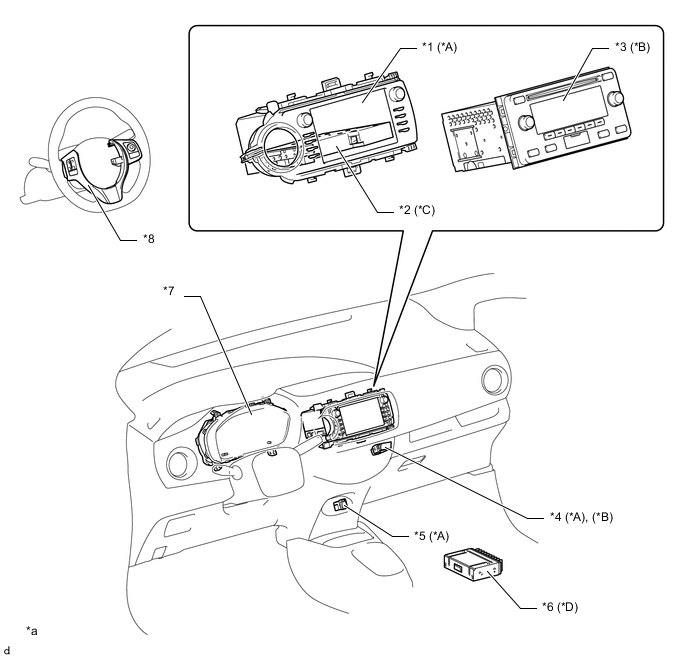

*A	Models with Display Audio System or Navigation System	*B	Models with Base Audio System
*C	Models with Navigation ECU	*D	Models with 8-speaker System
*1	Radio and Display Receiver Assembly	*2	Extension Box (Navigation ECU)
*3	Radio Receiver Assembly	*4	Amplifier Microphone Assembly
*5	No. 1 Stereo Jack Adapter Assembly	*6	Stereo Component Amplifier Assembly
*7	Combination Meter Assembly	*8	Steering Pad Switch Assembly
*a	The illustrations shown are examples only.	-	-
