AUDIO AND VISUAL SYSTEM

OUTLINE

Audio Head Unit
1. 1 type of radio receiver assembly and 1 type of radio and display assembly are available for the audio head unit.
2. A radio and display assembly has a Thin Film Transistor (TFT) 6.1-inch display, an audio function, a Bluetooth audio system, a Bluetooth hands-free system, a parking assist monitor system, and a stereo jack adapter. In addition, when an optional extension module assembly is mounted, a navigation system and other extension functions can be made available.
3. Discs with the marks shown below can be played.
Speaker System
1. 2 types of speaker system, 6-speaker and 8-speaker, are available on both the radio receiver assembly and radio and display assembly.
2. For radio less models, 6-speaker system is available.
Bluetooth Audio System
1. The Bluetooth audio system enables the users to listen to the music stored in a Bluetooth compliant portable audio device (Bluetooth audio player) through a Bluetooth connection.
2. The Bluetooth audio system can operate a Bluetooth audio player through the audio head unit.

  "Bluetooth" is a trademark owned by Bluetooth SIG, Inc.
Bluetooth Hands-free System
1. The Bluetooth hands-free system enables drivers to place or receive phone calls using a cellular phone without releasing their hands from the steering wheel.
2. For safety, some functions of the Bluetooth hands-free system may not be selectable while the vehicle is being driven.
Steering Pad Switch
1. Steering pad switch assembly that supports the respective equipment is available.

Stereo Jack Adapter Assembly

An AUX port provided to enable playing music data that is stored on portable audio devices.

A USB port provided to enable playing music data that is stored on a USB memory stick or an iPod.

Tech Tips

1. Supported iPod models and firmware versions are listed below:

iPod Model	Generation	Supported Firmware Version
iPod	5G	1.3 or higher
iPod nano	1G	1.3.1 or higher
	2G	1.1.3 or higher
	3G	1.1.3 or higher
	4G	1.0.4 or higher
	5G	1.0.2 or higher
	6G	1.0 or higher
iPod touch	1G	iOS 3.1.3 or higher
	2G	iOS 3.1.3 or higher
	2G	iOS 4.2.1 or higher
	Late 2009 (8 GB)	iOS 3.1.3 or higher
	Late 2009 (8 GB)	iOS 4.2.1 or higher
	3G (32 GB/64 GB)	iOS 3.1.3 or higher
	3G (32 GB/64 GB)	iOS 4.2.1 or higher
	4G	iOS 4.2.1 or higher
iPod classic	1G	1.1.2 or higher
	2G (120 GB)	2.0.1 or higher
	2009 (160 GB)	2.0.4 or higher
iPhone	1G (iPhone)	iOS 3.1.3 or higher
	2G (iPhone 3G)	iOS 3.1.3 or higher
	2G (iPhone 3G)	iOS 4.2.1 or higher
	3G (iPhone 3GS)	iOS 3.1.3 or higher
	3G (iPhone 3GS)	iOS 4.2.1 or higher
	iPhone 4	iOS 4.2.1 or higher

2. USB and iPod operation functions may not operate in certain conditions or with certain models.

3. iPod is a trademark of Apple Inc. that has been registered in the U.S.A. and other countries.

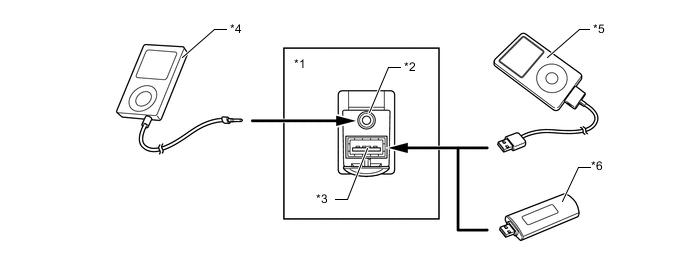

Text in Illustration
*1	Stereo Jack Adapter Assembly	*2	AUX Port
*3	USB Port	*4	Portable Audio
*5	iPod	*6	USB Memory Stick

SPECIFICATION

Audio Head Unit

Audio Head Unit	Design	Specification

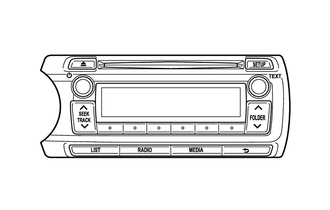

Radio Receiver Assembly		Liquid Crystal Display (LCD) AM/FM Tuner CD Player: Compatible with MPEG audio layer-3 (MP3) and Windows Media Audio (WMA) Files iPod Player Interface USB Memory Interface Unit Manufacturer: Panasonic 6-speaker System Stereo Jack Adapter (USB and AUX Port)

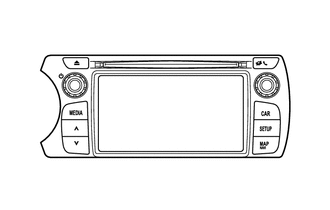

Radio and Display Assembly		6.1-inch Thin Film Transistor (TFT) AM/FM Tuner CD Player: Compatible with MPEG audio layer-3 (MP3) and Windows Media Audio (WMA) Files Bluetooth Audio System Bluetooth Hands-free System iPod Player Interface USB Memory Interface Unit Manufacturer: FUJITSU TEN 6-speaker System or 8-speaker System Stereo Jack Adapter (USB and AUX Port) Extension Module Assembly*

*: Optional equipment

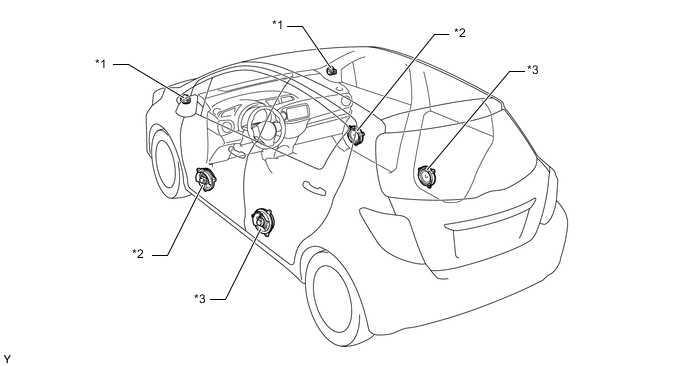

6-speaker System

Location		Speaker Type	Quantity	Size	Impedance	Rated Input Power
*1	No. 2 Front Speaker Assembly	Tweeter	2	25 mm (1.0 in.)	4 Ω	20 W
*2	No. 1 Front Speaker Assembly	Full Range	2	160 mm (6.3 in.)	4 Ω	20 W
*3	No. 1 Rear Speaker Assembly	Full Range	2	160 mm (6.3 in.)	4 Ω	20 W

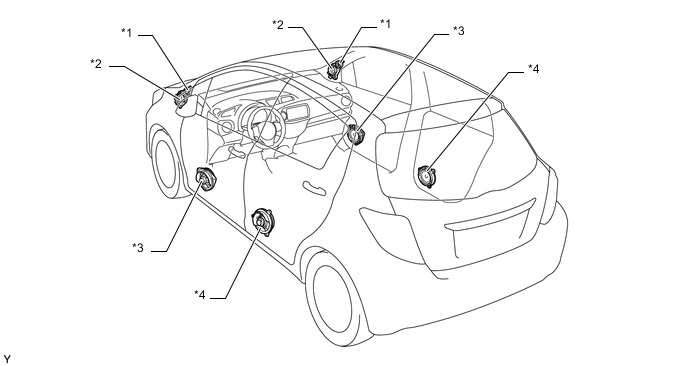

8-speaker System

Location		Speaker Type	Quantity	Size	Impedance	Rated Input Power
*1	No. 2 Front Speaker Assembly	Tweeter	2	25 mm (1.0 in.)	6 Ω	13.5 W
*2	No. 3 Front Speaker Assembly	Squawker	2	65 mm (2.6 in.)	4 Ω	20 W
*3	No. 1 Front Speaker Assembly	Full Range	2	160 mm (6.3 in.)	2 Ω	30 W
*4	No. 1 Rear Speaker Assembly	Full Range	2	160 mm (6.3 in.)	4 Ω	20 W

Bluetooth Hands-free System

The specifications for the Bluetooth hands-free system vary with the audio head unit that is used. The details are as follows:

Function			Radio and Display Assembly
Call with Bluetooth Phone	By Dial		○
	By Phonebook		○ (1000 Cases)*1
	By Call History	Dialed Number	○ (10 Cases)
		Received Call	○ (10 Cases)
		Missed Call	○ (10 Cases)
		All Call History	○ (30 Cases)
	By Speed Dial*2		○ (18 Cases)
Receive with Bluetooth Phone / Talk on Bluetooth Phone	Receiving Call*2	Received Manually	○
	Receiving Call*2	Received Refusal	○
	Interrupt Call*2		○
	Tone Sending	By Dial	○
	Tone Sending	By Registered Number	○
Recognition / Connection	Registering Bluetooth Phone		○ (5 Bluetooth Phones)
	Connecting Bluetooth Phone	Received Automatically	○
	Connecting Bluetooth Phone	Connected Manually	○
Setting	Setting Automatic Connection		○

○: Available

Tech Tips

*1: 1000 cases per telephone (Bluetooth Phone)

*2: Can be operated while driving

MAIN FEATURES

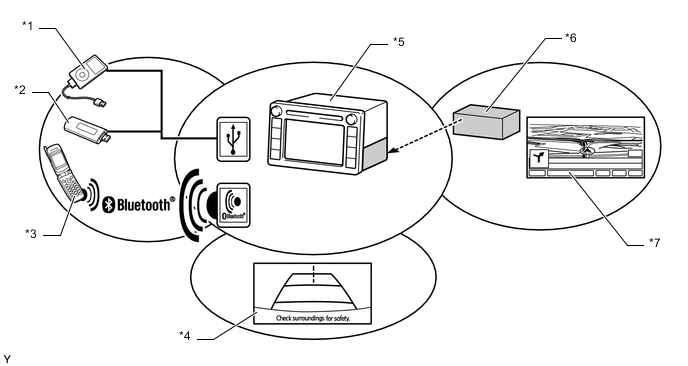

Radio and Display Assembly

A radio and display assembly has a Thin Film Transistor (TFT) 6.1-inch display, an audio function, a Bluetooth audio system, a Bluetooth hands-free system, a parking assist monitor system, and a stereo jack adapter interface, and it offers touch panel screen controls to operate the functions.

When an optional extension module assembly is mounted, a navigation system and other extension functions can be made available.

Text in Illustration
*1	iPod	*2	USB Memory Stick
*3	Bluetooth Phone	*4	Parking Assist Monitor Screen
*5	Radio and Display Assembly	*6	Extension Module Assembly
*7	Navigation Screen	-	-

PRECAUTION

Some of the functions of a system that uses a Bluetooth connection may not operate, depending on the Bluetooth specification or profile of the Bluetooth phone or Bluetooth audio player that is being used. The Bluetooth specifications and profiles required for the operation are as follows:

Specification/Profile	Item	Bluetooth Audio System	Bluetooth Hands-free System
Bluetooth Specification	Version 1.2 or higher	Required	Required
Bluetooth Specification	Version 2.1+EDR or higher	Recommended	Recommended
Profile	Hands-Free Profile (HFP) Version 1.0 or higher	-	Required
	Hands-Free Profile (HFP) Version 1.5 or higher	-	Recommended
	Dial-up Networking Profile (DUN) Version 1.1 or higher	-	Recommended
	Object Push Profile (OPP) Version 1.1 or higher	-	Required
	Phone Book Access Profile (PBAP) Version 1.0 or higher	-	Required
	Message Access Profile (MAP) Version 1.0 or higher	-	Required
	Advanced Audio Distribution Profile (A2DP) Version 1.0 or higher	Required	-
	Audio/Video Remote Control Profile (AVRCP) Version 1.0	Required	-
	Audio/Video Remote Control Profile (AVRCP) Version 1.3	Recommended	-
	Audio/Video Remote Control Profile (AVRCP) Version 1.4 or higher	Recommended	-

-: Not available

Tech Tips

The operation of the interrupt call function of the Bluetooth hands-free system may vary with the Bluetooth phone or the telephone company that is used.
