LUBRICATION SYSTEM


  1. CONSTRUCTION


    1. Oil Pump


      1. A compact trochoidal type oil pump directly driven by the crankshaft is used.

      2. This oil pump uses an internal relief method which circulates relief oil to the suction passage in the oil pump. This aims to minimize oil level change in the oil pan, reduce friction and reduce the air mixing rate in the oil.

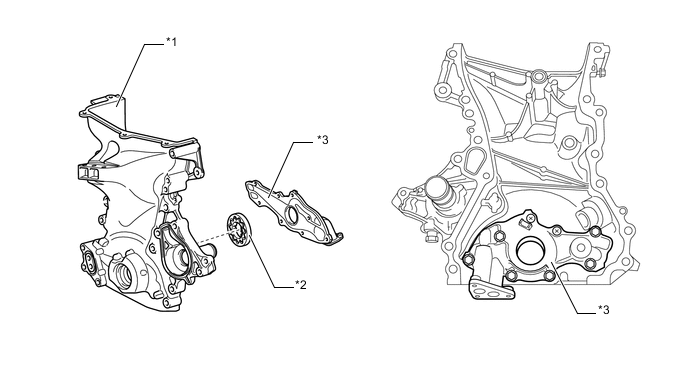

        A01UVW9E02
        Text in Illustration
        *1 Timing Chain or Belt Cover Sub-assembly *2 Oil Pump Rotor
        *3 Oil Pump Housing - -
