LUBRICATION SYSTEM


  1. OUTLINE


    1. The lubrication circuit is fully pressurized and all oil passes through an oil filter.

    2. The crankshaft drives a trochoid gear type oil pump. The oil pump fits compactly inside the timing chain cover sub-assembly.

    3. This engine has an oil return system in which the oil is force-fed to the upper cylinder head sub-assembly and returns to the oil pan through the oil return holes in the cylinder head sub-assembly and cylinder block sub-assembly.

    4. The camshaft timing oil control valve regulates the oil pressure and then supplies oil into VVT-i controller (camshaft timing sprocket assembly).

    5. The No. 1 oil nozzle sub-assembly is employed in the piston cooling and lubrication.

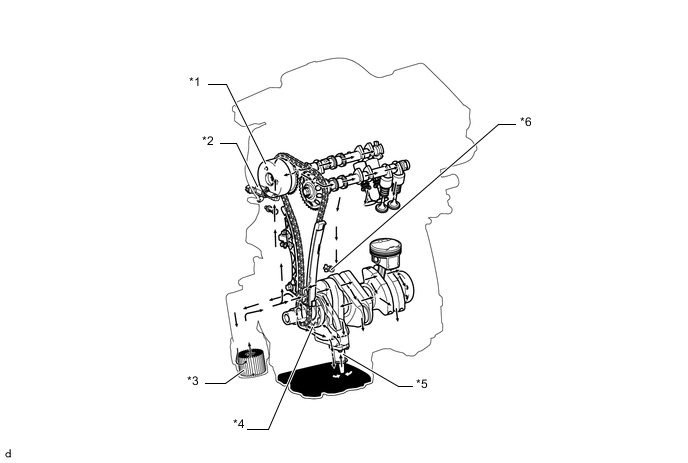

      A01UWJ9E02
      Text in Illustration
      *1 VVT-i Controller (Camshaft Timing Sprocket Assembly) *2 Camshaft Timing Oil Control Valve Assembly
      *3 Oil Filter *4 Oil Pump
      *5 Oil Strainer Sub-assembly *6 No. 1 Oil Nozzle Sub-assembly
