INTAKE SYSTEM


  1. CONSTRUCTION


    1. Air Cleaner


      1. A nonwoven, full-fabric type air cleaner filter element sub-assembly is used.

      2. A resonator is provided on the air cleaner hose assembly, helping reduce intake noise.

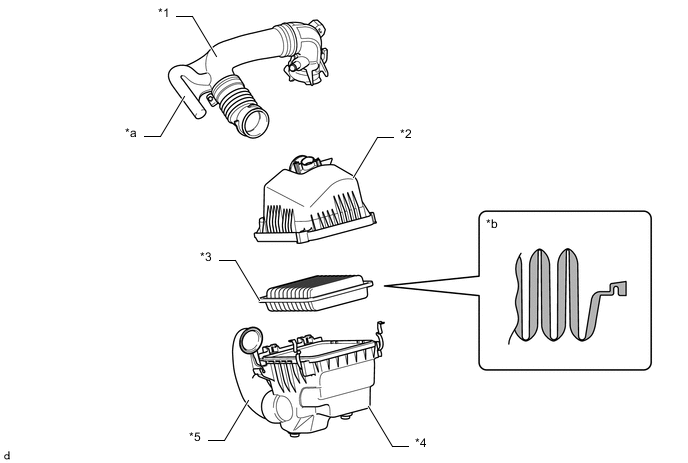

        A0044W2C01
        *1 Air Cleaner Hose Assembly *2 Air Cleaner Cap Sub-assembly
        *3 Air Cleaner Filter Element Sub-assembly *4 Air Cleaner Case Sub-assembly
        *5 No. 1 Air Cleaner Inlet - -
        *a Resonator *b Full Fabric Air Element Structure

    2. Intake Manifold


      1. EGR delivery is integrated into the intake manifold and designed in a tournament arrangement. This allows EGR gas to be equally distributed to the cylinders while also achieving a reduced number of components and a lightweight design. In addition, the ribs are cleverly positioned to achieve both a reduction in exhaust sounds and a lightweight design.

      2. Intake noise has been reduced by installing a mesh gasket between the throttle body with motor assembly and the intake manifold to reduce the size of pulsations in the intake air.

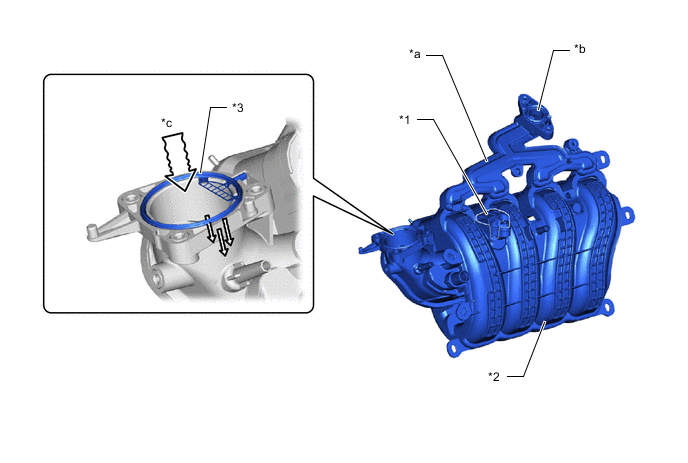

        A00457HC01
        *1 E. F. I. Vacuum Sensor Assembly *2 Intake Manifold
        *3 Throttle Body Gasket - -
        *a Tournament Arrangement *b EGR Port
        *c Intake Air - -
