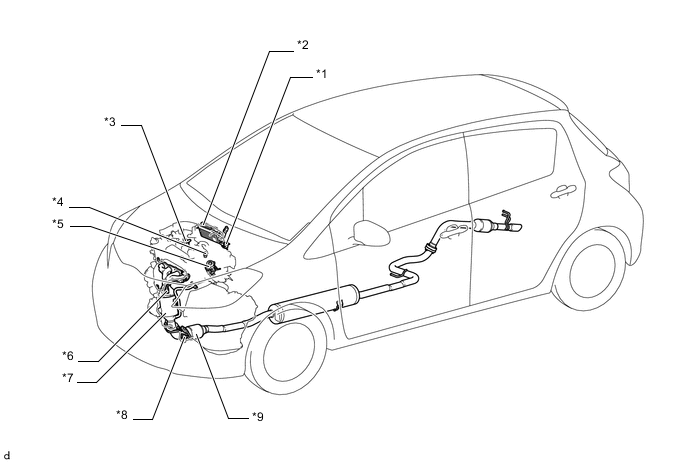

EMISSION CONTROL SYSTEM
| *1 | Purge VSV (No. 1 Vacuum Switching Valve Assembly) | *2 | ECM |
| *3 | E.F.I. Vacuum Sensor Assembly | *4 | PCV Valve (Ventilation Valve Sub-assembly) |
| *5 | EGR Valve Assembly | *6 | Air Fuel Ratio Sensor |
| *7 |
|
*8 | Oxygen Sensor |
| *9 |
|
- | - |
