ENGINE UNIT

OUTLINE
1. The 1ND-TV TOYOTA Direct injection 4-stroke common-rail Diesel (D-4D) engine is an in-line, 4-cylinder, 1.4-liter, 8-valve SOHC turbocharged diesel engine with intercooler.
2. This engine uses direct injection system and common-rail system to realize higher performance, good fuel consumption, clean emission, low noise and low vibration.
3. This engine comes in 2 models. One is a model with the oxidation catalyst that uses only an oxidation catalyst. The other is a model with the Diesel Particulate Filter (DPF) catalyst that uses an oxidation catalyst and a DPF catalyst.

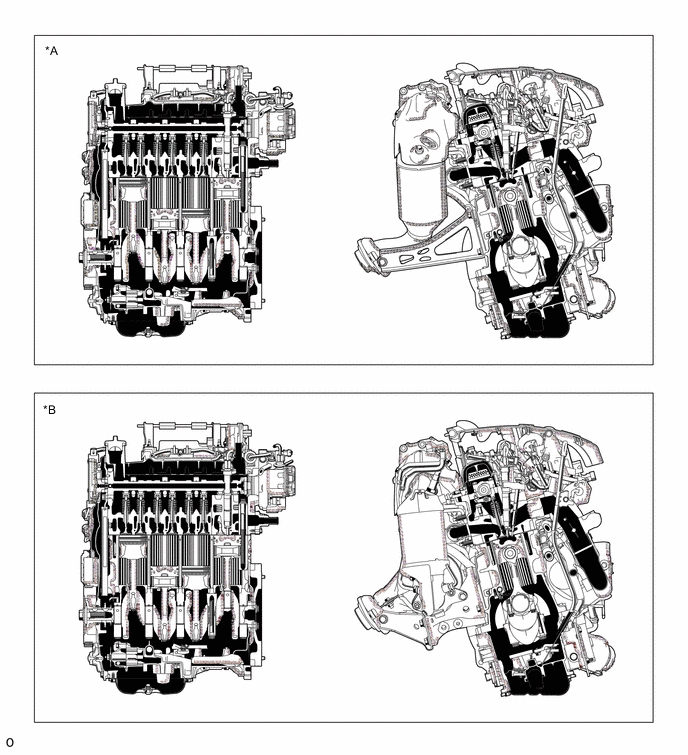

  Text in Illustration

  *A Models without DPF Catalyst *B Models with DPF Catalyst

Text in Illustration
*A	Models without DPF Catalyst	*B	Models with DPF Catalyst

SPECIFICATION

Item			Specification
Engine Type			1ND-TV with DPF	1ND-TV without DPF
No. of Cyls. & Arrangement			4-cylinder, In-line	4-cylinder, In-line
Valve Mechanism			8-valve SOHC, Chain Drive	8-valve SOHC, Chain Drive
Combustion Chamber			Direct Injection Type	Direct Injection Type
Manifolds			Cross-flow	Cross-flow
Fuel System			Common-rail Type	Common-rail Type
Displacement			1364 cm³(83.2 cu. in.)	1364 cm³(83.2 cu. in.)
Bore x Stroke			73.0 mm x 81.5 mm (2.87 in x 3.21 in)	73.0 mm x 81.5 mm (2.87 in x 3.21 in)
Compression Ratio			16.5 : 1	16.5 : 1

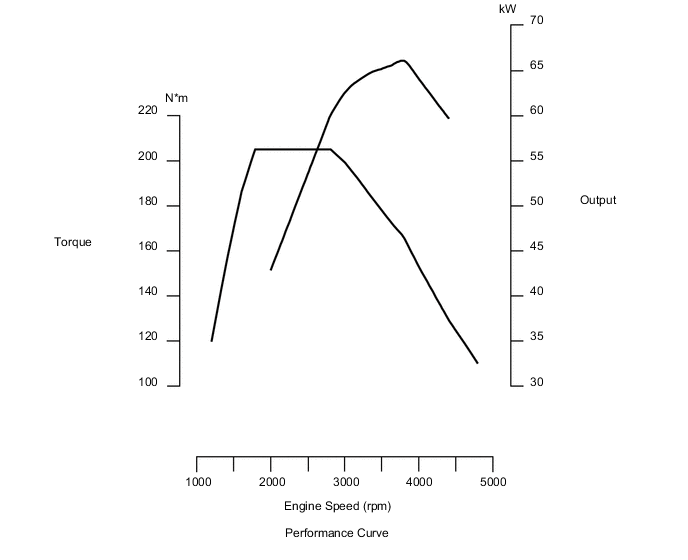

Max. Output (EEC)			66 kW @ 3800 rpm	66 kW @ 3800 rpm
Max. Torque (EEC)			205 N*m @ 1800 to 2800 rpm	205 N*m @ 1800 to 2800 rpm
Valve Timing	Intake	Open	4° BTDC	4° BTDC
	Intake	Close	36° ABDC	36° ABDC
	Exhaust	Open	44.8° BBDC	44.8° BBDC
	Exhaust	Close	4° ATDC	4° ATDC
Oil Grade			ACEA C2	ACEA B1 API: CF4 or CF2 ACEA C2
Injection Order			1 - 3 - 4 - 2	1 - 3 - 4 - 2
Fuel Cetane Number			48 or higher	48 or higher
Emission Regulation			EURO 5	EURO 4
Engine Service Mass* (Reference)			124.0 kg (273.4 lb)	124.0 kg (273.4 lb)

Tech Tips

*: Weight shows the figure with oil and water fully filled.

MAIN FEATURES

The 1ND-TV engine has been able to achieve the following performance through the adoption of the items listed below.

High performance and fuel economy
Low noise and vibration
Lightweight and compact design
Good serviceability

Clean emission

Item	Feature	(1)	(2)	(3)	(4)	(5)
Engine Proper	A cylinder head sub-assembly, cylinder block sub-assembly, and piston made of aluminum alloy are used.	-	○	○	-	-
	The thin cast-iron liner is used in the cylinder block sub-assembly.	○	-	○	-	-
	Cylinder block water jacket spacer is used.	○	-	-	-	-
	The piston skirt is coated with resin.	○	○	-	-	-
Valve Mechanism	A timing chain and chain tensioner is used.	-	-	○	○	-
Lubrication System	An aluminum alloy made water-cooled type oil cooler is used.	-	-	○	-	-
Lubrication System	2-stage hydraulic system is used.*	○	○	-	-	-
Cooling System	TOYOTA genuine Super Long Life Coolant (SLLC) is used.	-	-	-	○	-
Intake and Exhaust System	A water-cooled type intercooler is used.	○	-	-	-	○
	A DC motor type diesel throttle control motor is used in the diesel throttle body assembly.	○	-	○	-	○
	The variable nozzle vane type turbocharger driven by a DC motor is used.	○	-	-	-	○
	A DC motor type EGR valve is used.	○	-	-	-	○
	A water-cooled type EGR cooler bypass switching valve is used.	○	-	-	-	○
	The exhaust manifold converter uses Oxidation Catalytic Converter (Exhaust Manifold Converter Sub-assembly).	-	-	-	-	○
	The DPF Catalytic Converter (No. 2 Exhaust Manifold Converter Sub-assembly) is used.*	-	-	-	-	○
Fuel System	A common-rail type fuel injection system is used.	○	○	-	-	○
Fuel System	Compensation value and Data Matrix Code (DMC) printed piezo type injector is used.	○	○	-	-	○
Engine Control System	An intake mass air flow meter sub-assembly is used.	-	-	-	-	○
	The non-contact sensor is used in the accelerator pedal sensor assembly and throttle position sensor.	○	-	-	-	-
	A catalyst support control is used.*	-	-	-	-	○
	A pilot injection control system is used.	○	○	-	-	○
	A oil maintenance management system is used.	-	-	-	○	-

*:Models with Diesel Particulate Filter (DPF)
