ENGINE UNIT


  1. CONSTRUCTION


    1. Cylinder Head Cover


      1. A cylinder head cover made of plastic and integrated with the air cleaner case is used for weight reduction.

      2. Acrylic rubber, which excels in heat resistance and reliability, is used for the cylinder head cover gasket.

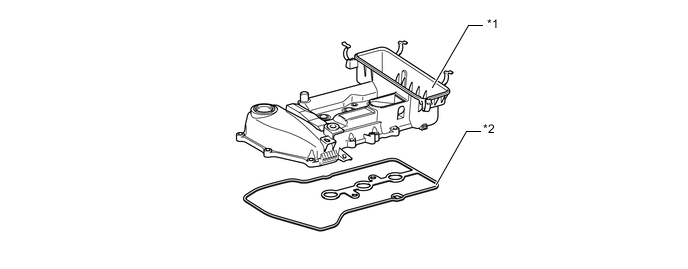

        A01UWDUE01
        Text in Illustration
        *1 Cylinder Head Cover Sub-assembly *2 Cylinder Head Cover Gasket

    2. Cylinder Head Gasket


      1. A steel-laminate type cylinder head gasket is used. The gasket surface is coated with Nitrile Butadiene Rubber (NBR)* to enhance the airtightness of the cylinder head.

        Tech Tips

        *: A rubber material that excels in heat resistance, oil resistance, and wear resistance.

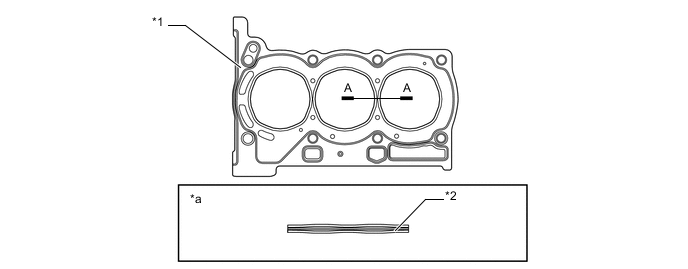

        A01UWHPE02
        Text in Illustration
        *1 Cylinder Head Gasket *2 Shim
        *a A-A Cross Section - -

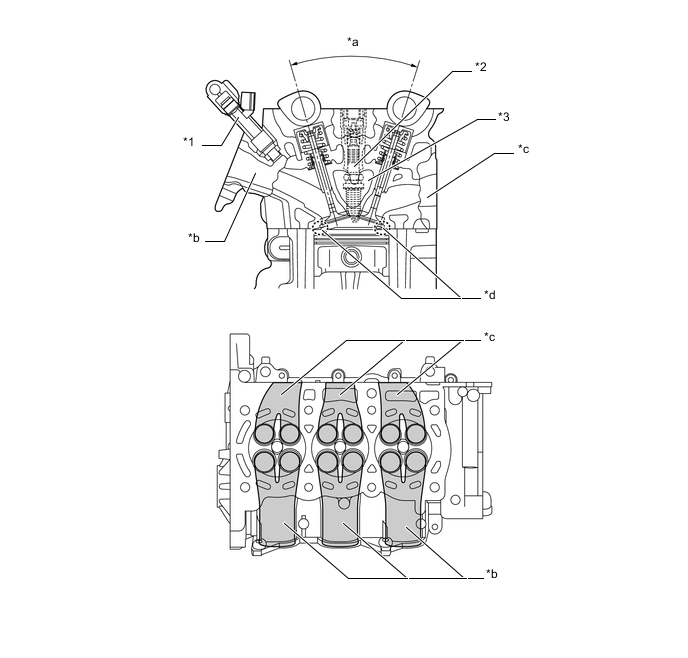

    3. Cylinder Head


      1. The spark plug has been located in the center of the combustion chamber in order to achieve high the engine's anti-knocking performance.

      2. The angle of the intake and exhaust valves is narrowed and set at 33.5° to realize a compact cylinder head.

      3. A taper squish combustion chamber is used to achieve high anti-knocking performance and intake efficiency. In addition, excellent engine performance and fuel economy have been realized.

      4. The shape of the intake ports has been optimized to realize efficient combustion.

      5. The cylinder head bolt employs plastic region tightening bolts.

      6. The routing of the water jacket in the cylinder head is optimized to achieve high cooling performance.

        A01UWNHE02
        Text in Illustration
        *1 Fuel Injector Assembly *2 Spark Plug
        *3 Water Jacket - -
        *a 33.5° *b Intake Side
        *c Exhaust Side *d Taper Squish
        A01UWB6 Cross-Flow Port - -

    4. Cylinder Block Sub-assembly


      1. An aluminum cylinder block sub-assembly with a 7 mm (0.28 in.) distance between the cylinder bores is used to realize a compact and lightweight configuration.

      2. An oil separator is provided in the blowby gas passage inside the Cylinder Block Sub-assembly. This separates the engine oil from the blowby gas in order to reduce the degradation and consumption of volume of the engine oil.

      3. It is not possible to bore the block with this liner. The liners are the spiny type, which have been manufactured so that their casting exterior forms a large irregular surface in order to enhance the adhesion between the liners and the aluminum cylinder block sub-assembly. The enhanced adhesion helps heat dissipation, resulting in a lower overall temperature and heat deformation of the cylinder bores.

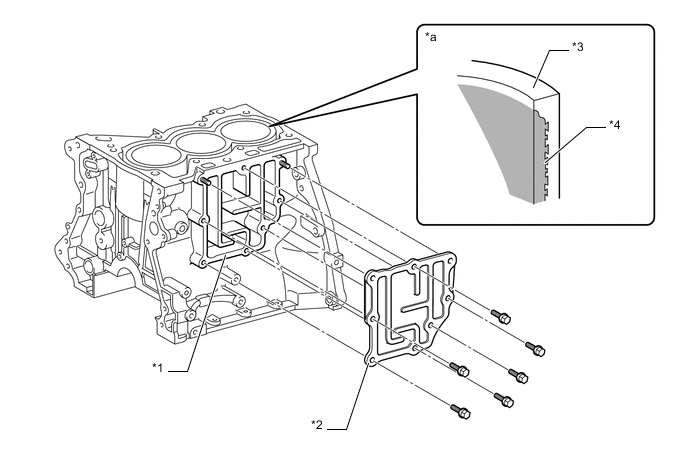

        A01UWBBE02
        Text in Illustration
        *1 Oil Separator *2 Ventilation Baffle Plate
        *3 Cylinder Block Sub-assembly *4 Irregularly Shaped Outer Casting Surface of Liner
        *a Cylinder Bore Cross Section - -
        A01UWB6 Spiny Type Liner - -

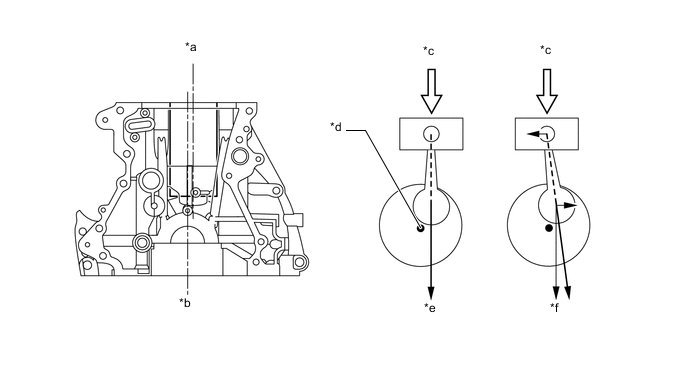

      4. Through the use of the offset crankshaft, the bore center is shifted 8 mm (0.31 in.) towards the intake, in relation to the crankshaft center. Thus, the side force to cylinder wall is reduced when the maximum pressure is applied, which contributes to fuel economy.

        A01UWQAE02
        Text in Illustration
        *a Bore Centerline *b Crankshaft Centerline
        *c Maximum Pressure *d Crankshaft Centerline
        *e Offset Crankshaft *f Non-offset Crankshaft

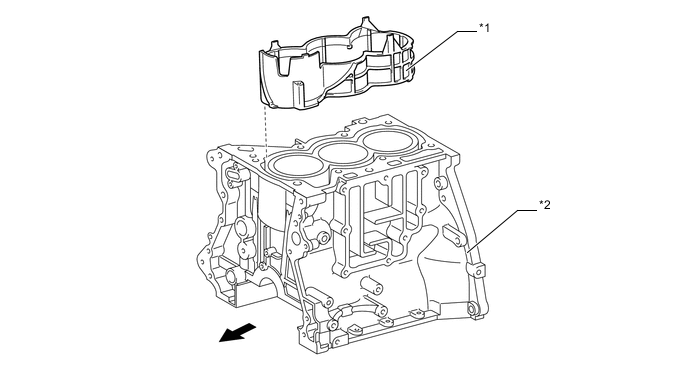

      5. Cylinder Block Sub-assembly water jacket spacers are used in the water jackets of the cylinder block sub-assembly.

      6. They suppress the water flow in the center of the water jackets, guide the coolant above the cylinder bores, and ensure uniform temperature distribution. As a result, the viscosity of the engine oil that acts as a lubricant between the bore walls and the pistons can be lowered, thus reducing friction.

        A01UWOVE02
        Text in Illustration
        *1 Cylinder Block Water Jacket Spacer *2 Cylinder Block Sub-assembly
        A01UWJU Engine Front - -

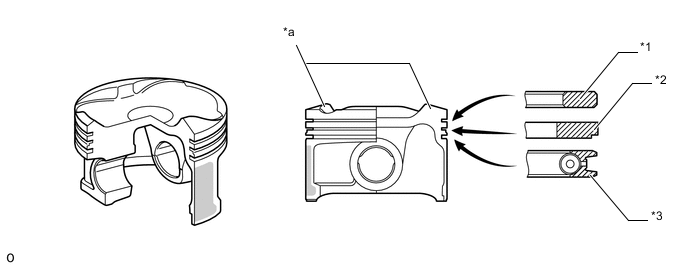

    5. Piston


      1. The piston is made of aluminum alloy.

      2. The piston head portion uses a taper squish shape to accomplish fuel combustion efficiency.

      3. Low Friction Resin with Alumina (LFA) coating is used on the sliding surface of the piston.

      4. Low-tension piston rings are used to reduce friction and achieve excellent fuel economy.

        A01UWEJE02
        Text in Illustration
        *1 No. 1 Compression Ring *2 No. 2 Compression Ring
        *3 Oil Ring - -
        *a Taper Squish Shape - -
        A01UWB6 Low Friction Resin with Alumina (LFA) Coating - -

    6. Connecting Rod and Connecting Rod Bearing


      1. Connecting rods that have been forged for high strength are used for weight reduction. Plastic region tightening bolts are used.

      2. The lining surface of the connecting rod bearing has been micro-grooved to realize an optimal amount of oil clearance. As a result, excellent cold-engine cranking performance has been realized and engine vibrations have been reduced.

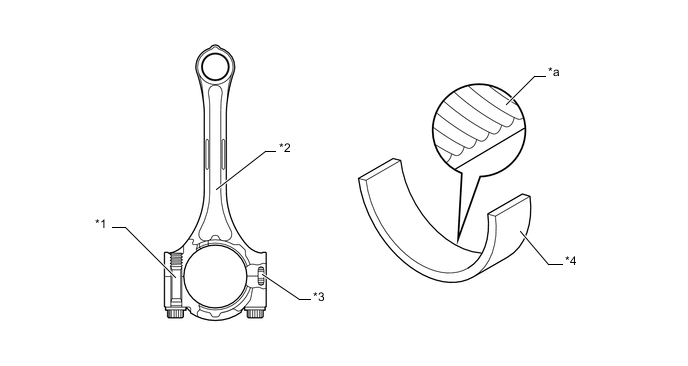

        A01UWGQE02
        Text in Illustration
        *1 Plastic Region Tightening Bolt *2 Connecting Rod
        *3 Knock Pin *4 Connecting Rod Bearing
        *a Micro-grooved - -

    7. Crankshaft and Crankshaft Bearing


      1. The crankshaft has 4 journals and 6 balance weights.

      2. All pins and journal fillets are roll-finished to maintain adequate strength.

      3. The crankshaft bearing is made of aluminum alloy.

      4. The lining surface of the crankshaft bearings has been micro-grooved to realize an optimal amount of oil clearance. As a result, excellent cold-engine cranking performance has been realized.

      5. The upper main bearing has an oil groove around its inside circumference.

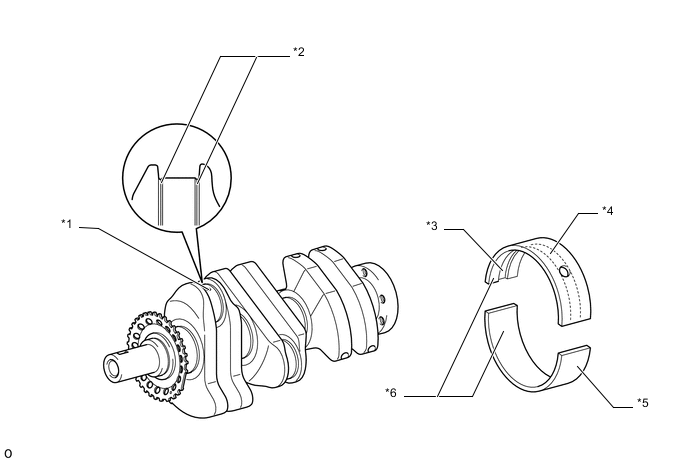

        A01UWACE02
        Text in Illustration
        *1 Oil Hole *2 Roll-Finished
        *3 Oil Grooved *4 Upper Main Bearing
        *5 Lower Main Bearing *6 Micro-Grooved

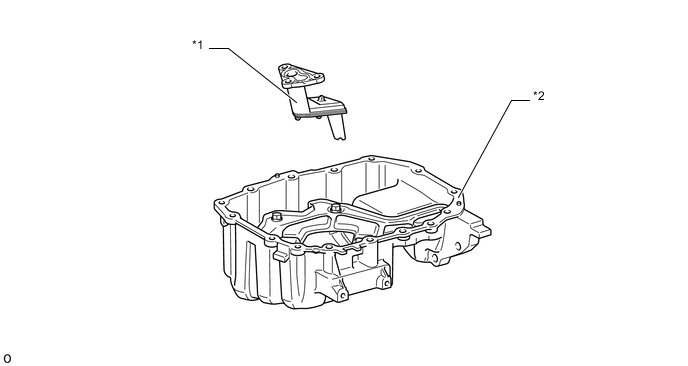

    8. Oil Pan Sub-assembly


      1. The oil pan sub-assembly is made of aluminum alloy.

      2. The oil strainer is made of plastic to reduce weight.

        A01UWPKE02
        Text in Illustration
        *1 Oil Strainer Sub-assembly *2 Oil Pan Sub-assembly

    9. Valve Mechanism


      1. Each cylinder has 2 intake valves and 2 exhaust valves. Intake and exhaust efficiency is increased by means of the large total port areas.

      2. The valves are directly opened and closed by 2 camshafts.

      3. The VVT-i system is used to achieve low fuel consumption, high engine performance and reduce exhaust emissions.

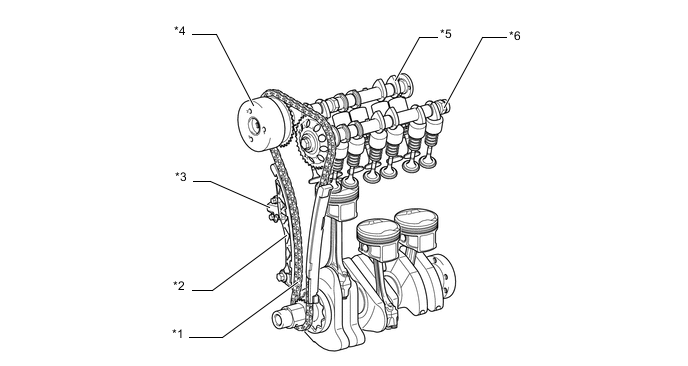

        A01UVXAE02
        Text in Illustration
        *1 Timing Chain (Chain Sub-assembly) *2 Timing Chain Tension Arm
        *3 No. 1 Chain Tensioner Assembly *4 VVT-i Controller (Camshaft Timing Sprocket Assembly)
        *5 Camshaft *6 No. 2 Camshaft

    10. Camshaft


      1. Oil passages are provided in the intake camshaft in order to supply engine oil pressure to the VVT-i system.

      2. A VVT-i controller (camshaft timing sprocket assembly) is installed on the front of the intake camshaft to vary the timing of the intake valves.

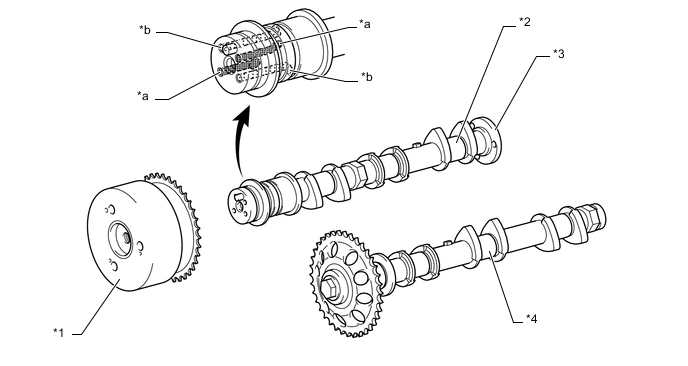

        A01UWKHE03
        Text in Illustration
        *1 VVT-i Controller (Camshaft Timing Sprocket Assembly) *2 Camshaft
        *3 Timing Rotor *4 No. 2 Camshaft
        *a Oil Passage (Retard) *b Oil Passage (Advance)

    11. Camshaft Timing Sprocket Assembly


      1. The camshaft timing sprocket assembly consists of an outer housing that is driven by the timing chain sprocket, and a vane that is coupled to camshaft.

      2. The camshaft timing sprocket assembly uses 3 vanes.

      3. When the engine stops, the camshaft timing sprocket assembly is locked at the most retarded angle by its lock pin. This ensures excellent engine startability.

      4. The oil pressure sent from the advance or retard side passages of the intake camshaft causes rotation of the vane relative to the timing chain sprocket, to vary the valve timing continuously.

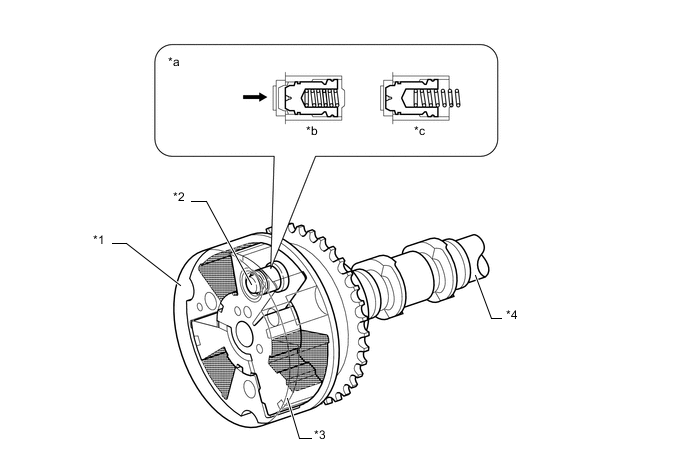

        A01UW91E03
        Text in Illustration
        *1 Housing *2 Lock Pin
        *3 Vane *4 Intake Camshaft
        *a Lock Pin Operation *b Engine Operating
        *c Engine Stopped - -
        A01UWJU Oil Pressure - -

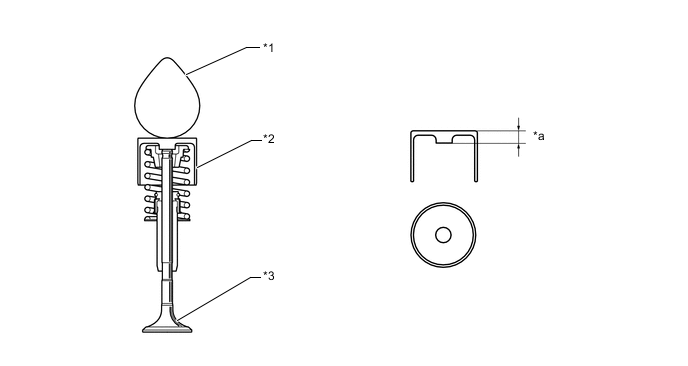

    12. Intake and Exhaust Valve and Valve Lifter


      1. Narrower valve stems are used to reduce the intake and exhaust resistance and to reduce weight.

      2. The same valve springs are used for both the intake and exhaust valves. They are variable pitch springs that offer good valve following performance.

      3. Valve lifters with shimless valve adjustment is used for weight reduction.

        A01UW99E04
        Text in Illustration
        *1 Cam *2 Valve Lifter
        *3 Valve - -
        *a Lifter Thickness - -

        Tech Tips

        The adjustment of the valve clearance is accomplished by selecting and replacing the appropriate valve lifters. Adjusting valve lifters are available in 29 increments of 0.02 mm (0.0008 in.), from 5.12 mm (0.201 in.) to 5.68 mm (0.223 in.).

    13. Timing Chain (Chain Sub-assembly) and Chain Tensioner


      1. A high-strength roller chain with an 8.0 mm (0.31 in.) pitch is used to make the engine more compact and to ensure the reliability of the timing chain (chain sub-assembly).

      2. The No. 1 chain tensioner assembly uses a spring and oil pressure to maintain proper chain tension at all times. The No. 1 chain tensioner assembly suppresses noise generated by the timing chain (chain sub-assembly).

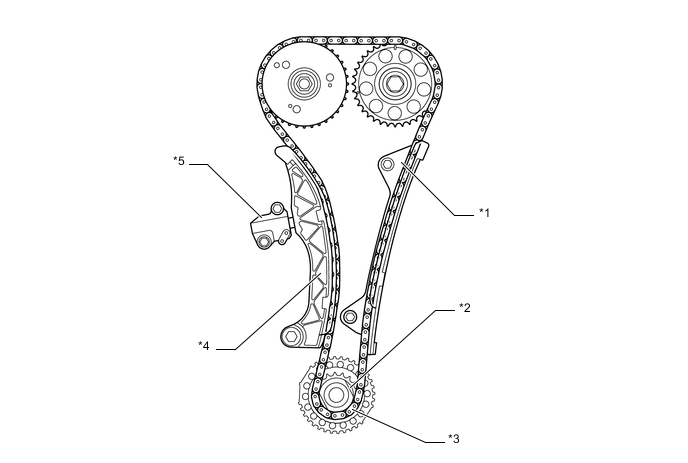

        A01UWCLE02
        Text in Illustration
        *1 Timing Chain Guide *2 Crankshaft Timing Gear or Sprocket
        *3 Timing Chain (Chain Sub-assembly) *4 Timing Chain Tension Arm
        *5 No. 1 Chain Tensioner Assembly - -

    14. Timing Chain or Belt Cover Sub-assembly


      1. The oil pump housing is enclosed in a timing chain or belt cover sub-assembly made of aluminum, to which a water pump is mounted.

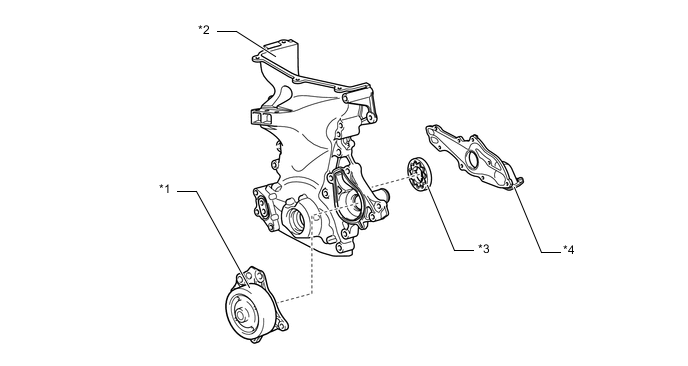

        A01UWB3E03
        Text in Illustration
        *1 Water Pump Assembly *2 Timing Chain or Belt Cover Sub-assembly
        *3 Oil Pump Rotor *4 Oil Pump Housing

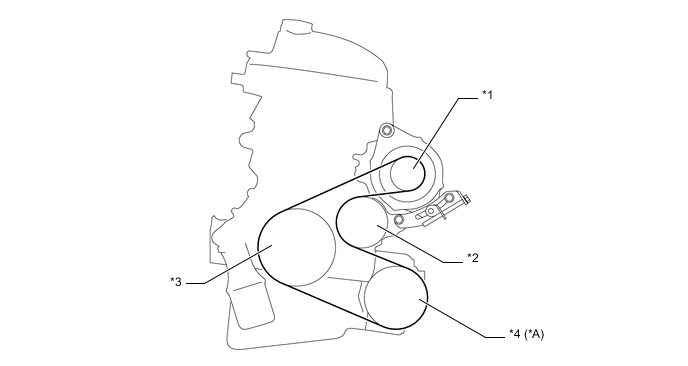

    15. Fan and Generator V Belt


      1. Accessory components are driven by a serpentine belt consisting of a single V-ribbed belt. It reduces the overall engine length, weight and the number of engine parts.

        A01UWKAE02
        Text in Illustration
        *A Models with Air Conditioning System - -
        *1 Generator with Clutch Pulley *2 Water Pump Pulley
        *3 Crankshaft Pulley *4 Compressor with Pulley Assembly

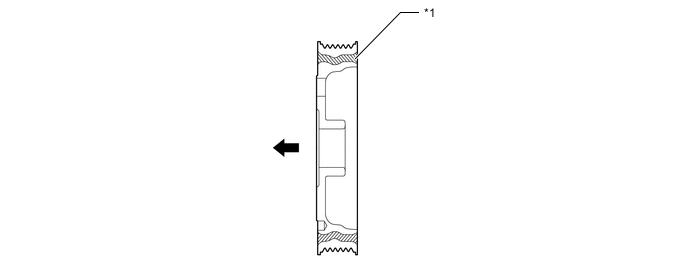

    16. Crankshaft Pulley


      1. The rigidity of the crankshaft pulley with its built-in torsional damper rubber reduces noise.

        A01UW2PE02
        Text in Illustration (Crankshaft Pulley Cross Section:)
        *1 Torsional Damper Rubber - -
        A01UWJU Front - -
