LIGHTING SYSTEM


  1. OUTLINE


    1. Exterior Light

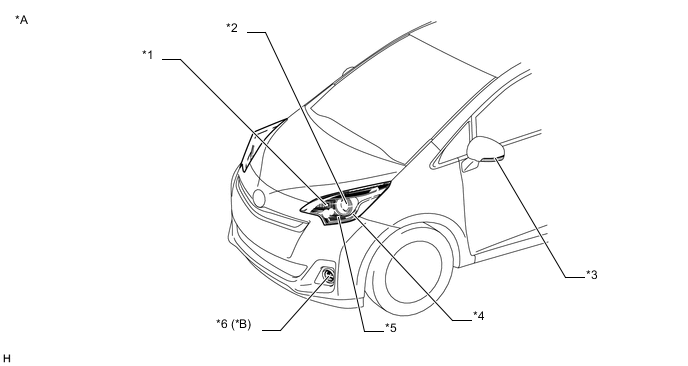

      1. The front lights consist of the following lights:

        A005GASE03
        Text in Illustration
        *A Models for Europe *B Models with Front Fog Light
        *1 Front Turn Signal Light *2 Headlight (High/Low beam)
        *3 Side Turn Signal Light *4 Clearance Light (LED)
        *5 Daytime Running Light (LED) *6 Front Fog Light

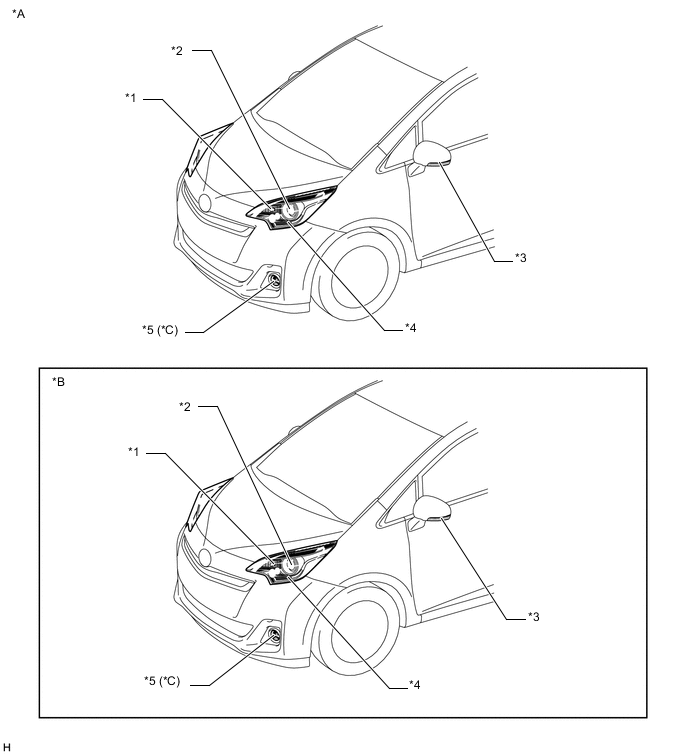

        A005GC9E03
        Text in Illustration
        *A Models for Hong Kong *B Models with HID Headlight System
        *C Models with Front Fog Light - -
        *1 Front Turn Signal Light *2 Headlight (High/Low beam)
        *3 Side Turn Signal Light *4 Clearance Light (LED)
        *5 Front Fog Light - -

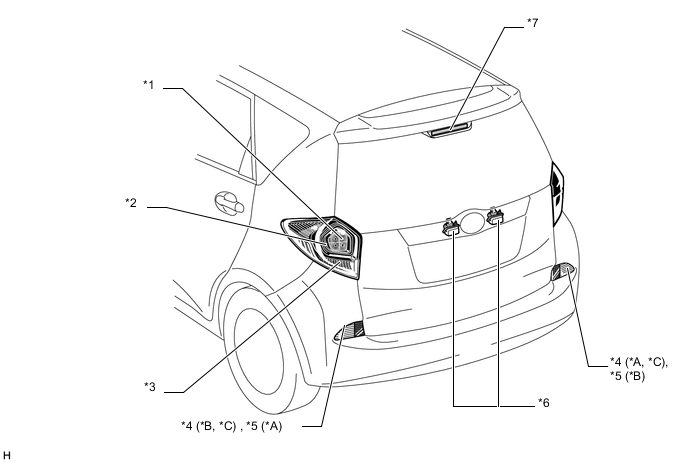

    2. The rear lights consist of the following lights:

      A005FW1E02
      Text in Illustration
      *A Models for Europe (LHD) *B Models for Europe (RHD)
      *C Models for Hong Kong - -
      *1 Stop Light (LED) *2 Taillight (LED)
      *3 Rear Turn Signal Light *4 Back-up Light
      *5 Rear Fog Light *6 License Plate Light
      *7 High Mount Stop Light - -

    3. Daytime Running Light System (Models with Daytime Running Light System)


      1. This system is designed to automatically activate the daytime running light during the daytime to keep the car highly visible to other vehicles.

    4. Automatic Light Control System (Models with Automatic Light Control System)


      1. When the light control switch is in the AUTO position, the light control sensor detects the ambient light level and automatically turns the headlights, taillights, clearance lights, and license plate lights on or off accordingly.

    5. Follow Me Home System (Models with Follow Me Home System)


      1. This system is designed to illuminate the low beam headlights for certain period after the vehicle parked.

    6. Light Automatic Turn-off System (Models with Light Automatic Turn-off System)


      1. When the ignition switch (engine switch*1) is turned off while the light control switch (TAIL or HEAD) is turned on, the headlights and fog light are turned off automatically. When the ignition switch (engine switch*1) is turned off while the light control switch is in the AUTO position, all lights are turned off automatically.*2

      2. When the ignition switch (engine switch*1) is turned off and the driver door is opened while the light control switch is turned on or is in the AUTO position, all lights are turned off automatically.*3

      3. A battery saving function has been adopted. This function operates as follows; after the lamp auto cut system was activated, when the light control switch (HEAD) is turned on or is in the AUTO position and the headlights and taillights are turned on, the lights will be turned off automatically in a certain period of time to prevent the battery to run out.

        Tech Tips

        *1: Models with entry and start system

        *2: Models for Europe

        *3: Models for Hong Kong

    7. High Intensity Discharge (HID) Headlight System (Models with HID Headlight System)


      1. The HID headlight system uses a discharge bulb as its light source for the high/low beam. Discharge bulbs have features superior to halogen bulbs.

    8. Automatic Headlight Beam Level Control System (Models with HID Headlight System)


      1. When the headlights are on, the automatic headlight beam level control system operates the headlight leveling motor in accordance with the movement of the vehicle.

    9. Light Reminder System


      1. When the driver door is opened with either the headlights or the taillights turned on when the ignition switch (engine switch*) is turned off, the buzzer sounds to prevent the driver from forgetting to turn off the lights.

        Tech Tips

        *: Models with entry and start system

    10. Manual Headlight Beam Level Control System (Models with Halogen Headlight)


      1. The manual headlight beam level control system keeps the beam of the headlight adjusted to the appropriate level in accordance with the number (weight) of passengers and volume of luggage.

    11. Emergency Brake Signal


      1. The hazard warning lights flash automatically in the case of emergency braking to alert following drivers, thus helping to reduce rear-end accidents.

  2. SPECIFICATION


    1. Exterior Light

      Light Type Specification
      Headlight Unit Halogen Headlight High/Low Beam Headlight Halogen Bulb: HIR2 55W
      Daytime Running Light*3 LED*5 x 3 3.8 W
      Clearance Light LED*5 1.3 W
      Front Turn Signal Light Bulb: WY21W 21 W
      HID Headlight*1 High/Low Beam Headlight Discharge Bulb: D4S 35 W
      Clearance Light LED*5 1.3 W
      Front Turn Signal Light Bulb: WY21W 21 W
      Front Fog Light*2 Halogen Bulb: H11 55 W
      Side Turn Signal Light Bulb: WY5W 5 W
      Rear Combination Light Tail Light LED*5 x 2 1.7 W
      Stop Light LED*5 x 4 1.0 W
      Rear Turn Signal Light Bulb: WY21W 21 W
      Rear Light Assembly Back-up Light Bulb: W16W 16 W
      Rear Fog Light*3 Bulb: W21W 21 W
      High Mount Stop Light LED*5 x 6*3 2.2 W
      LED*5 x 4*4 1.0 W
      License Plate Light Bulb: W5W 5 W

      Tech Tips

      *1: Models with HID headlight

      *2: Models with front fog light

      *3: Models for Europe

      *4: Models for Hong Kong

      *5: Light Emitting Diode

  3. PRECAUTION


    1. HID Headlight System


      1. When the HID headlights illuminate, a high voltage (approximately 30000 V) is applied momentarily to the bulb sockets, which could lead to a serious accident. Never connect the tester to the high voltage socket of HID headlight for measurement, as the high voltage may cause a serious accident.

      2. When inspecting the HID headlight system, in order to prevent electric shocks, make sure that water is not present, the light control switch is off, the battery terminal has been removed, and the connector of the light control ECU has been disconnected.

      3. Operate the HID headlight only after assembly has been properly completed, and never operate without bulbs installed.

      4. Do not operate the HID headlight using a power source other than that of the vehicle.

      5. If there is a defect in the HID headlight or if the headlight has suffered a shock, replace the bulb with a new one.

      6. Discharge bulbs reach high temperatures when illuminated. For this reason, the life of a bulb could be shortened if any oil comes in contact with the glass portion of a bulb. Do not touch the glass portion of a bulb with bare hands.

      7. Judgment whether to be externally poor is difficult for the bulb of the Discharge head lamp. Therefore, a quality is judged by check changing for the normal Discharge head lamp bulb, and making the light switch on.
