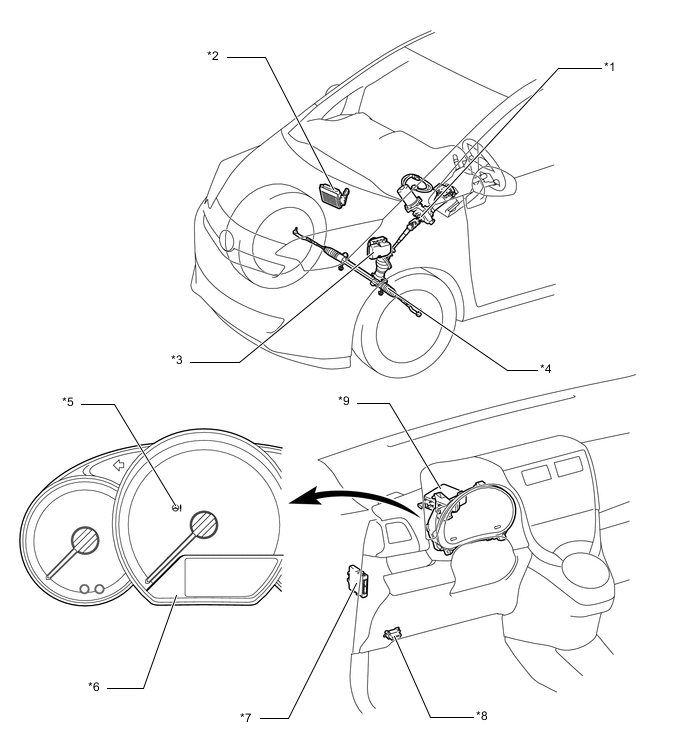

POWER STEERING SYSTEM

A005FYUE02
Text in Illustration
*1

Steering Column Assembly


  • Torque Sensor

  • Power Steering Motor

  • Reduction Mechanism

 *2 ECM
*3

Brake Actuator Assembly


  • Skid Control ECU

 *4 Steering Gear Assembly
*5 P/S Warning Light *6 Combination Meter Assembly
*7

Engine Stop and Start ECU

(Models with stop and start system)

 *8 DLC3
*9 Power Steering ECU - -
