BRAKE SYSTEM


  1. OUTLINE


    1. A tandem type master cylinder is used.

    2. A single type brake booster is used.

    3. Models without VSC, a brake assist mechanism is integrated in the brake booster.

  2. SPECIFICATION

    Master Cylinder Type Tandem
    Diameter 22.22 mm (0.87 in.)
    Manufacturer ADVICS
    Brake Booster Type Single
    Size 9 in.
    Manufacturer ADVICS

  3. MAIN FEATURES

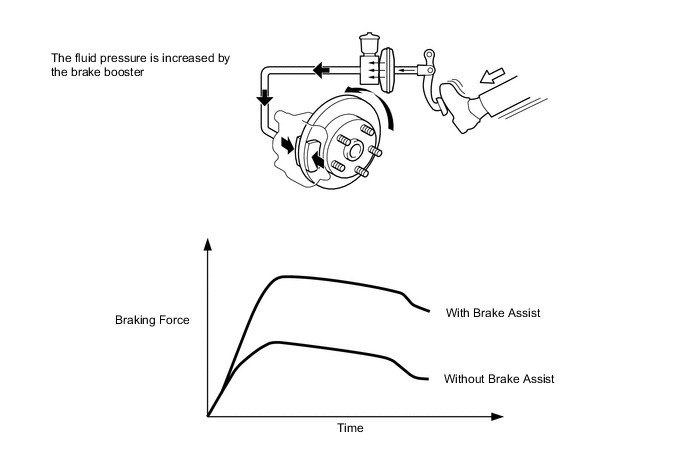

    1. The mechanical type brake assist uses the brake assist mechanism in the brake booster to mechanically activate the brake booster function in order to increase the brake force.

    2. The primary purpose of the brake assist is to provide an auxiliary brake force to assist the driver who cannot generate a large brake force during emergency braking, thus helping draw the vehicle's brake performance.

      A005G21E02
