MULTI-MODE MANUAL TRANSAXLE SYSTEM

A005FUCE02
Text in Illustration

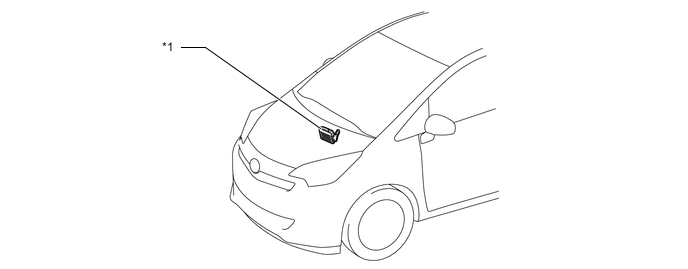

*1 ECM - -
A005G20E02
Text in Illustration

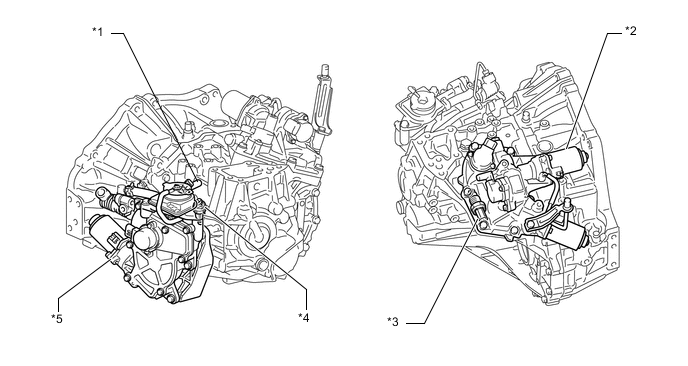

*1 Transmission Revolution Sensor *2

Shift and Select Actuator


  • Shift Stroke Sensor

  • Shift Motor

  • Select Stroke Sensor

  • Select Motor
*3 Park/Neutral Position Switch Assembly *4 Back-up Light Switch
*5

Clutch Actuator


  • Clutch Stroke Sensor

  • Clutch Motor

 - -
A005G5IE02
Text in Illustration

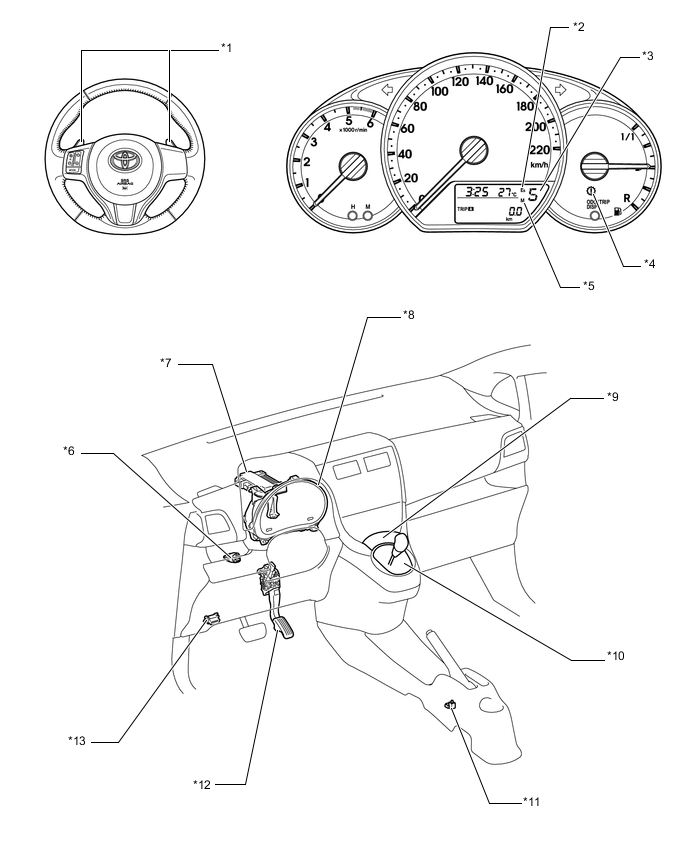

*1 Shift Paddle Switch *2 [E]/[Es] Indicator Light
*3 Shift/Gear Position Indicator Light *4 M-MT Warning Light
*5 [M] Indicator Light *6 Stop Light Switch
*7 Transmission Control ECU *8 Combination Meter Assembly
*9

Telltale light Assembly


  • Pattern Select Switch

 *10

Shift Lever Assembly


  • Shift Lever Position Sensor

  • Transmission Shift Main Switch

  • Shift Lock Solenoid

  • Pattern Select Switch
*11 Parking Brake Switch *12

Accelerator Pedal Assembly


  • Accelerator Pedal Position Sensor
*13 DLC3 - -
