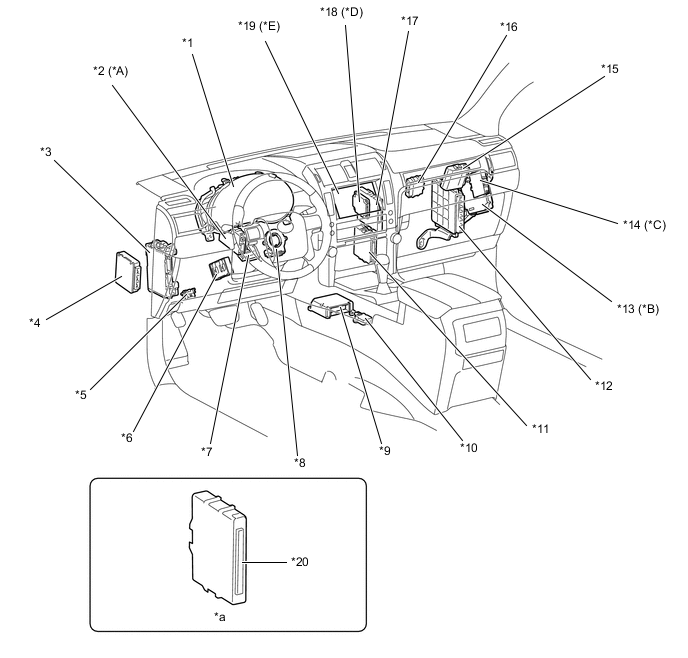

| *A |
Models with Pre-crash Safety System |
*B |
Models with Parking Assist Monitor System or Wide View Front and Side Monitor System |
| *C |
Models with LEXUS Parking Assist-sensor System |
*D |
Models with Dynamic Radar Cruise Control System |
| *E |
Models with Navigation System |
- |
- |
| *1 |
Combination Meter Assembly |
*2 |
Seat Belt Control ECU |
| *3 |
Main Body ECU (Driver Side Junction Block Assembly) |
*4 |
Suspension Control ECU |
| *5 |
DLC3 |
*6 |
Multiplex Tilt and Telescopic ECU |
| *7 |
Stabilizer Control ECU |
*8 |
Steering Angle Sensor |
| *9 |
Center Airbag Sensor Assembly |
*10 |
Yaw Rate Sensor |
| *11 |
Air Conditioning Amplifier Assembly |
*12 |
ECM |
| *13 |
Parking Assist ECU |
*14 |
Clearance Warning ECU Assembly |
| *15 |
4WD Control ECU |
*16 |
Driving Support Switch Control ECU |
| *17 |
Power Management Control ECU |
*18 |
Driving Support ECU Assembly |
| *19 |
Display and Navigation Module Display |
*20 |
Certification ECU |
| *a |
Refer to the Service Bulletin for the installation of the part. |
- |
- |
