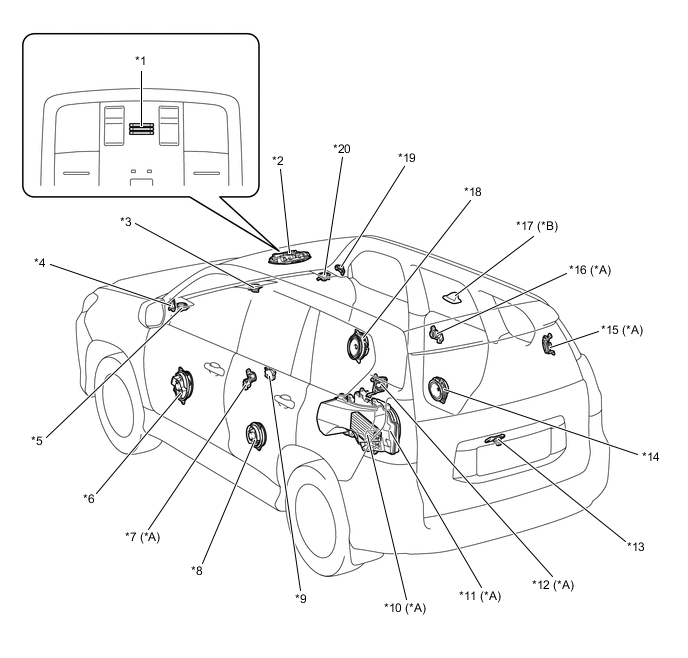

| *A |
Models with 17-speaker System |
*B |
Models with Telematics Transceiver (DCM) |
| *1 |
Telephone Microphone Assembly |
*2 |
Map Light Assembly |
| *3 |
Front No. 4 Speaker Assembly |
*4 |
Front No. 3 Speaker Assembly LH |
| *5 |
Front No. 2 Speaker Assembly LH |
*6 |
Front No. 1 Speaker Assembly LH |
| *7 |
Rear No. 2 Speaker Assembly LH |
*8 |
Rear Speaker Assembly LH |
| *9 |
Park/Neutral Start Switch Assembly |
*10 |
Stereo Component Amplifier Assembly |
| *11 |
No. 1 Speaker with Box Assembly |
*12 |
Rear Header Speaker Assembly LH |
| *13 |
Rear Television Camera Assembly |
*14 |
Rear Speaker Assembly RH |
| *15 |
Rear Header Speaker Assembly RH |
*16 |
Rear No. 2 Speaker Assembly RH |
| *17 |
Telephone Antenna Assembly |
*18 |
Front No. 1 Speaker Assembly RH |
| *19 |
Front No. 3 Speaker Assembly RH |
*20 |
Front No. 2 Speaker Assembly RH |
