NAVIGATION SYSTEM / MULTI INFORMATION SYSTEM


  1. OUTLINE


    1. Light Emitting Diodes (LEDs) are used to provide mercury-free backlighting for the multi-display assembly. This reduces the burden on the environment and ensures brightness.

    2. The map database of the navigation system is stored in the micro SD card (Disc Player Disc) in the multi-media module receiver assembly. Purchase an micro SD card (Disc Player Disc) which has the latest map database stored, and replace the old one to entirely upload the latest map database.

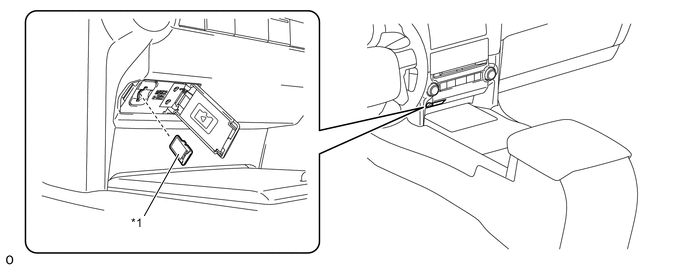

      A01N5KTC01
      *1 Micro SD Card (Disc Player Disc) - -

    3. A fuel consumption screen is provided in consideration of the environment.

    4. During route guidance, the user can confirm traffic information, such as congestions and accidents, displayed on the traffic bar on the map screen. The traffic bar shows information in the area from the current position to the destination or stopover (100 km (65 miles) at the maximum).*


      • *: Models for Europe and China

    5. Transport Protocol Experts Group (TPEG) service that shows Traffic Flow and Traffic Prediction (TFP) information on the map screen is available. This service makes it possible to show a route with consideration of TFP information and display the location, fee and status (occupied or vacant) of the parking lots.*


      • *: Models for Europe

    6. A connected service is supported. This allows the user to search new establishments or establishments that are not registered in a map and set it as a destination. In addition, it is possible to download the Point of Interest (POI) and route information that is searched on the Lexus portal site and set it as a destination or register it to the map.*


      • *: Models for Europe

    7. The navigation system supports a function used for the export/import of memory points. This function enables memory point data stored on the multi-media module receiver assembly to be transferred to another navigation system (such as another multi-media module receiver assembly) via a USB memory device.*


      • *: Models for Europe and G.C.C. Countries

    8. Google Sync Function (Models for Europe)


      1. The Google sync function is supported, enabling the user to view and operate the following Google-provided web services on the navigation system. It is required to access the internet from a tethering-compatible cellular phone or mobile Wi-Fi router, which is connected to the multi-media module receiver assembly via Bluetooth or Wi-Fi communication.


        • Google street view shows panoramic images along streets. The street view of the desired location can be downloaded to the multi-media module receiver assembly and displayed on the multi-display assembly.

        • Panoramio Photo sharing site (photos are provided with location information and comments). The panoramio photos of the desired location can be downloaded to the multi-media module receiver assembly and displayed on the multi-display assembly. Due to location information contained in the photos, it is possible to set a certain point in the displayed photo as a destination.

    9. Wi-Fi Communication (Models for Europe)


      1. A wireless LAN antenna is integrated in the multi-media module receiver assembly, enabling Wi-Fi communication to user's tethering-compatible cellular phone or mobile Wi-Fi router.

        Tech Tips


        • The Wi-Fi communication may be unavailable according to the vehicle conditions, surrounding conditions such as radio wave conditions around the multi-media module receiver assembly, the distance to the device or device conditions. In addition, during Wi-Fi communication, the communication may be cut or become unstable due to the conditions described above.

        • If a tethering-compatible cellular phone is already connected to the multi-media module receiver assembly via Bluetooth, the connection via Wi-Fi communication is not available. To connect via Wi-Fi, cancel the Bluetooth connection and then establish a Wi-Fi connection.

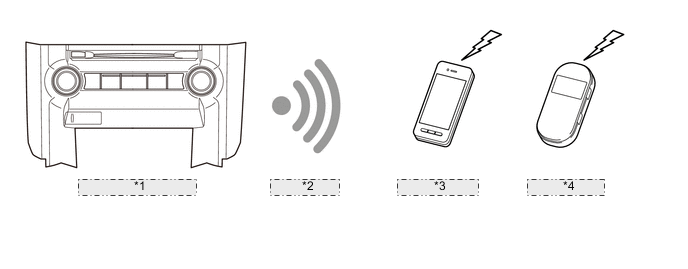

          A01N5IAE01
          *1 Multi-media Module Receiver Assembly
          *2 Connection via Wi-Fi
          *3 Cellular Phone
          *4 Mobile Wi-Fi Router

  2. SPECIFICATION

    Component Destination
    Europe G.C.C. Countries China
    Display 8.0-inch LCD Wide VGA
    Navigation ECU Manufacturer Pioneer
    Gyro Sensor Piezoelectric Ceramic Element
    Map Data Media Micro SD Card (Disc Player Disc)
    Voice Guidance Support Language Aisin AW Aisin AW DENSO
    Voice Recognition Support Language Voice Guidance English, German, French, Spanish, Italian, Portuguese, Dutch, Swedish, Norwegian, Danish, Russian, Finnish, Greek, Polish, Ukrainian, Turkish, Hungarian, Czech, Slovak, and Romanian English and Arabic Chinese
    Voice Recognition English, German, French, Spanish, Italian, Portuguese, Dutch, Swedish, Danish, Russian, Finnish, Greek, Polish, Turkish and Czech - Chinese

  3. MAIN FEATURES


    1. Connected Services (Models for Europe)


      1. The following services are available by accessing the Lexus portal site from a tethering compatible cellular phone or mobile Wi-Fi router, which is connected to the multi-media module receiver assembly via Bluetooth or Wi-Fi communication.

      2. To use these connected services, Bluetooth or Wi-Fi settings are required and a portal account are required.

      3. To get a portal account, access the Lexus portal site (URL:www.my.lexus.eu).

        Contents Outline
        Online search New establishments, such as restaurants and bars, that are not registered in the navigation system can be set as a destination.
        Importing memory points and routes Downloading via a cellular phone or mobile Wi-Fi router Memory points and routes that were searched for using a personal computer can be set as a destination and can be registered as memory points.
        Downloading from a USB memory device

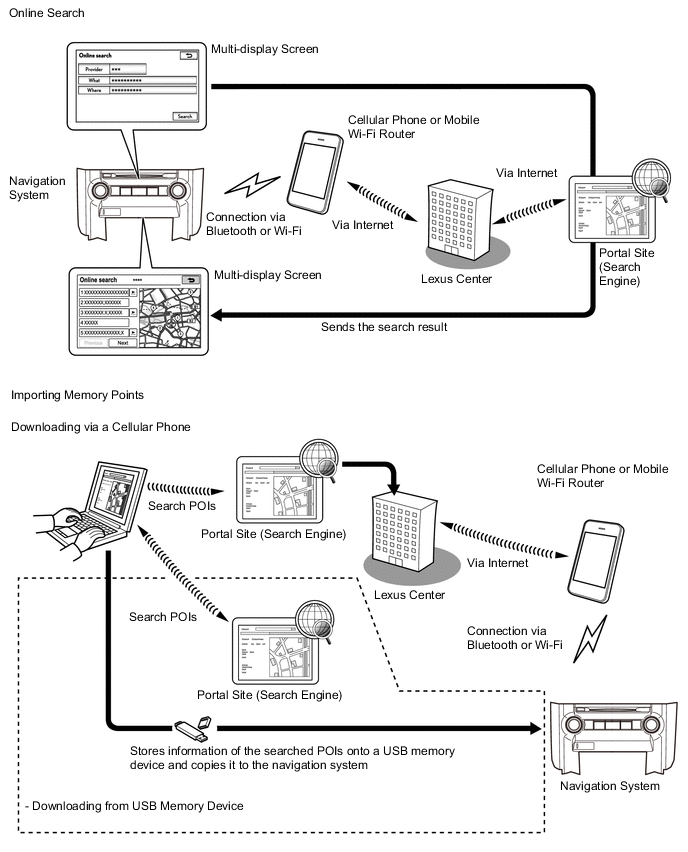

        A01N5I3E01

    2. Export/Import Memory Point Function (Models for Europe and G.C.C. Countries)


      1. Memory point data stored in the multi-media module receiver assembly can be transferred to another navigation system, enabling information sharing.

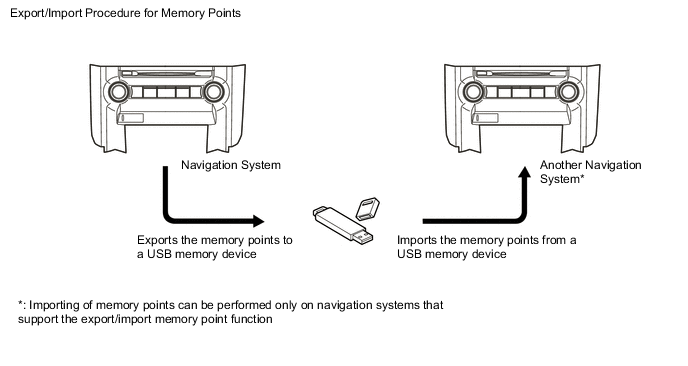

        A01N5KIE01

    3. Voice Recognition System


      1. When the voice recognition system starts operating, the commands that the system is able to recognize are displayed on the multi-display assembly.

      2. In the aim of enabling the user to operate the system with minimal spoken words, the recognition command screen is designed to show not only sample spoken words for short-cut commands, but also tabs for the major functions such as Audio*1, Navi*1 and Phone*1, *2. When a tab is selected, a detailed list of the voice recognition commands will be displayed for the corresponding function.


        • *1: Models for Europe

        • *2: Models for China

        Tech Tips

        Other functions still can be operated by voice recognition commands when a tab is selected for a specific function.

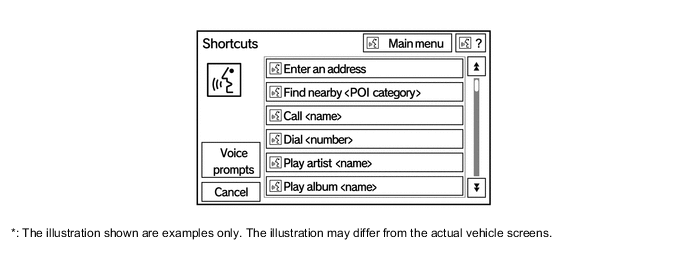

        A01N5JWE01

    4. The main functions of the multi-display assembly are listed below.

      Function Outline
      Navigation System

      Through the use of the Global Positioning System (GPS) and map data which is stored on a micro SD card, the navigation system analyzes the position of the vehicle and indicates the position on the map that is displayed on the screen.

      In addition, it is possible to use the system to register memory points and navigate to a destination.
      Audio/Video System

      Serves as the display and controls for the following:


      • Radio operation

      • CD/DVD player operation

      • Sound Library operation (Models for China)

      • Bluetooth-compatible portable player operation

      • iPod/iPhone operation

      • USB memory operation (USB type)

      • Portable audio player operation (AUX type)
      Air Conditioning System Operation and control of a part of the air conditioning system can be performed through the use of the automatic air conditioning switches displayed on the multi-display assembly.
      Hands-free System When a Bluetooth-compatible cellular phone is registered to the navigation system, the driver can make and receive calls or talk hands-free on the cellular phone by operating the switches on the screen/steering pad switch assembly.
      Speech Command System (Models with Voice Recognition System) Operates the navigation and audio systems based on voice commands.
      Parking Assist Monitor System Displays a view of the area behind the vehicle that is captured by the television camera mounted on the back door when the shift lever is moved to R.
      LEXUS Parking Assist-sensor System (Models with LEXUS Parking Assist-sensor System) Detects obstacles and displays information on the multi-display assembly to inform the driver.
      Others Fuel Consumption Screen Fuel consumption information such as average fuel consumption per minute, current fuel consumption per minute and past fuel consumption record is displayed.
      Maintenance Information

      The maintenance information function can be used to inform the driver of the inspection or replacement timing of the following items based on the calendar function and distance driven.


      • ENGINE OIL: Replace engine oil

      • OIL FILTER: Replace engine oil filter

      • ROTATION: Rotate tires

      • TYRE/Tires: Replace tires

      • BATTERY: Replace battery

      • BRAKE PAD: Replace brake pads

      • WIPERS: Replace wiper blades

      • LLC/Coolant: Replace engine coolant

      • BRAKE OIL: Replace brake fluid

      • ATF/Trans. Fluid: Replace ATF

      • SERVICE: Scheduled maintenance

      • AIR FILTER: Replace air filter

      • PERSONAL: New information items can be created separately from the provided items
      Language Select (Models for Europe and G.C.C. Countries) The language of the screen buttons, pop-up messages and the voice guidance can be changed.
      Button Color Setting The button color can be changed.
      Screen Setting This enables automatic return to the navigation screen from the audio screen.
      Keyboard Layout The keyboard layout can be changed.
      Delete Personal Data

      Registered or changed personal settings will be deleted or returned to their default conditions. For example:


      • General settings

      • Navigation settings

      • Audio settings

      • Telephone/Phone settings

      • Connected service settings (Models for Europe)
      Screen Adjustment The brightness or contrast of the screen can be adjusted to suit the brightness of the surroundings.
      Map Database Update Replace the old micro SD card with an micro SD card, which stores the latest map database to entirely update the map database.
      Diagnosis

      This menu contains the following items:


      • Failure Diagnosis


        • System Check

        • SD Check

        • Diagnosis Recorder

        • DCM Check (Models for China)

        • HDD Check (Models for China)

      • Function Check/Setting


        • Panel & Steering Switch

        • Microphone Check

        • System Sensors Check

        • Vehicle Signal

        • Sound Library Setting (Models for China)

        • HF Voice Quality Setting

        • Camera Setting

        • DAB Reception Check (Models with Digital Audio Broadcast (DAB) Tuner)

        • Sound Library Setting (Models for China)

      • Service Information


        • Program Update

        • Version Information

        • Memory point backup

        • G-BOOK Info for Contract (Models for China)

        • DCM Information (Models for China)

        • Emergency Call History (Models for China)

        • Security History (Models for China)

      • Product Information
