PROPELLER SHAFT SYSTEM


  1. OUTLINE


    1. Front Propeller Shaft


      1. A 2-joint type propeller shaft is used.

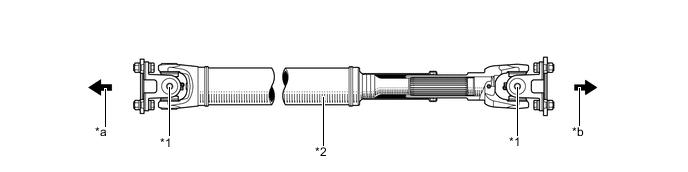

        A019QUFC01
        *1 Hooke's Joint *2 Front Propeller Shaft Assembly
        *a Front Differential Side *b Transfer Side

    2. Rear Propeller Shaft


      1. A 2-joint type propeller shaft is used.

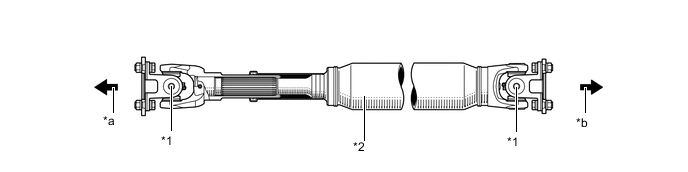

        A019QKVC01
        *1 Hooke's Joint *2 Rear Propeller Shaft Assembly
        *a Transfer Side *b Rear Differential Side
