AUTOMATIC TRANSMISSION SYSTEM

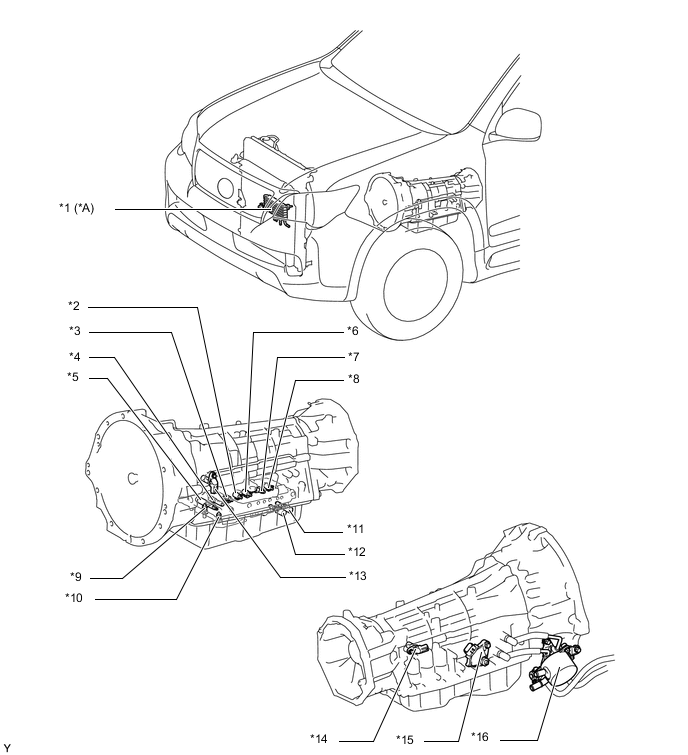

| *A | Models with Air-cooled Type ATF Cooler | - | - |
| *1 | Air-cooled Type ATF Cooler | *2 | Shift Solenoid Valve (S1) |
| *3 | Shift Solenoid Valve (SR) | *4 | Shift Solenoid Valve (SL1) |
| *5 | Line Pressure Control Solenoid Assembly (SLT) | *6 | Shift Solenoid Valve (S4) |
| *7 | Shift Solenoid Valve (S2) | *8 | Shift Solenoid Valve (S3) |
| *9 | No. 2 ATF Temperature Sensor | *10 | No. 1 ATF Temperature Sensor |
| *11 | Lock-up Control Solenoid Assembly (SLU) | *12 | Shift Solenoid Valve (SL2) |
| *13 | Transmission Revolution Sensor (NT) | *14 | Transmission Revolution Sensor (SP2) |
| *15 | Park/Neutral Position Switch Assembly | *16 | ATF Warmer |

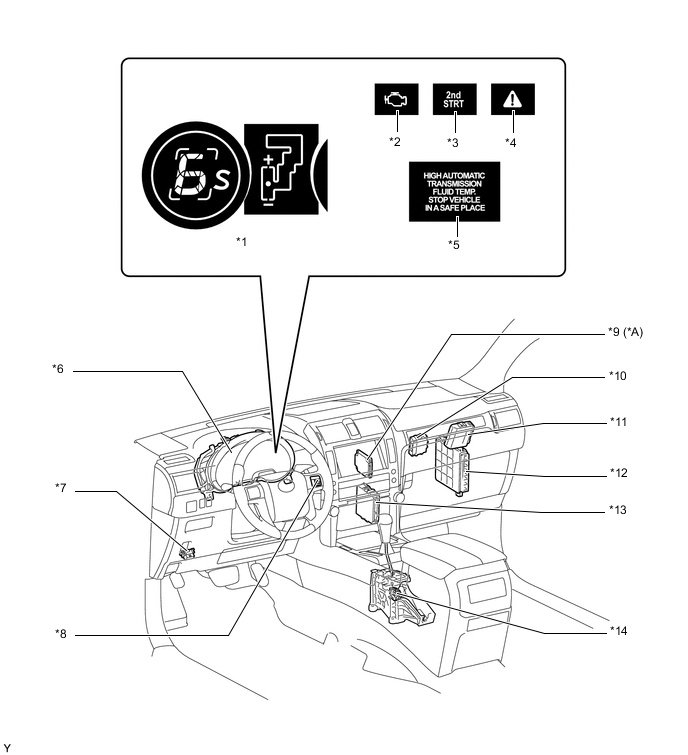

| *A | Models with Dynamic Radar Cruise Control System | - | - |
| *1 | Shift Display | *2 | MIL |
| *3 | 2nd Start Indicator Light | *4 | Master Warning Light |
| *5 | Multi-information Display | *6 | Combination Meter Assembly - Multi Buzzer |
| *7 | DLC3 | *8 | Multi-information Switch |
| *9 | Driving Support ECU Assembly | *10 | Driving Support Switch Control ECU |
| *11 | 4WD Control ECU | *12 | ECM |
| *13 | Air Conditioning Amplifier Assembly | *14 | Transmission Control Switch |
