ENGINE UNIT


  1. CONSTRUCTION


    1. A crankshaft made of forged steel, which excels in rigidity and wear resistance, is used.

    2. The crankshaft has 5 main bearing journals and 6 balance weights.

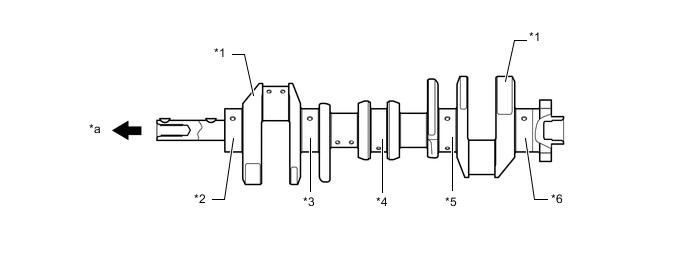

      A019QMGC01
      *1 Balance Weight *2 No. 1 Journal
      *3 No. 2 Journal *4 No. 3 Journal
      *5 No. 4 Journal *6 No. 5 Journal
      *a Engine Front - -
