ENGINE UNIT


  1. CONSTRUCTION


    1. 3-layer steel-laminate type cylinder head gaskets are used. A shim is used around the cylinder bore of each gasket to help enhance sealing performance and durability. This results in improved fuel economy, reduced consumption rate of engine oil and reduced emission of exhaust gases.

    2. The surface is coated with highly heat-resistant fluoro rubber to support high power output.

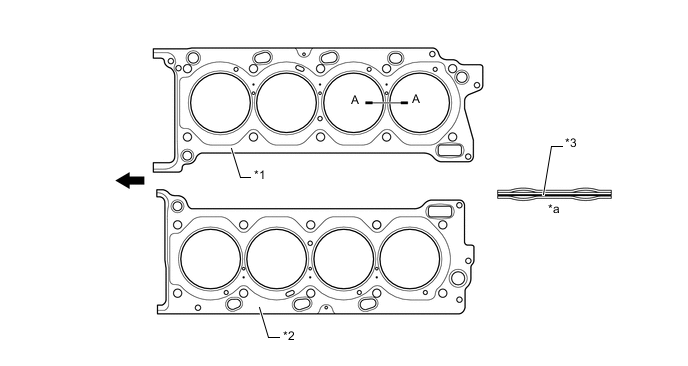

      A019QF3C02
      *1 Cylinder Head Gasket RH *2 Cylinder Head Gasket LH
      *3 Shim - -
      *a A - A Cross Section A0009RQ Engine Front
