ENGINE UNIT


  1. CONSTRUCTION


    1. A lightweight yet high-strength aluminum cylinder head cover is used.

    2. An oil delivery pipe is installed inside each cylinder head cover. This ensures lubrication to the sliding parts of the valve rocker arm sub-assemblies, thus improving reliability.

    3. Large baffle plates are built into the cylinder head covers. As a result, the speed of blowby gas flow is reduced, and the oil mist is removed from the blowby gas. Due to this, the amount of oil lost is reduced.

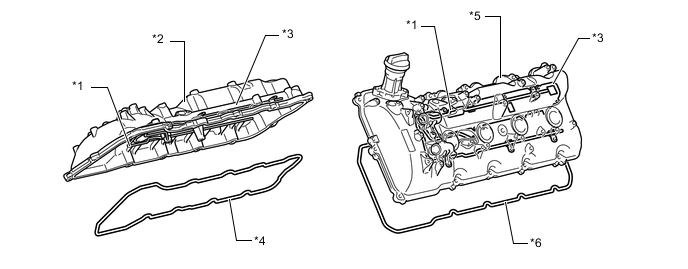

      A019QVPC02
      *1 Oil Delivery Pipe *2 Cylinder Head Cover RH
      *3 Baffle Plate *4 Cylinder Head Cover Gasket RH
      *5 Cylinder Head Cover LH *6 Cylinder Head Cover Gasket LH
