FUEL SYSTEM


  1. CONSTRUCTION


    1. The fuel delivery pipe sub-assembly is made of plastic to reduce weight.

    2. The right and left fuel delivery pipes are connected by a nylon tube.

    3. The pulsation damper is sealed with an O-ring and secured with a holder.

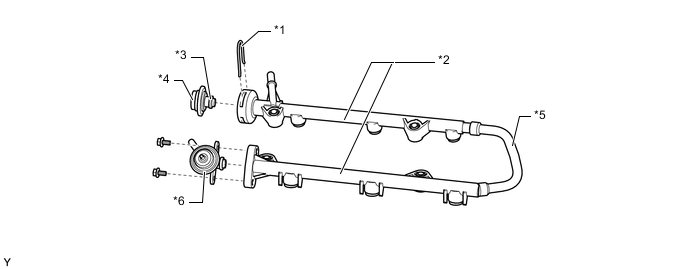

      A019QLPC01
      *1 Holder *2 Fuel Delivery Pipe
      *3 O-ring *4 Pulsation Damper
      *5 Nylon Tube *6 Pressure Regulator
